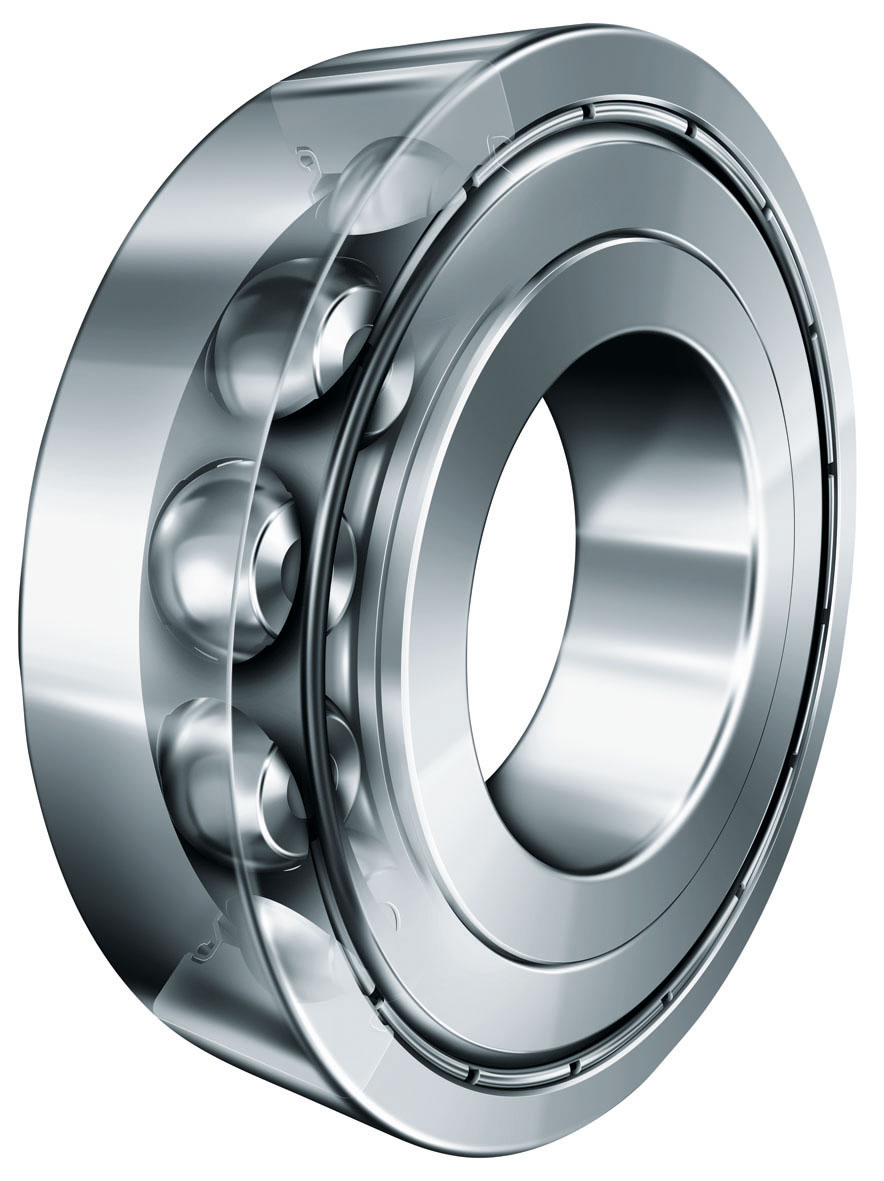

Deep Groove Ball Bearings 6900 series
Product Description:
6900 series
Bearing Number | Boundary Dimensions(mm) | Basic Load Ratings(kN) | Limiting Speeds(rpm) | Mass(Kg) | |||||
QBT | d | D | B | rs min | Cr | Cor | Grease | Oil | (Approx.) |
6900 | 10 | 22 | 6 | 0.3 | 2.7 | 1.27 | 30,000 | 36,000 | 0.009 |
6901 | 12 | 24 | 6 | 0.3 | 2.89 | 1.46 | 27,000 | 32,000 | 0.011 |
6902 | 15 | 28 | 7 | 0.3 | 3.65 | 2 | 24,000 | 28,000 | 0.016 |
6903 | 17 | 30 | 7 | 0.3 | 4.65 | 2.58 | 22,000 | 26,000 | 0.018 |
6904 | 20 | 37 | 9 | 0.3 | 6.4 | 3.7 | 19,000 | 23,000 | 0.036 |
6905 | 25 | 42 | 9 | 0.3 | 7.05 | 4.55 | 16,000 | 19,000 | 0.042 |
6906 | 30 | 47 | 9 | 0.3 | 7.25 | 5 | 14,000 | 17,000 | 0.048 |
6907 | 35 | 55 | 10 | 0.6 | 9.55 | 6.85 | 12,000 | 15,000 | 0.074 |
6908 | 40 | 62 | 12 | 0.6 | 12.2 | 8.9 | 11,000 | 13,000 | 0.11 |
6909 | 45 | 68 | 12 | 0.6 | 13.1 | 10.4 | 9,800 | 12,000 | 0.128 |
6910 | 50 | 72 | 12 | 0.6 | 13.4 | 11.2 | 8,900 | 11,000 | 0.132 |
6911 | 55 | 80 | 13 | 1 | 16 | 13.3 | 8,200 | 9,600 | 0.18 |
6912 | 60 | 85 | 13 | 1 | 16.4 | 14.3 | 7,600 | 8,900 | 0.193 |
6913 | 65 | 90 | 13 | 1 | 17.4 | 16.1 | 7,000 | 8,200 | 0.206 |
