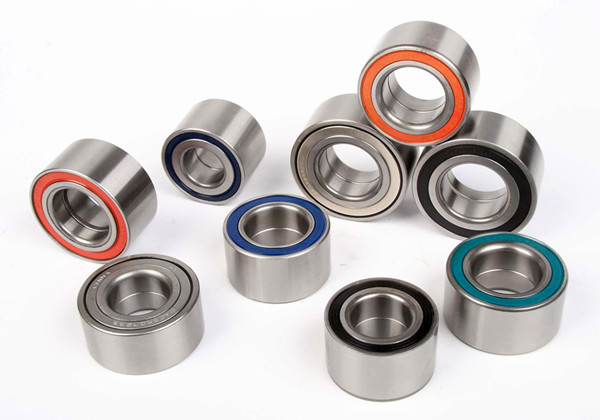

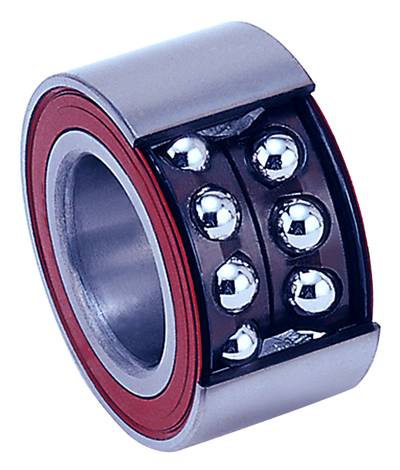

Wheel bearings

Wheel bearings

Product Name:

Wheel bearings

Model :

DAC30600337

Product Description:


Bearing No.								Dimensions(mm)				Weight (KG)
QBT	KOYO	FAG	SKF	NSK	SNR	BREDA	IRB	d	D	B	C	Weight (KG)
DAC124000183			C-00187					12	40	18.3	18.3	0.11
DAC20420030 /29		565592	56592 J22					20	42	30	29	0.18
DAC205000206		156704 320104						20	50	20.6	20.6	0.17
DAC255200206			617546A				IR-8032	25	52	20.6	20.6	0.19
DAC25520037		546467/576 467	BT2B4455-39CC VKBA869		FC12025-S01 FC12025-S01		IR-2220			37	37	0.31
DAC25520040										40	40	0.35
DAC25520042				258WD01						42	42	0.36
DAC25520043					FC12180-S02		IR-2221			43	43	0.36
DAC25520045 /43										45	43	0.35
DAC25550043					FC12271-S03		IR-2222		55	43	43	0.41
DAC25550045									55	45	45	0.46
DAC255600206 /29			BA2B633280						56	20.6	29	0.28
DAC25560032		445979	BAH5000						56	32	32	0.34
DAC25600029 /206			BA2B633272						60	29	20.6	0.33
DAC25600045					GB12439				60	45	45
DAC25620028 /17					GB10827				62	28	17	0.19
DAC25620048									62	48	48
DAC25720043									72	43	43	0.88
DAC27520045 /43		801437		27KWD02	801437			27	52	45	43	0.35
DAC27520050									52	50	50	0.38
DAC27600050			FW120	27BWD01J			IR-8053		60	50	50	0.56
DAC28580042	DAC2858W DAC2858R-KCS47 DAC28582RK	576447		28BWD03-ACA51				28	58	42	42	0.47
DAC28590038 /28									59	38	28	0.4
DAC28610042	DAC286142-AWCS40		VKBA1346	28BWD01-ACA60			IR-8549		61	42	42	0.56
DAC29530037		801023AB	VKBA3531 BTH1206AA					29	53	37	37	0.35
DAC30550026				30BWD08				30	55	26	26	0.32
DAC30550032									55	32	32
DAC30580042			VKBA1349	30KWD01-AG3					58	42	42	0.4
DAC30600037	DAC30603-72-RS	545312A 529891 AB 522372	BAHB6331-3CA		GB10970.-S05				60	37	37	0.42
DAC30600337	DAC3060W	529891AB 545312 581736	BA2B6333-13C 418780 405956A 434201B VKBA1307	30BWD07	GB10790-S05 F45721	C171	IR-8040		60.03	37	37	0.42

Bearing No.								Dimensions(mm)				Weight(KG)
QBT	KOYO	FAG	SKF	NSK	SNR	BREDA	IRB	d	D	B	C	Weight(KG)
DAC30600043 /37								30	60	43	37
DAC30620038				30BWD10					62	38	38	0.52
DAC30630042			VKBA1344	30BWD01A 30BWD01-AC70					63	42	42	0.57
DAC30630342	DAC3063W-1								63.03	42	42	0.56
DAC30640042	DAC3064W2-RKBCS8 DAC3064W2-RKB			30BWD03-ACA78	DE0776-CS46-NIN				64	42	42	0.49
DAC30670024			361971						67	24	24	0.34
DAC30680045				30BWD04-CA19					68	45	45	0.73
DAC32700038								32	70	38	38	0.62
DAC32720034									72	34	34	0.6
DAC32720045				32BWD06					72	45	45	0.6
DAC32720345				32BWD05 P5A					72.03	45	45	0.6
DAC32730054		DAC3273W							73	54	54	0.98
DAC34620037	DAC34620 037	531910 561447	BAHB3113-16B 309724					34	62	37	37	0.41
DAC34640034	DAC3464D		VKBA1382	34BWD03-ACA78					64	34	34	0.43
DAC34640037	DAC3464G 12RSCS42 DAC3464W-2RS	532066DE 540466B 805231	605124 VKBA1306 BA2B309726 309726DA	34BWD04-BCA70 34BWD11	GB10884	C490	IR-8041		64	37	37	0.47
DAC34660037		559529 580400CA 805464	636114A 479399 BAHB6361-14A	34BWD10B					66	37	37	0.5
DAC34670037									67	37	37	0.44
DAC34680037	DAC3468DW			34BWD08A					68	37	37	0.55
DAC356180040	DAC3562W							35	61.8	40	40	0.43
DAC35620031	DAC3562AW								62	31	31	0.35
DAC35620040									62	40	40	0.45
DAC35640037	DAC3564A-1		BAH0042		DE0749 /NIN				64	37	37	0.41
DAC35650035	DAC3565W-CS30	546238A	443952 BT2B445620B VKBA3496 /VKBA 1413		GB12004 FC12033-S03 FC12438 GB12438-S01	C490	IR-8042		65	35	35	0.4
DAC35650037				35BWD19E					65	37	37	0.51
DAC35660032	DAC3566		445980A BAH5001A			C389	IR-8091		66	32	32	0.42
DAC35660033			633676 BAH-0015		GB12303-S01	C199	IR-8089		66	33	33	0.43
DAC35660037	DAC35660 037	544307C(D) 581010A	BAHB311309 BAH0023		GB12136	C630	IR-8065		66	37	37	0.48
DAC35670042				35BWD24					67	42	42	0.45

Bearing No.								Dimensions(mm)				Weight(KG)
QBT	KOYO	FAG	SKF	NSK	SNR	BREDA	IRB	d	D	B	C	Weight(KG)
DAC35680037	DAC3568A-2RS	567918B 541153A 430042C 549676	BAHB311309 633697 BAHB633295B 633528F(ZZ) VKBA1315	35BWD21(4RS)	GB10679	C172	IR-8611 IR-8026	35	68	37	37	0.52
DAC35680045									68	45	45
DAC35680233 /30	DAC3568W-6CS84		VKBA1342	35BWD07A					68.02	33	30	0.47
DAC35720027									72	27	27	0.43
DAC35720228		544033	BA2B4418-32AB		GB10679	C392	IR-8028		72.02	28	28	0.49
DAC35720033	DAC357233B	548083	BA2B4467-62B BA2B4455-35AE 456162 446762B VKBA882 /VKBA1 327	XGB 40714	GB12094-S01 GB40582	C511	IR-8055		72	33	33	0.58
DAC35720233 /31	DAC357233B-1W	562686	FWB141 VKBA1343	35BWD06-ACA11 35BWD08A					72.02	33	31	0.54
DAC35720433	DAC357545-CW2R		BAHB633669 BAH0013		GB12862	C200	IR-8094		72.04	33	33	0.58
DAC35720034	DAC357234A	540763 548376A	VKBA857	35BWD01	DE0763C-S46P X1				72	34	34	0.58
DAC35720434			BAH0013D				IR-8524		72.04	34	34	0.58
DAC35720045									72	45	45	0.63
DAC35740030				3507DTN					74	30	30	0.49
DAC35760054				35BWD10 35BWD10-BCA36					76	54	54	0.95
DAC35770042	DAC3577W-2		VKBA3763						77	42	42	0.86
DAC35800026 /21		511004							80	26	21
DAC36640042				CRI-0787				36	64	42	42	0.46
DAC36680033	DAC3668AW-CS36	805172 BAH0087	FW22 VKBA1930	36BWD04					68	33	33	0.47
DAC36720033 /28									72	33	28
DAC36720034	559225		VKBA1372 /36BW D01C	36BWD01C					72	34	34	0.57
DAC36720042				36BWD03					72	42	42	0.72
DAC36760029 /27		311142 /162	440190						76	29	29	0.55
DAC37680045								37	68	45	45	0.72
DAC37720033			BAH0051B		GB40547				72	33	33	0.5
DAC37720233									72.02	33	33

Bearing No.								Dimensions(mm)				Weight(KG)
QBT	KOYO	FAG	SKF	NSK	SNR	BREDA	IRB	d	D	B	C	Weight(KG)
DAC37720037		562398	633531B BAH0012A-M5S VKBA3596 /VKBA1308	36BWD04	GB12807-S03 F113175 GB40706		IR-8066	37	72	37	37	0.59
DAC37720237		527631	BA2B63302-8CB		GB12258	C557			72.02	37	37	0.59
DAC37720437	DAC37720-437	562398A 468683CA	633531B BAH0012		GB12131-S03 GB40706(E)	C185	IR-8088		72.04	37	37	0.59
DAC37720052 /45									72	52	45	0.7
DAC37740045		541521C 816359	309946AC VKBA1301	37BWD01			IR-8513 IR- 8049		74	45	45	0.79
DAC38640036 /33								38	64	36	33	0.43
DAC38650050									65	50	50
DAC38650052 /48									65	52	48	0.49
DAC38680037				38KWD02					68	37	37
DAC38700037		ZFRTBR-GH0037	BAHB6361-93C				IR2034		70	37	37	0.56
DAC38700038	DAC3870-BWCS41 DAC3870-DWCS41		686908A	38BWD21-CA53			IR-02035		70	38	38	0.57
DAC38700040									70	40	40	0.58
DAC38710033 /30	3871W-2CS70		FW1350	38BWD09-ACA12					71	33	30	0.5
DAC38710039			VKBA3929	38BWD22					71	39	39	0.62
DAC38720034	DAC3872-ACS42		VKBA1381	38BWD04-CA60					72	34	34	0.54
DAC3870036 /33	DAC3872W-8CS81 DAC3872W-3 DAC3872W-6			38BWD12					72	36	33
DAC38720236 /33	DAC3872W-3CS72 DAC3872W-8CS72 DAC3872-WCS81		FW128 VKBA1191	38BWD12					72.02	36	33	0.56
DAC38720040	DAC3872W-10 DAC3872B12 RSCS42	575069B	FW102 FWB12 VKBA1377		DE0871 /NIN				72	40	40	0.63
DAC38730040	DAC3973-1 DAC38732-B12 RSCS53 3873W-12RSC5		VKBA3245	38BWD26E					73	40	40	0.67
DAC38740036 /33	DAC3874W-6 DAC387436 BWDS69	574795A	DAD38743-68W FW114; WB1144 VKBA1341147 BAH0041 VKBA32011	38BWD07-26G 38BWD15 38BWD16A 38BWD01-A1ACA 38BWD24 38BWD01-ACA12	38BW07 / NACHI		IR-8550 IR-02045		74	36	33	0.6
DAC38740236 /33	DAC3874E-6CS84		BHAH-0041	38BWD01A1					74.02	36	33	0.59
DAC38740040				38BWD10					74	40	40

Bearing No.								Dimensions(mm)				Weight(KG)
QBT	KOYO	FAG	SKF	NSK	SNR	BREDA	IRB	d	D	B	C	Weight(KG)
DAC38740050			FW116; FWB116	38BWD06-DCA71	DE0892NIN				74	50	50	0.85
DAC38740450		559192		38BWD06-DCA72				38	74.04	50	50	0.85
DAC38800036 /33				38BWD18					80	36	33	0.79
DAC381700037			BAHB6361-93C	38BWD19					70	37	37	0.56
DAC39680037	DAC39680 037	439622C 803374 528810 528820 540733BA	BA2B309692 BAHB311315 BAFB44733-3BD VKBA575	39BWD03-CA69 JRM3939 3968XD 39BWD02		C302	IR-8052 IR- 8111	39	68	37	37	0.48
DAC39680637		540733CA	BAHB31131-5AD				IR-2007.06		68.06	37	37	0.48
DAC39680737									68.07	37	37	0.48
DAC39680837				39BWD02J					68.08	37	37	0.48
DAC39720037	DAC3972AW4 DAC3972D 2RS	542186A 524096 581169 579794CA	BAHB311396B 309639 BAH0036 BA2B30963-9BA VKBA736 VKBA3531	39BWD01L 39BWD01 BCA81	G812776 803769 801663D	C491	IR-8085		72	37	37	0.6
DAC39720637		542186CA							72.06	37	37	0.6
DAC39740034									74	34	34	0.6
DAC39740036 /34			395418						74	36	34
DAC39740038									74	38	38	0.65
DAC39740039	BAHB6360-96A	579557 581108CA	BAHB6360-96A VKBA	39BWD05		C488	IR-8603		74	39	39	0.66
DAC39/41750 037	DAC39/417-50037	567447B	BAHB6338-15A VKBA1355		GB12399-S01	C306	IR-8530	39/ 41	75	37	37	0.62
DAC40680037								40	68	37	37
DAC40680042									68	42	42	0.51
DAC40700043	DAC4070-43W								70	43	43
DAC40720036									72	36	36	0.54
DAC40720037	DAC4072	566719 455608	BAHB3114-43B FWB130; FW130 VKBA1358 / VKBA1491		GB12320-S02	C632	IR-8095		72	37	37	0.55
DAC40720637									72.06	37	37
DAC40730055			BTH1024C						73	55	55
DAC40740036 /34	DAC4074-CWCS73 DAC4074BW			40BWD16					74	36	34	0.58
DAC40740036				40BWD15A	AU0817-1/NIN				74	36	36	0.62
DAC40740040	DAC407440	559493 /801136	FW102 BAHB6360-60C BAH0049 VKBA1950	40BWD06B	801136		IR-8668		74	40	40	0.66

Bearing No.								Dimensions(mm)				Weight(KG)
QBT	KOYO	FAG	SKF	NSK	SNR	BREDA	IRB	d	D	B	C	Weight(KG)
DAC40740042	DAC4074W-3			40BWD12-CA88				40	74	42	42	0.71
DAC40750037		559494	BAHB633966E BAH0086 VKBA1480				IR-8593		75	37	37	0.62
DAC40760033 /28		539166AB	474743				IR8110		76	33	28	0.54
DAC40760041 /38	DAC407641 2RS	559226	FW124VK Ba1480	40BWD05			IR-8583		76	41	38	0.7
DAC40800036 /34	DAC4080-MICS68M		BAHB636187 CFW101BAH B636187C/A	40BWD14 40BWD07A	JWB3022				80	36	34	0.74
DAC408000302		523854	440320H		Y44FB1039 4S01	C510	IR-8006		80	30.2	30.2	0.68
DAC40800031			BA2B44546-9BA		GB12088-S01	C402	IR-8062		80	31	31	0.65
DAC408000381		534682B	443096B						80	38.1	38.1	0.8
DAC40800036									80	36	36
DAC40800045 /44									80	45	44	0.89
DAC40820040									82	40	40	0.8
DAC408402538					GB40250-S01				84.025	38	38	0.97
DAC40840034									84	34	34	0.94
DAC40840038					GB40250				84	38	38	0.96
DAC40840040									84	40	40
DAC401080032 /17			BA2B445533 495333		TGB10872		IR-8048		108	32	17	1.04
DAC41680040 /35				41KWD01-G3CA54				41	68	40	35	1.06
DAC42720038	DU4272C	521771 533953		BAHB186-6047A				42	72	38	38	0.56
DAC42720038 /35			VKBA3235	42KWD02-AG3 Ca123					72	38	35	0.52
DAC42750037	DAC4275-BW2RS DAC4275	533953 545495D 521771	BA2B633457 BAHB311424A 309245 603694A 633196 BAH0059C		GB12010	C034	IR-8061 IR-8509		75	37	37	0.59
DAC42760033		555801		42BWD12					76	33	33	0.65
DAC42760037 /35									76	37	35	0.56
DAC42760038 /35			FW119	42WD06-CS98					76	38	35	0.62
DAC42760038			VKBA1999						76	38	38
DAC42760039		579102A	FW115FWB-115				4T-CRI- 0846		76	39	39	0.62
DAC42760040 /37	DAC427640 2RSF	547059 547059A	909042BA 2B30976BA	42BWD02			IR-8112		76	40	37	0.64
DAC42770039					XGB4088-S01				77	39	39

Bearing No.								Dimensions(mm)				Weight(KG)
QBT	KOYO	FAG	SKF	NSK	SNR	BREDA	IRB	d	D	B	C	Weight(KG)
DAC42780038	DAC4278A 2RS			42BWD09				42	78	38	38	0.7
DAC42780040									78	40	40	0.66
DAC42780041 /38									78	41	38	0.75
DAC428000302			633188				IR-8515		80	30.2	30.2
DAC42800036 /34	DAC4080MA		BAH0117	42BWD13					80	36	34	0.81
DAC42800037			BAHB633-770 BAH0004	42BWD08					80	37	37	0.7
DAC42800042	DAC4280B 2RS		BA2B309-609AD						80	42	42	0.81
DAC428000342		527243C 582226	305988 309609AD BA2B3096-09AD						80.03	42	42	0.82
DAC42800045	DAC4280W-2		BAH0028 VKBA1948	42BW11-CA56					80	45	45	0.86
DAC42820036	DAC4282	561481 588226	BA2B446047 446047CA FK.FWB1 VKBA915		GB12163-S04 GB12875 GB40574				82	36	36	0.77
DAC42820037		565636	BAHB3114-13A		GB12269	C305	IR-8090		82	37	37	0.79
DAC42840036		564727	BA2BA444-090AB		GB10857-S02	C521	IR-8039		84	36	36	0.84
DAC42840037									84	37	37	0.91
DAC42840039		543359B	440090 VKBA909		GB1072-S02	N558	IR-8010		84	39	39	0.93
DAC4284030 039									84.03	39	39	0.93
DAC43600050 /45				43BWD03-CA133				43	60	50	45
DAC43760043				43BWD12A					76	43	43	0.71
DAC43770042 /38									77	42	38	0.64
DAC43790041 /38	DAC4379W		VKBA3246	43BWD08					79	41	38	0.9
DAC43790041									79	41	41
DAC43790045				43BWD13A					79	45	45	0.84
DAC43800038		579943B	VKBA3449 VKBA3450				IR8667		80	38	38	0.75
DAC43800050 /45	DAC4380-ACS69	567519A 800941C	BAH0011A(D) VKBA3215	43BWD03-CA133					80	50	45	0.96
DAC43820045	DAC4382W-3 DAC4382W-3CF79		FW153 VKBA3308 BAH 0032	43BWD06B					82	45	45	0.96
DAC43840044			VKBA3250						84	44	44
DAC43850037			VKBA3427						85	37	37
DAC43/45820 037		567519A 800941C	BAHB6338-14A BAH0011AD					43/ 45	82	37	37	0.76
DAC43/45008 537								43/ 45	85	37	37	0.8
DAC44825037					GB40246-S07		IR8618	44	82.5	37	37	0.73

Bearing No.								Dimensions(mm)				Weight(KG)
QBT	KOYO	FAG	SKF	NSK	SNR	BREDA	IRB	d	D	B	C	Weight(KG)
DAC44840042 /40								44	84	42	40	0.9
DAC44850023		4209ATN9						44	85	23	23	0.54
DAC45800045		564725AB	311363	45BWD06				45	80	45	45	0.8
DAC45800045 /44									80	45	44	0.95
DAC45830045									83	45	45	0.6
DAC45840039	DAC458439-BW	547103E 43BWD03	BAHB3097-97C BAHB6338-09AC		GB40264-S01 GB12398-S02 GB40549	C657	IR-8572 IR-8529		84	39	39	0.85
DAC45840041 /39	DAC4584DW			45BWD03 45BW8441K					84	41	39	0.85
DAC45840042 /40			B-DE0994	45BWD07B 45BWD09					84	42	40	0.9
DAC45840042									84	42	42	0.9
DAC45840045				45BWD10					84	45	45	0.98
DAC45840053									84	53	53
DAC458500302	DAC2004								85	30.2	30.2	0.63
DAC45850041		580191	BAHB633960			C384			85	41	41	0.89
DAC45850048 /43									85	48	43	1
DAC45850051									85	51	51	1
DAC45880039									88	39	39
DAC45880045									88	45	45	1.15
DAC47810053			FW154					47	81	53	53	0.95
DAC47850045			559431A						85	45	45
DAC47880055				47KWD02					88	55	55
DAC48820037 /33								48	82	37	33	0.82
DAC48890044 /42				48BWD01				48	89	44	42	1.07
DAC49840043		25469C						49	84	43	43	0.84
DAC49840048	BTHB329129	DU4984-7	BTHB3291-29DE VKBA1467						84	48	48	0.89
DAC49840050				49BWD02-A-La101					84	50	50
DAC49880046		572506E		49BWD01b		C467			88	46	46	1.05
DAC49900045									90	45	45
DAC50900034		528514	633007C					50	90	34	34	0.83
DAC50900040								50	90	40	40	0.98
DAC54960051	DE5496-5							54	96	51	51
DAC55900060			BTH1011					55	90	60	60	1.5
DAC56880040 /35									88	40	35
DAC55900052 /40									90	52	40
DAC55900054 /39									90	54	39
DAC55900060			BTH1011AB						90	60	60

Related Products :

Portugues

Russian

Links:

Facebook | Twitter | Linkedin | Google+ |
