Cylindrical Roller Bearings
Product Name:
Cylindrical Roller Bearings
Model :
N series, NJ series, NU Series, NUP Series, NNU series
:
:

Product Description:


timg (10).jpg满装圆柱滚子轴承1.jpg

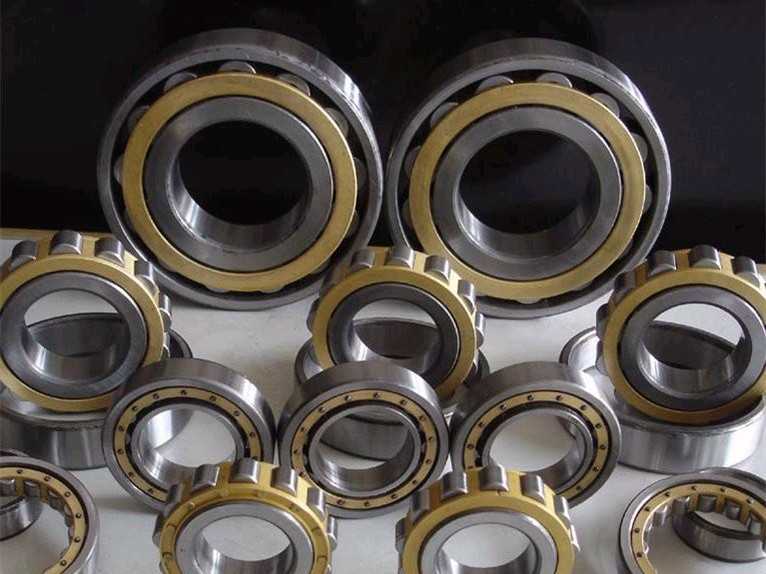

Cylindrical roller bearings are separable bearings, installation and removal very easy. Divided into single row cylindrical roller bearings, double row and four columns.

Rolling element bearings installed in accordance with the different number of columns, cylindrical roller shaft Commitment can be divided into single row, double row and multi-row cylindrical roller bearings. One application is more cage row cylindrical roller bearings. In addition, single row or double row full complement roller and other structures of cylindrical roller bearings.

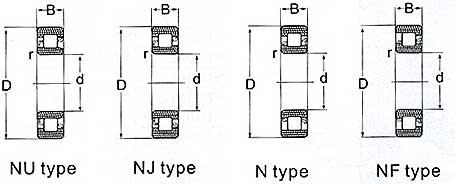

Single row cylindrical roller bearings under the ring ribs divided into N-type, NU type, NJ-type, NF-type and NUP type, etc.. Cylindrical roller bearings to bear the radial load capacity, according to the structure of ring ribs to withstand a certain one-way or two-way axial load.

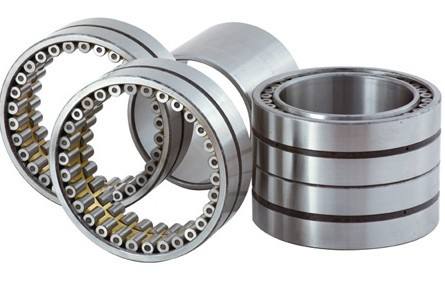

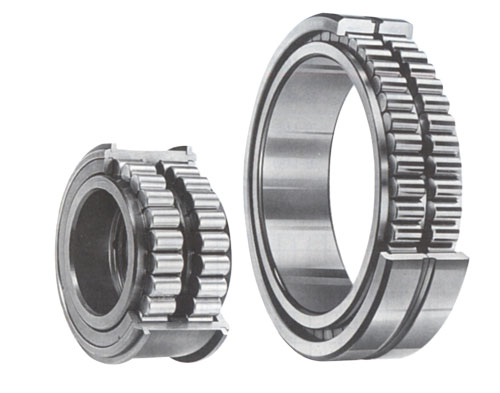

NN and NNU type double row cylindrical roller bearings, compact structure, strong rigidity, load capacity, deformation under load is small, mostly used for machine tool spindle bearing. FC, FCD, FCDP type four-row cylindrical roller bearings can bear greater radial load, more for rolling mill and other heavy machinery.

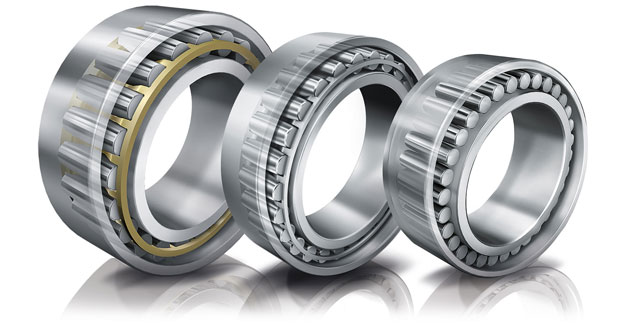

Cylindrical roller bearings: high-speed running can bear heavier radial load, a separate EC type cylindrical roller bearings designed to optimize the internal curve a can be improved radial and axial load bearing capacity, while improving on the angle and alignment errors and improve the lubricating ability to regulate the situation, omitted the full cage roller bearings can have a maximum number of rollers. In very heavy duty and medium-speed condition.



Industrial Applications:

Cylindrical roller bearings are mainly used motors, machine tools, oil, mill loading and unloading machinery and industrial machinery.



The parameters:

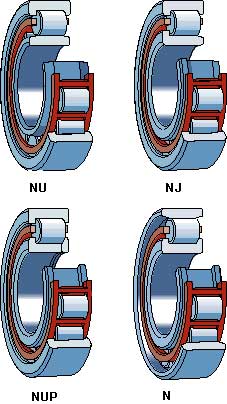

N Design
Inner ring has two integral flanges, the outer ring without flanges. Axis relative to the bearing of the axial displacement in both directions within the bearing in the bearing. Therefore, these bearings for non-locating bearing.



NU Design
NU design of bearing outer ring has two integral flanges, without inner flange. Axis relative to the bearing of the axial displacement in both directions within the bearing in the bearing. Therefore, these bearings for non-locating bearing. Because of the manufacturing and maintenance reasons, expressed in number of drawings of large bearing NU design, two outer flange is not necessarily integral, but will adopt the form of loose with the flange ring.



NJ Design
There are two integral outer flange, an integral inner flange. Therefore, these bearings for shaft in one direction on the axial location.



NUP Design
There are two integral outer flange, an inner ring and an integral flange with the flange ring loose form of non-integral flange. These bearings can be used as locating bearing, can provide shaft in both directions on the axial location.
