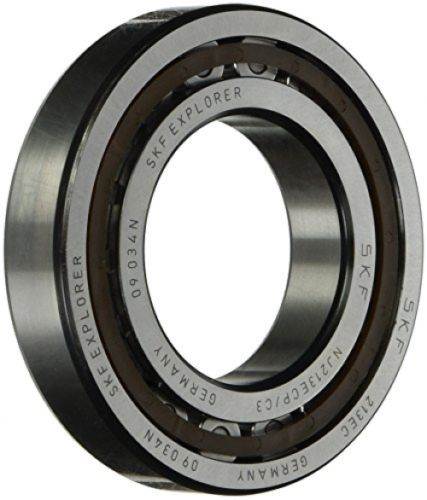

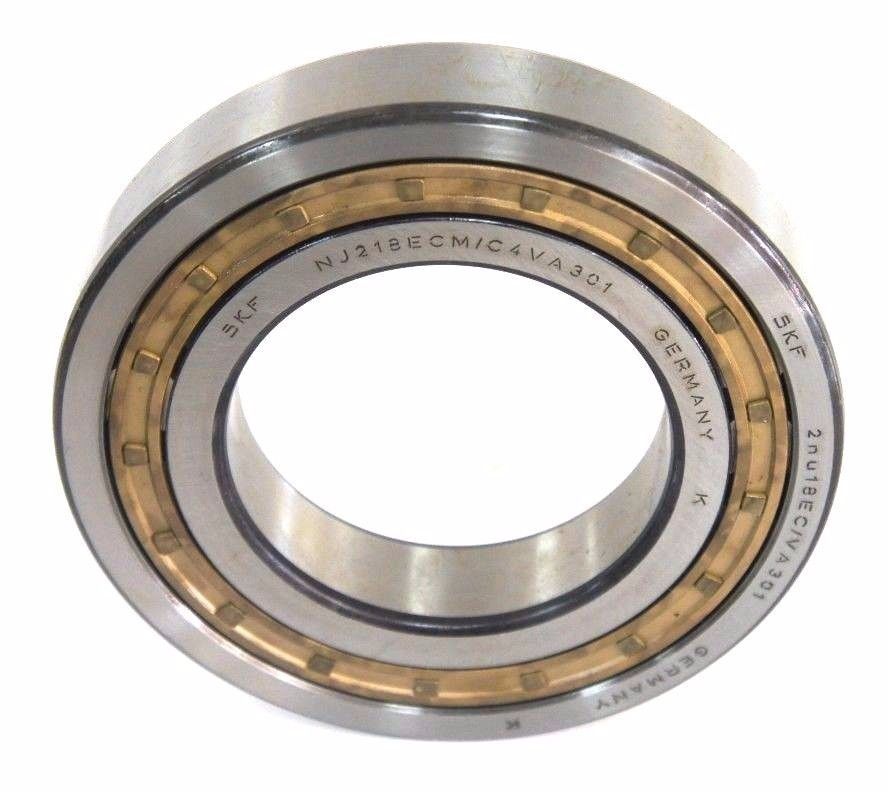

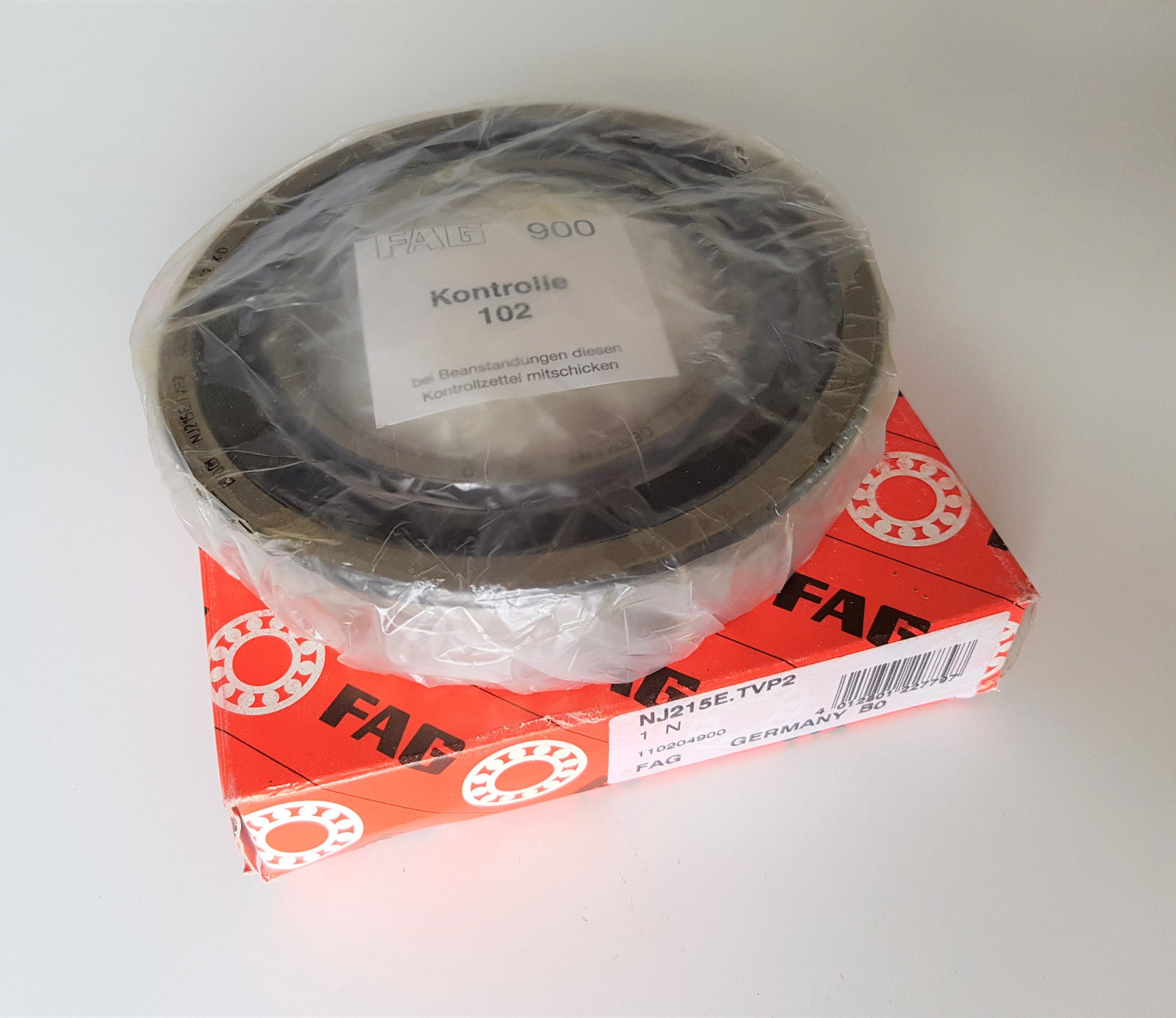

Cylindrical Roller Bearings NU.NJ 10 series
Bearing Number Boundary dimensions(mm) Basic load ratings(kN) Limiting speeds(rpm) Mass(Kg) QBT d D B rs min rs1 min Cr Cor Grease Oil (Approx.) NU1005 NJ1005 25 47 12 0.6 0.3 15.1 14.1 16,000 19,000 0.092 NU1006 NJ1006 30 55 13 1 0.6 19.7 19.6 14,000 16,000 0.13 NU1007 NJ1007 35 63 14 1 0.6 22.6 23.2 12,000 15,000 0.179 NU1008 NJ1008 40 68 15 1 0.6 27.3 29 11,000 13,000 0.22 NU1009 NJ1009 45 75 16 1 0.6 31 34 9,900 12,000 0.28 NU1010 NJ1010 50 80 16 1 0.6 32 36 8,900 11,000 0.295 NU1011 NJ1011 55 90 18 1.1 1 37.5 44 8,200 9,700 0.442 NU1012 NJ1012 60 95 18 1.1 1 40 48.5 7,500 8,800 0.474 NU1013 NJ1013 65 100 18 1.1 1 41 51 7,000 8,200 0.485 NU1014 NJ1014 70 110 20 1.1 1 58.5 70.5 6,500 7,600 0.699 NU1015 NJ1015 75 115 20 1.1 1 60 74.5 6,100 7,100 0.738 NU1016 NJ1016 80 125 22 1.1 1 72.5 90.5 5,700 6,700 0.98 NU1017 NJ1017 85 130 22 1.1 1 74.5 95.5 5,400 6,300 1.03 NU1018 NJ1018 90 140 24 1.5 1.1 88 114 5,100 5,900 1.33 NU1019 NJ1019 95 145 24 1.5 1.1 90.5 120 4,800 5,600 1.4 NU1020 NJ1020 100 150 24 1.5 1.1 93 126 4,600 5,400 1.45 NU1021 NJ1021 105 160 26 2 1.1 105 142 4,300 5,100 1.84 NU1022 NJ1022 110 170 28 2 1.1 131 174 4,100 4,800 2.33 NU1024 NJ1024 120 180 28 2 1.1 139 191 3,800 4,400 2.44 NU1026 NJ1026 130 200 33 2 1.1 172 238 3,400 4,000 3.69
Cylindrical Roller Bearings NU.NJ 2 series Bearing Number Boundary Dimensions(mm) Basic Load Ratings(kN) Limiting Speeds(rpm) Mass(Kg) QBT d D B rs min rs1 min Cr Cor Grease Oil (Approx.) NU204E NJ204E 20 47 14 1 0.6 25.7 22.6 15,000 18,000 0.122 NU205E NJ205E 25 52 15 1 0.6 29.3 27.7 13,000 15,000 0.151 NU206E NJ206E 30 62 16 1 0.6 39 37.5 11,000 13,000 0.226 NU207E NJ207E 35 72 17 1.1 0.6 50.5 50 9,500 11,000 0.327 NU208 NJ208 40 80 18 1.1 1.1 43.5 43 9,400 11,000 0.378 NU208E NJ208E 40 80 18 1.1 1.1 55.5 55.5 8,500 10,000 0.426 NU209 NJ209 45 85 19 1.1 1.1 46 47 8,400 9,900 0.432 NU209E NJ209E 45 85 19 1.1 1.1 63 66.5 7,600 9,000 0.495 NU210 NJ210 50 90 20 1.1 1.1 48 51 7,600 9,000 0.47 NU210E NJ210E 50 90 20 1.1 1.1 66 72 6,900 8,100 0.54 NU211 NJ211 55 100 21 1.5 1.1 58 62.5 6,900 8,200 0.638 NU211E NJ211E 55 100 21 1.5 1.1 82.5 93 6,300 7,400 0.718 NU212 NJ212 60 110 22 1.5 1.5 68.5 75 6,400 7,600 0.818 NU212E NJ212E 60 110 22 1.5 1.5 97.5 107 5,800 6,800 0.923 NU213 NJ213 65 120 23 1.5 1.5 84 94.5 5,900 7,000 1.02 NU213E NJ213E 65 120 23 1.5 1.5 108 119 5,400 6,300 1.21 NU214 NJ214 70 125 24 1.5 1.5 83.5 95 5,500 6,500 1.12 NU214E NJ214E 70 125 24 1.5 1.5 119 137 5,000 5,900 1.3 NU215 NJ215 75 130 25 1.5 1.5 96.5 111 5,100 6,000 1.23 NU215E NJ215E 75 130 25 1.5 1.5 130 156 4,700 5,500 1.41 NU216 NJ216 80 140 26 2 2 106 122 4,800 5,700 1.5 NU216E NJ216E 80 140 26 2 2 139 167 4,400 5,100 1.67 NU217 NJ217 85 150 28 2 2 120 140 4,500 5,300 1.87 NU217E NJ217E 85 150 28 2 2 167 199 4,100 4,800 2.11 NU218 NJ218 90 160 30 2 2 152 178 4,300 5,000 2.3 NU218E NJ218E 90 160 30 2 2 182 217 3,900 4,600 2.44 NU219 NJ219 95 170 32 2.1 2.1 166 195 4,000 4,700 2.78 NU219E NJ219E 95 170 32 2.1 2.1 220 265 3,600 4,300 3.02 NU220 NJ220 100 180 34 2.1 2.1 183 217 3,800 4,500 3.33 NU220E NJ220E 100 180 34 2.1 2.1 249 305 3,500 4,100 3.66 NU221 NJ221 105 190 36 2.1 2.1 201 241 3,600 4,300 3.95 NU222 NJ222 110 200 38 2.1 2.1 240 290 3,400 4,000 4.63 NU224 NJ224 120 215 40 2.1 2.1 260 320 3,200 3,700 5.57 NU224E NJ224E 120 215 40 2.1 2.1 335 420 2,900 3,400 5.97 NU226 NJ226 130 230 40 3 3 270 340 2,900 3,400 6.3 NU226E NJ226E 130 230 40 3 3 365 455 2,600 3,100 6.9 NU228 NJ228 140 250 42 3 3 310 400 2,700 3,100 7.88 NU228E NJ228E 140 250 42 3 3 395 515 2,400 2,800 8.73 NU230 NJ230 150 270 45 3 3 345 435 2,500 2,900 9.92 NU230E NJ230E 150 270 45 3 3 450 595 2,200 2,600 11
Cylindrical Roller Bearings NU.NJ 22 series Bearing Number Boundary dimensions(mm) Basic load ratings(kN) Limiting speeds(rpm) Mass(Kg) QBT d D B rs min rs1 min Cr Cor Grease Oil (Approx.) NU2204E NJ2204E 20 47 18 1 0.6 30.5 28.3 14,000 16,000 0.158 NU2205E NJ2205E 25 52 18 1 0.6 35 34.5 11,000 13,000 0.186 NU2206E NJ2206E 30 62 20 1 0.6 49 50 9,700 11,000 0.297 NU2207E NJ2207E 35 72 23 1.1 0.6 61.5 65.5 8,500 10,000 0.455 NU2208 NJ2208 40 80 23 1.1 1.1 58 62 8,500 10,000 0.49 NU2208E NJ2208E 40 80 23 1.1 1.1 72.5 77.5 7,600 8,900 0.552 NU2209 NJ2209 45 85 23 1.1 1.1 61.5 68 7,600 9,000 0.53 NU2209E NJ2209E 45 85 23 1.1 1.1 76 84.5 6,800 8,000 0.6 NU2210 NJ2210 50 90 23 1.1 1.1 64 73.5 6,900 8,100 0.571 NU2210E NJ2210E 50 90 23 1.1 1.1 79.5 91.5 6,200 7,300 0.652 NU2211 NJ2211 55 100 25 1.5 1.1 75.5 87 6,300 7,400 0.773 NU2211E NJ2211E 55 100 25 1.5 1.1 97 114 5,600 6,600 0.968 NU2212 NJ2212 60 110 28 1.5 1.5 96 116 5,800 6,800 1.06 NU2212E NJ2212E 60 110 28 1.5 1.5 131 157 5,200 6,100 1.21 NU2213 NJ2213 65 120 31 1.5 1.5 120 149 5,400 6,300 1.4 NU2213E NJ2213E 65 120 31 1.5 1.5 149 181 4,800 5,600 1.6 NU2214 NJ2214 70 125 31 1.5 1.5 119 151 5,000 5,900 1.47 NU2214E NJ2214E 70 125 31 1.5 1.5 156 194 4,500 5,200 1.7 NU2215 NJ2215 75 130 31 1.5 1.5 130 162 4,700 5,500 1.55 NU2215E NJ2215E 75 130 31 1.5 1.5 162 207 4,200 4,900 1.79 NU2216 NJ2216 80 140 33 2 2 147 186 4,400 5,100 1.93 NU2216E NJ2216E 80 140 33 2 2 186 243 3,900 4,600 2.12 NU2217 NJ2217 85 150 36 2 2 170 218 4,100 4,800 2.44 NU2217E NJ2217E 85 150 36 2 2 217 279 3,700 4,300 2.68 NU2218 NJ2218 90 160 40 2 2 197 248 3,900 4,600 3.1 NU2218E NJ2218E 90 160 40 2 2 242 315 3,500 4,100 3.33 NU2219 NJ2219 95 170 43 2.1 2.1 230 298 3,600 4,300 3.79 NU2219E NJ2219E 95 170 43 2.1 2.1 286 370 3,300 3,800 4.14 NU2220 NJ2220 100 180 46 2.1 2.1 258 340 3,500 4,100 4.57 NU2220E NJ2220E 100 180 46 2.1 2.1 335 445 3,100 3,600 5.01 NU2222 NJ2222 110 200 53 2.1 2.1 320 415 3,100 3,700 6.56 NU2222E NJ2222E 110 200 53 2.1 2.1 385 515 2,800 3,300 7.4 NU2224 NJ2224 110 200 38 2.1 2.1 293 365 3,100 3,700 4.27 NU2224E NJ2224 120 215 58 2.1 2.1 350 460 2,900 3,400 8.19 NU2224E NJ2224E 120 215 58 2.1 2.1 450 620 2,600 3,000 9.18 NU2226 NJ2226 130 230 64 3 3 380 530 2,600 3,100 10.2 NU2226E NJ2226E 130 230 64 3 3 530 735 2,300 2,700 11.8 NU2228 NJ2228 140 250 68 3 3 445 635 2,400 2,800 12.9 NU2228E NJ2228E 140 250 68 3 3 575 835 2,100 2,500 15.8 NU2230 NJ2230 150 270 73 3 3 500 710 2,200 2,600 16.3 NU2230E NJ2230E 150 270 73 3 3 660 980 2,000 2,400 19.7
Cylindrical Roller Bearings NU.NJ 3 series Bearing Number Boundary dimensions(mm) Basic load ratings(kN) Limiting speeds(rpm) Mass(Kg) QBT d D B rs min rs1 min Cr Cor Grease Oil (Approx.) NU304E NJ304E 20 52 15 1.1 0.6 31.5 26.9 13,000 15,000 0.176 NU305E NJ305E 25 62 17 1.1 1.1 41.5 37.5 11,000 13,000 0.275 NU306E NJ306E 30 72 19 1.1 1.1 53 50 9,300 11,000 0.398 NU307E NJ307E 35 80 21 1.5 1.1 71 71 8,100 9,600 0.545 NU308 NJ308 40 90 23 1.5 1.5 58.5 57 8,000 9,400 0.658 NU308E NJ308E 40 90 23 1.5 1.5 83 81.5 7,200 8,500 0.754 NU309 NJ309 45 100 25 1.5 1.5 74 71 7,200 8,400 0.877 NU309E NJ309E 45 100 25 1.5 1.5 97.5 98.5 6,500 7,600 0.996 NU310 NJ310 50 110 27 2 2 87 86 6,500 7,700 1.14 NU310E NJ310E 50 110 27 2 2 110 113 5,900 6,900 1.3 NU311 NJ311 55 120 29 2 2 111 111 5,900 7,000 1.45 NU311E NJ311E 55 120 29 2 2 137 143 5,300 6,300 1.65 NU312 NJ312 60 130 31 2.1 2.1 124 126 5,500 6,500 1.8 NU312E NJ312E 60 130 31 2.1 2.1 150 157 4,900 5,800 2.05 NU313 NJ313 65 140 33 2.1 2.1 135 139 5,100 6,000 2.23 NU313E NJ313E 65 140 33 2.1 2.1 181 191 4,600 5,400 2.54 NU314 NJ314 70 150 35 2.1 2.1 158 168 4,700 5,500 2.71 NU314E NJ314E 70 150 35 2.1 2.1 205 222 4,200 5,000 3.1 NU315 NJ315 75 160 37 2.1 2.1 190 205 4,400 5,200 3.28 NU315E NJ315E 75 160 37 2.1 2.1 240 263 4,000 4,700 3.74 NU316 NJ316 80 170 39 2.1 2.1 190 207 4,100 4,800 3.86 NU316E NJ316E 80 170 39 2.1 2.1 256 282 3,700 4,400 4.22 NU317 NJ317 85 180 41 3 3 212 228 3,900 4,600 4.54 NU317E NJ317E 85 180 41 3 3 291 330 3,500 4,100 4.81 NU318 NJ318 90 190 43 3 3 240 265 3,700 4,300 5.3 NU318E NJ318E 90 190 43 3 3 315 355 3,300 3,900 5.72 NU319 NJ319 95 200 45 3 3 259 285 3,400 4,000 6.13 NU319E NJ319E 95 200 45 3 3 335 385 3,100 3,600 6.62 NU320 NJ320 100 215 47 3 3 299 335 3,300 3,800 7.49 NU320E NJ320E 100 215 47 3 3 380 425 2,900 3,500 8.57 NU321 NJ321 105 225 49 3 3 320 360 3,100 3,700 8.53 NU322 NJ322 110 240 50 3 3 360 400 3,000 3,500 10 NU322E NJ322E 110 240 50 3 3 450 525 2,700 3,100 11.1 NU324 NJ324 120 260 55 3 3 450 510 2,700 3,200 12.8 NU324E NJ324E 120 260 55 3 3 530 610 2,400 2,800 13.9 NU326 NJ326 130 280 58 4 4 560 665 2,500 2,900 17.4 NU326E NJ326E 130 280 58 4 4 615 735 2,200 2,600 19.4 NU328 NJ328 140 300 62 4 4 615 745 2,300 2,700 21.2 NU328E NJ328E 140 300 62 4 4 665 795 2,100 2,400 23.2 NU330 NJ330 150 320 65 4 4 665 805 2,100 2,500 25.3 NU330E NJ330E 150 320 65 4 4 760 920 1,900 2,300 28.4

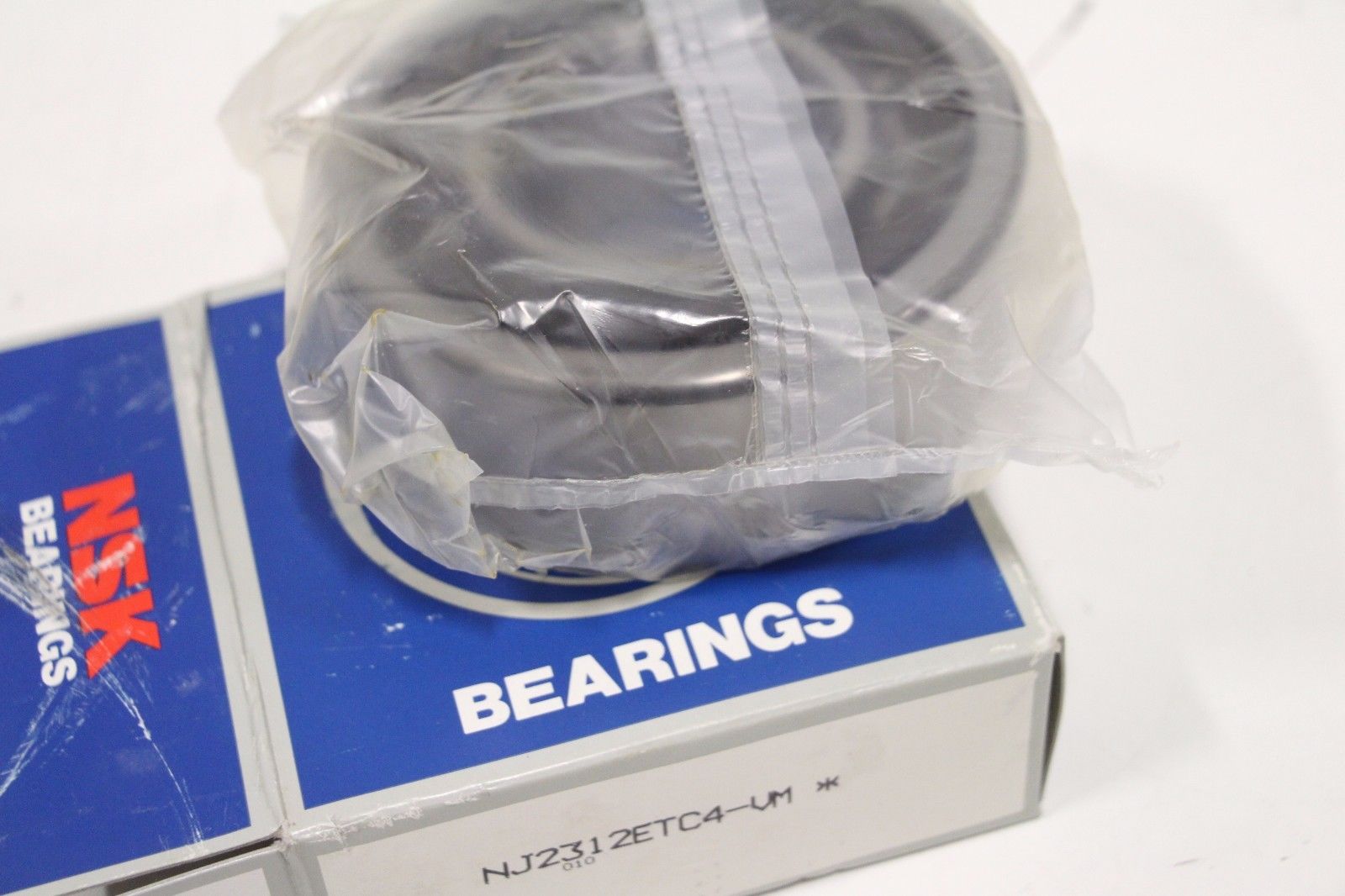

Cylindrical Roller Bearings NU.NJ 23 series Bearing Number Boundary dimensions(mm) Basic load ratings(kN) Limiting speeds(rpm) Mass(Kg) QBT d D B rs min rs1 min Cr Cor Grease Oil (Approx.) NU2304E NJ2304E 20 52 21 1.1 0.6 42 39 12,000 14,000 0.242 NU2305E NJ2305E 25 62 24 1.1 1.1 57 56 9,700 11,000 0.386 NU2306E NJ2306E 30 72 27 1.1 1.1 74.5 77.5 8,300 9,700 0.58 NU2307E NJ2307E 35 80 31 1.5 1.1 99 109 7,200 8,500 0.78 NU2308 NJ2308 40 90 33 1.5 1.5 82.5 88 7,000 8,200 0.951 NU2308E NJ2308E 40 90 33 1.5 1.5 114 122 6,400 7,500 1.06 NU2309 NJ2309 45 100 36 1.5 1.5 99 104 6,300 7,400 1.27 NU2309E NJ2309E 45 100 36 1.5 1.5 137 153 5,700 6,800 1.41 NU2310 NJ2310 50 110 40 2 2 121 131 5,700 6,700 1.7 NU2310E NJ2310E 50 110 40 2 2 163 187 5,200 6,100 1.9 NU2311 NJ2311 55 120 43 2 2 148 162 5,200 6,100 2.17 NU2311E NJ2311E 55 120 43 2 2 201 233 4,700 5,600 2.37 NU2312 NJ2312 60 130 46 2.1 2.1 169 188 4,800 5,700 2.71 NU2312E NJ2312E 60 130 46 2.1 2.1 222 262 4,400 5,200 2.96 NU2313 NJ2313 65 140 48 2.1 2.1 188 212 4,400 5,200 3.27 NU2313E NJ2313E 65 140 48 2.1 2.1 248 287 4,100 4,800 3.48 NU2314 NJ2314 70 150 51 2.1 2.1 223 262 4,100 4,800 3.98 NU2314E NJ2314E 70 150 51 2.1 2.1 274 325 3,800 4,400 4.25 NU2315 NJ2315 75 160 55 2.1 2.1 258 300 3,800 4,500 4.87 NU2315E NJ2315E 75 160 55 2.1 2.1 330 395 3,500 4,100 5.25 NU2316 NJ2316 80 170 58 2.1 2.1 274 330 3,600 4,200 5.79 NU2316E NJ2316E 80 170 58 2.1 2.1 355 430 3,300 3,900 6.25 NU2317 NJ2317 85 180 60 3 3 315 380 3,400 4,000 6.7 NU2317E NJ2317E 85 180 60 3 3 395 485 3,100 3,700 7.16 NU2318 NJ2318 90 190 64 3 3 325 395 3,200 3,800 7.95 NU2318E NJ2318E 90 190 64 3 3 435 535 2,900 3,400 8.56 NU2319 NJ2319 95 200 67 3 3 370 460 3,000 3,500 9.2 NU2319E NJ2319E 95 200 67 3 3 460 585 2,700 3,200 9.8 NU2320 NJ2320 100 215 73 3 3 410 505 2,900 3,400 11.7 NU2320E NJ2320E 100 215 73 3 3 570 715 2,600 3,100 12.8 NU2322 NJ2322 110 240 80 3 3 605 790 2,600 3,100 17.1 NU2322E NJ2322E 110 240 80 3 3 675 880 2,400 2,800 19.4 NU2324 NJ2324 120 260 86 3 3 710 920 2,400 2,800 21.5 NU2324E NJ2324E 120 260 86 3 3 795 1,030 2,200 2,500 26.1 NU2326 NJ2326 130 280 93 4 4 840 1,130 2,200 2,600 26.9 NU2326E NJ2326E 130 280 93 4 4 920 1,230 2,000 2,300 30.9 NU2328 NJ2328 140 300 102 4 4 920 1,250 2,000 2,300 33.8 NU2328E NJ2328E 140 300 102 4 4 1,020 1,380 1,800 2,100 38.7 NU2330 NJ2330 150 320 108 4 4 1,020 1,400 1,900 2,200 40.6 NU2330E NJ2330E 150 320 108 4 4 1,160 1,600 1,700 2,000 47.2
