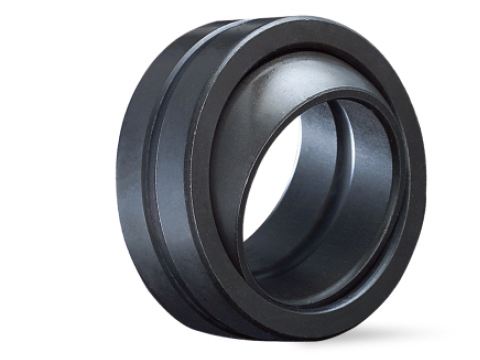

Joint bearing GE E series

Product Name:

Joint bearing GE E series

Model :

GE4E, GE6E, GE8E, GE20ES, GE25ES, GE40ES

Product Description:

Product Type:     [Spherical Plain Bearings] - [Radial spherical plain bearings
                        requiring maintenance]
Joint bearing GE...E series

Bearing Number	Boundary Dimensions(mm)								Load Ratings(kN)		Mass(Kg)
QBT	d	D	B	C	dk	rs min	rls min	a(^o)	Cr	Cor	(Approx.)
GE4E	4	12	5	3	8	0.3	0.3	16	2	10	0.003
GE5E	5	14	6	4	10	0.3	0.3	13	3.4	17	0.005
GE6E	6	14	6	4	10	0.3	0.3	13	3.4	17	0.004
GE8E	8	16	8	5	13	0.3	0.3	15	5.5	27	0.008
GE10E	10	19	9	6	16	0.3	0.3	12	8.1	40	0.011
GE12E	12	22	10	7	18	0.3	0.3	10	10	53	0.015

Product Type:     [Spherical Plain Bearings] - [Radial spherical plain bearings
                        requiring maintenance]
Joint bearing GE...ES series

Bearing Number	Boundary Dimensions(mm)								Load Ratings(kN)		Mass(Kg)
QBT	d	D	B	C	dk	rs min	rls min	a(^o)	Cr	Cor	(Approx.)
GE15ES	15	26	12	9	22	0.3	0.3	8	16	84	0.027
GE17ES	17	30	14	10	25	0.3	0.3	10	21	106	0.041
GE20ES	20	35	16	12	29	0.3	0.3	9	30	146	0.066
GE25ES	25	42	20	16	35.5	0.6	0.6	7	48	240	0.119
GE30ES	30	47	22	18	40.7	0.6	0.6	6	62	310	0.153
GE35ES	35	55	25	20	47	0.6	1	6	79	399	0.233
GE40ES	40	62	28	22	53	0.6	1	7	99	495	0.306
GE45ES	45	68	32	25	60	0.6	1	7	127	637	0.427
GE50ES	50	75	35	28	66	0.6	1	6	156	780	0.546
GE55ES	55	85	40	32	74	0.6	1	7	200	1000	0.939
GE60ES	60	90	44	36	80	1	1	6	245	1220	1.04
GE70ES	70	105	49	40	92	1	1	6	313	1560	1.55
GE80ES	80	120	55	45	105	1	1	6	400	2000	2.31
GE90ES	90	130	60	50	115	1	1	5	488	2440	2.75
GE100ES	100	150	70	55	130	1	1	7	607	3030	4.45
GE110ES	110	160	70	55	140	1	1	6	654	3270	4.82
GE120ES	120	180	85	70	160	1	1	6	950	4750	8.05
GE140ES	140	210	90	70	180	1	1	7	1070	5350	11.02
GE160ES	160	230	105	80	200	1	1	8	1360	6800	14.01
GE180ES	180	260	105	80	225	1.1	1.1	6	1530	7650	18.65
GE200ES	200	290	130	100	250	1.1	1.1	7	2120	10600	28.03
GE220ES	220	320	135	100	275	1.1	1.1	8	2320	11600	35.51
GE240ES	240	340	140	100	300	1.1	1.1	8	2550	12700	39.91
GE260ES	260	370	150	110	325	1.1	1.1	7	3030	15190	51.54
GE280ES	280	400	155	120	350	1.1	1.1	6	3570	17850	65.06
GE300ES	300	430	165	120	375	1.1	1.1	7	3800	19100	78.07

Product Type:     [Spherical Plain Bearings] - [Radial spherical plain bearings
                        requiring maintenance]
Joint bearing GE...ES-2RS series

Bearing Number	Boundary Dimensions(mm)								Load Ratings(kN)		Mass(Kg)
QBT	d	D	B	C	dk	rs min	rls min	a(^o)	Cr	Cor	(Approx.)
GE15ES-2RS	15	26	12	9	22	0.3	0.3	8	16	84	0.027
GE17ES-2RS	17	30	14	10	25	0.3	0.3	10	21	106	0.041
GE20ES-2RS	20	35	16	12	29	0.3	0.3	9	30	146	0.066
GE25ES-2RS	25	42	20	16	35.5	0.6	0.6	7	48	240	0.119
GE30ES-2RS	30	47	22	18	40.7	0.6	0.6	6	62	310	0.153
GE35ES-2RS	35	55	25	20	47	0.6	1	6	79	399	0.233
GE40ES-2RS	40	62	28	22	53	0.6	1	7	99	495	0.306
GE45ES-2RS	45	68	32	25	60	0.6	1	7	127	637	0.427
GE50ES-2RS	50	75	35	28	66	0.6	1	6	156	780	0.546
GE55ES-2RS	55	85	40	32	74	0.6	1	7	200	1000	0.939
GE60ES-2RS	60	90	44	36	80	1	1	6	245	1220	1.04
GE70ES-2RS	70	105	49	40	92	1	1	6	313	1560	1.55
GE80ES-2RS	80	120	55	45	105	1	1	6	400	2000	2.31
GE90ES-2RS	90	130	60	50	115	1	1	5	488	2440	2.75
GE100ES-2RS	100	150	70	55	130	1	1	7	607	3030	4.45
GE110ES-2RS	110	160	70	55	140	1	1	6	654	3270	4.82
GE120ES-2RS	120	180	85	70	160	1	1	6	950	4750	8.05
GE140ES-2RS	140	210	90	70	180	1	1	7	1070	5350	11.02
GE160ES-2RS	160	230	105	80	200	1	1	8	1360	6800	14.01
GE180ES-2RS	180	260	105	80	225	1.1	1.1	6	1530	7650	18.65
GE200ES-2RS	200	290	130	100	250	1.1	1.1	7	2120	10600	28.03
GE220ES-2RS	220	320	135	100	275	1.1	1.1	8	2320	11600	35.51
GE240ES-2RS	240	340	140	100	300	1.1	1.1	8	2550	12700	39.91
GE260ES-2RS	260	370	150	110	325	1.1	1.1	7	3030	15190	51.54
GE280ES-2RS	280	400	155	120	350	1.1	1.1	6	3570	17850	65.06
GE300ES-2RS	300	430	165	120	375	1.1	1.1	7	3800	19100	78.07
