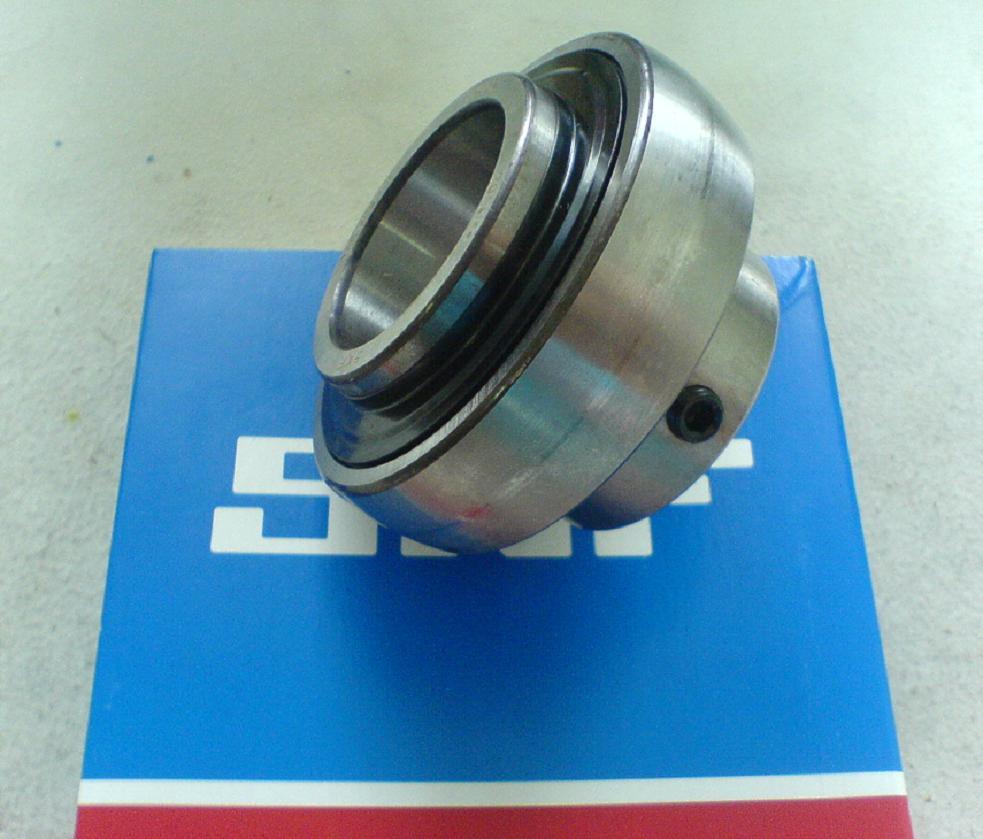

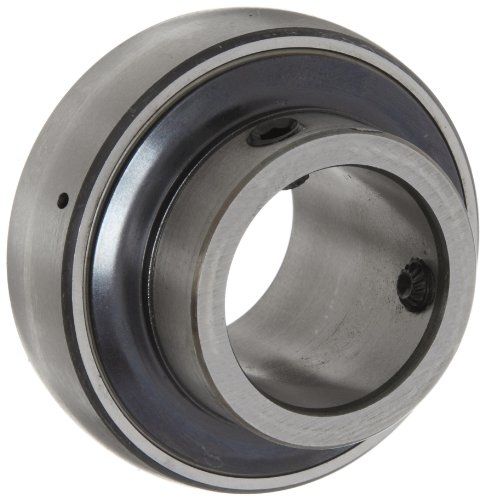

Pillow Block Bearings UC300 series

Pillow Block Bearings UC300 series

Product Name:

Pillow Block Bearings UC300 series

Model :

UC305, UC306, UC307, UC 308, UC309, UC3100-UC320

Product Description:

s-l1600 (1).jpg

Bearing No.	Shaft Dia	Dimensions(mm)							Weight (kg)
	d	Dimensions(mm)
	mm	D	Bi	Be	n	m	G	ds
	mm	D	Bi	Be	n	m	G	mm
UC305	25	62	38	20	15	23	6	M6x1.0	0.35
UC306	30	72	43	23	17	26	6	M8x1.0	0.56
UC307	35	80	48	25	19	29	8	M8x1.0	0.71
UC308	40	90	52	27	19	33	10	M10x1.25	1.00
UC309	45	100	57	29	22	35	10	M10x1.25	1.36
UC310	50	110	61	32	22	39	12	M12x1.50	1.65
UC311	55	120	66	34	25	41	12	M12x1.50	2.08
UC312	60	130	71	36	26	45	12	M12x1.50	2.60
UC313	65	140	75	38	30	45	12	M12x1.50	3.24
UC314	70	150	78	40	33	45	12	M12x1.50	3.91
UC315	75	160	82	42	32	50	14	M14x1.50	4.70
UC316	80	170	86	44	34	52	16	M16x1.50	5.06
UC317	85	180	96	46	40	56	16	M16x1.50	6.9
UC318	90	190	96	48	40	56	16	M16x1.50	8.03
UC319	95	200	103	50	41	62	16	M16x1.50	8.91
UC320	100	215	108	54	42	66	18	M18x1.50	11.2
