Pillow Block Bearings UCF200 series

Pillow Block Bearings UCF200 series

Product Name:

Pillow Block Bearings UCF200 series

Model :

UCF202, UCF203, UCF204, UCF205, UCF206, UCF207, UCF208-UCF218

Product Description:

Pillow Block Bearings UCF200 series

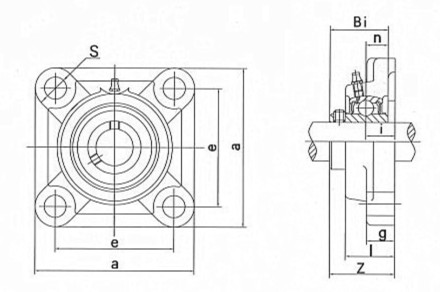

Bearing Unit No.	Shaft Dia	Dimensions(mm)									Weight (kg)
	d	Dimensions(mm)
	mm	a	e	i	g	l	z	s	n	Bi
UCF202	15	86	64	15	11	25.5	30.9	12	11.5	27.4	0.56
UCF203	17	86	64	15	11	25.5	30.9	12	11.5	27.4	0.54
UCF 204	20	86	64	15	11	25.5	33.7	12	12.3	31.0	0.61
UCF205	25	95	70	16	13	27.0	35.8	12	14.3	34.1	0.80
UCF206	30	108	83	18	13	31.0	40.2	12	15.9	38.1	1.11
UCF207	35	117	92	19	15	34.0	44.4	14	17.5	42.9	1.66
UCF208	40	130	102	21	15	36.0	51.2	16	19.0	49.2	1.93
UC209	45	137	105	22	16	38.0	52.2	16	19.0	49.2	2.28
UCF210	50	143	111	22	16	40.0	54.6	16	19.0	51.6	2.57
UCF211	55	162	130	25	18	43.0	58.4	19	22.2	55.6	3.98
UCF212	60	175	143	29	18	48.0	68.7	19	25.4	65.1	4.30
UCF213	65	187	149	30	22	50.0	69.7	19	25.4	65.1	5.49
UCF214	70	193	152	31	22	54.0	75.4	19	330.2	74.6	6.47
UCF215	75	200	159	34	22	56.0	78.5	19	33.3	77.8	6.54
UCF216	80	208	165	34	22	58.0	83.3	23	33.3	82.6	7.86
UCF217	85	220	175	36	24	63.0	87.6	23	34.1	85.7	9.77
UCF218	90	235	187	40	24	68.0	96.3	23	39.7	96.0	11.72
