Product Name:

Pillow Block Bearings UCFL200 series

Model :

UCFL202, UCFL203, UCFL204, UCFL205, UCFL206, UCFL207, UCFL208-UCFL218

Product Description:

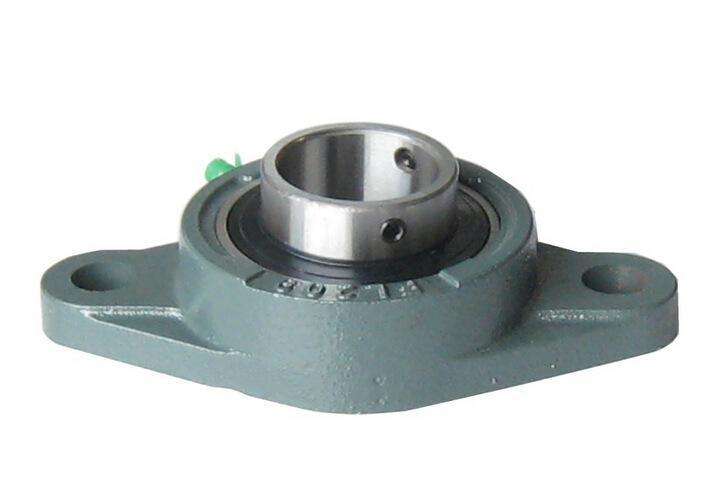

Pillow Block Bearings UCFL200 series

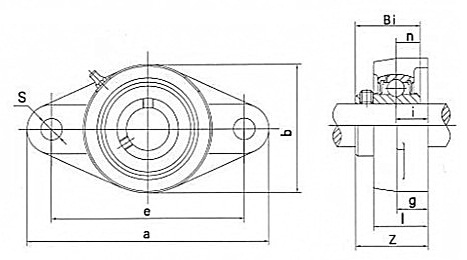

Bearing Unit No.	Shaft Dia	Dimensions(mm)										Weight (kg)
	d	Dimensions(mm)
	mm	a	e	b	i	g	l	z	s	n	Bi
UCFL202	15	113	90	60	15	12	25.5	30.9	12	11.5	27.4	0.42
UCFL203	17	113	90	60	15	12	25.5	30.3	12	11.5	27.4	0.41
UCFL204	20	113	90	60	15	12	25.5	33.7	12	12.3	31.0	0.48
UCFL205	25	130	99	68	16	14	27.0	35.8	16	14.3	34.1	0.60
UCFL206	30	148	117	80	18	14	31.0	40.2	16	15.9	38.1	0.98
UCFL207	35	161	130	90	19	16	34.0	44.4	16	17.5	42.9	1.31
UCFL208	40	175	144	100	21	16	36.0	51.2	16	19.0	49.2	1.53
UCFL209	45	188	148	108	22	18	38.0	52.2	19	19.0	49.2	1.68
UCFL210	50	197	157	115	22	18	40.0	54.6	19	19.0	51.6	1.88
UCFL211	55	224	184	130	25	20	43.0	58.4	19	22.2	55.6	3.10
UCFL212	60	250	202	140	29	20	48.0	68.7	23	25.4	65.1	4.00
UCFL213	65	258	210	155	30	24	50.0	69.7	23	25.4	65.1	5.00
UCFL214	70	265	216	160	31	24	54.0	75.4	23	30.2	74.6	5.60
UCFL215	75	275	225	165	34	24	56.0	78.5	23	33.3	77.8	6.20
UCFL216	80	290	233	180	34	24	58.0	83.3	25	33.3	82.6	8.20
UCFL217	85	305	248	190	36	26	63.0	87.6	25	34.1	85.7	9.26
UCFL218	90	320	265	205	40	26	68.0	96.3	25	39.7	96.0	11.73
