Pillow Block Bearings UCT200 series

Pillow Block Bearings UCT200 series

Product Name:

Pillow Block Bearings UCT200 series

Model :

UCT202, UCT203, UCT204, UCT205, UCT206, UCT207, UCT208-UCT218

Product Description:

Pillow Block Bearings UCT200 series

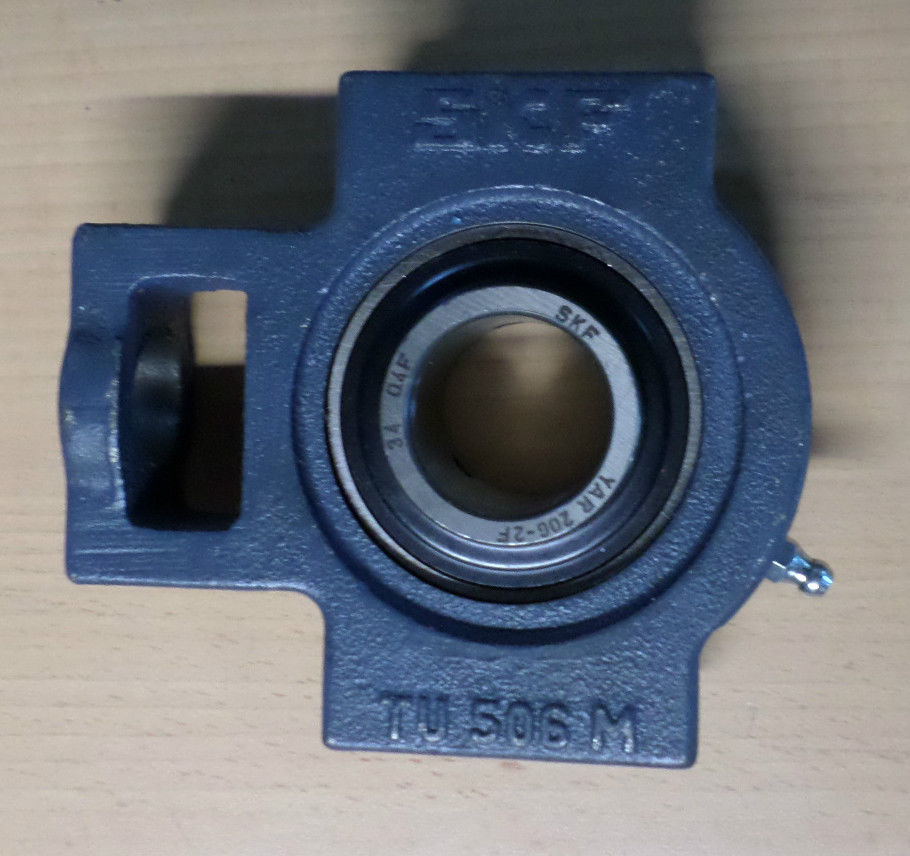

s-l1600 (3).jpg

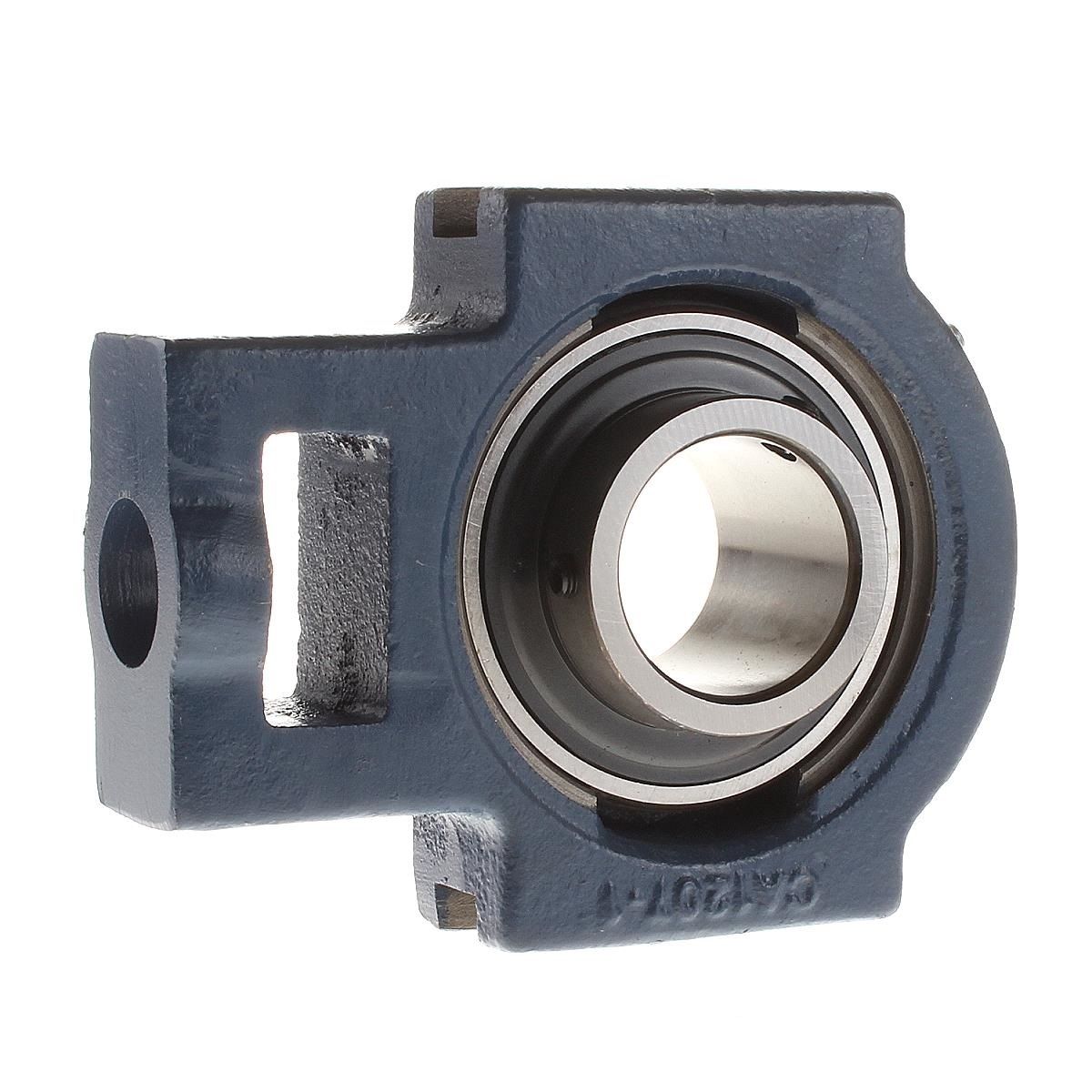

s-l1600 (5).jpg

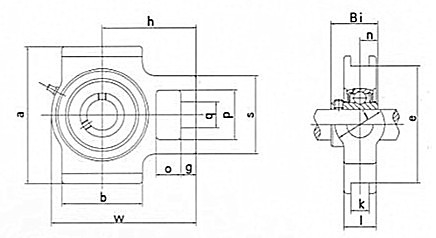

Bearing Unit No.	Shaft Dia	Dimensions(mm)															Weight (kg)
	d	Dimensions(mm)
	mm	o	g	s	p	q	b	k	e	a	w	j	i	h	n	Bi
UCT202	15	16	10	51	32	19	51	12	76	89	94	32	21	61	11.5	27.4	0.78
UCT203	17	16	10	51	32	19	51	12	76	89	94	32	21	61	11.5	27.4	0.77
UCT 204	20	16	10	51	32	19	51	12	76	89	94	32	21	61	12.3	31.0	0.81
UCT205	25	16	10	51	32	19	51	12	76	89	97	32	24	62	14.3	34.1	0.92
UCT206	30	16	10	56	37	22	57	12	89	102	113	37	28	70	15.9	38.1	1.01
UCT207	35	16	13	64	37	22	64	12	89	102	129	37	30	78	17.5	42.9	1.70
UCT208	40	19	16	83	49	29	83	16	102	114	144	49	33	88	19.0	49.2	2.43
UCT209	45	19	16	83	49	29	83	16	102	117	144	49	35	87	19.0	49.2	2.58
UCT210	50	19	16	83	49	29	86	16	102	117	149	49	37	90	19.0	51.6	2.78
UCT211	55	25	19	102	64	35	95	22	130	146	171	61	38	106	22.2	55.6	4.17
UCT212	60	32	19	102	64	35	102	22	130	146	194	61	42	119	25.4	65.1	4.90
UCT213	65	32	21	111	70	41	121	26	151	167	224	70	44	137	11.5	27.4	7.30
UCT214	70	32	21	111	70	41	121	26	151	167	224	70	46	137	11.5	27.4	7.36
UCT215	75	32	21	111	70	41	121	26	151	167	232	70	48	140	11.5	27.4	7.99
UCT216	80	32	21	111	70	41	121	26	165	184	235	70	51	140	12.3	31.0	8.92
UCT217	85	38	29	124	73	48	157	30	173	198	260	73	54	162	14.3	34.1	11.46
UCT218	90	40	30	130	80	48	140	30	190	215	275	80	55	170	14.3	34.1	14.76
