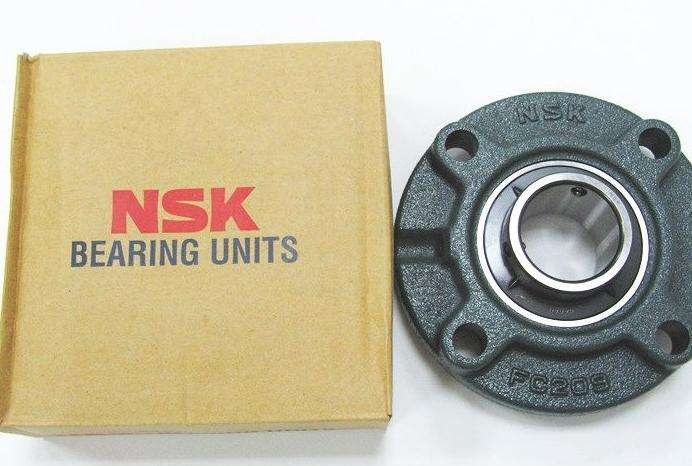

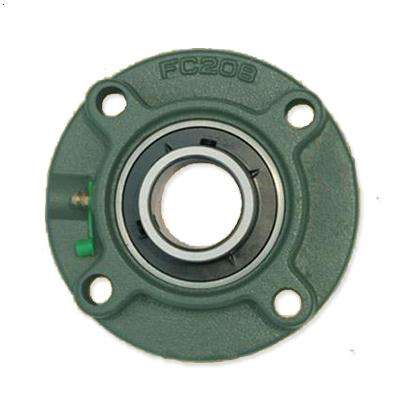

Pillow Block Bearings UCFC200 series

Pillow Block Bearings UCFC200 series

Product Name:

Pillow Block Bearings UCFC200 series

Model :

UCFC202, UCFC203, UCFC204, UCFC205, UCFC206, UCFC207, UCFC208-UCFC218

Product Description:

Pillow Block Bearings UCFC200 series

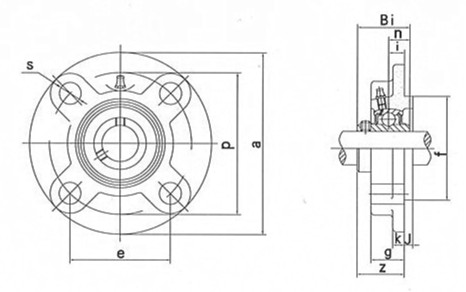

Bearing Unit No.	Shaft Dia	Dimensions(mm)												Weight (kg)
	d	Dimensions(mm)
	mm	a	p	i	g	j	k	s	e	f	z	n	Bi
UCFC202	15	100	78	10	20.5	5	7	12	55.1	62	25.9	11.5	27.4	0.77
UCFC203	17	100	78	10	20.5	5	7	12	55.1	62	25.9	11.5	27.4	0.76
UCFC204	20	100	78	10	20.5	5	7	12	55.1	62	28.7	12.3	31.0	0.81
UCFC205	25	115	90	10	21.0	6	7	12	63.6	70	29.8	14.3	34.1	1.09
UCFC206	30	125	100	10	23.0	8	8	12	70.7	80	32.2	15.9	38.1	1.51
UCFC207	35	135	110	11	26.0	8	9	14	77.8	90	36.4	17.5	42.9	1.98
UCFC208	40	145	120	11	26.0	10	9	14	84.8	100	41.2	19.0	49.2	2.32
UCFC209	45	160	132	10	26.0	12	14	16	93.3	105	4.02	19.0	49.2	3.07
UCFC210	50	165	138	10	28.0	12	14	16	97.6	110	42.6	19.0	51.6	3.28
UCFC211	55	185	150	13	31.0	12	15	19	106.1	125	46.4	22.2	55.6	4.20
UCFC212	60	195	160	17	36.0	12	15	19	113.1	135	56.7	25.4	65.1	5.45
UCFC213	65	205	170	16	36.0	14	15	19	120.2	145	55.7	11.5	65.1	5.91
UCFC214	70	215	177	17	40.0	14	18	19	125.1	150	61.4	11.5	74.6	7.26
UCFC215	75	220	184	18	40.0	16	18	19	130.1	160	62.5	11.5	77.8	8.02
UCFC216	80	240	200	18	42.0	16	18	23	141.4	170	67.3	12.3	82.6	9.92
UCFC217	85	250	208	18	45.0	18	20	23	147.1	180	69.6	33.3	87.5	11.58
UCFC218	90	265	220	22	50.0	18	20	23	155.5	190	78.3	39.7	96.0	13.74
