Type Size Overrunning Speed Weight [Kg] Resistance Torque dH7[mm] TKN1)[Nm] nimax2)[min-1] namax3)[min-1] Dr6[mm] D5[mm] L [mm] s [mm] e [mm] f [mm] TR [Ncm] AS (NSS) 6 1.7 5000 7500 19 15.8 6 0.8 0.6 0.3 0.01 0.18 8 3 4300 6500 24 20 8 1.3 0.6 0.6 0.02 0.24 10 5.4 3500 5200 30 25.9 9 1.3 0.6 0.6 0.03 0.36 12 10 3200 4800 32 28 10 1.3 0.6 0.6 0.04 0.48 15 11 2800 4300 35 31 11 1.4 0.6 0.6 0.05 0.7 20 32 2200 3300 47 40 14 2.4 0.8 0.8 0.12 1.4 25 45 1900 2900 52 45.9 15 2.4 0.8 0.8 0.14 2.4 30 72 1600 2400 62 55 16 2.4 0.8 1 0.22 7.8 35 114 1300 2000 72 64 17 2.5 0.8 1 0.31 9 40 148 1200 1800 80 72 18 2.5 0.8 1 0.39 10 45 174 1000 1600 85 77 19 2.5 1.2 1 0.44 11 50 184 950 1500 90 82 20 2.5 1.2 1 0.49 13 55 246 800 1300 100 90 21 2.5 1.2 1 0.66 14 60 406 700 1100 110 100 22 2.5 1.2 1.5 0.81 26 80 850 600 900 140 128 26 2.5 1.2 1.5 1.41 58

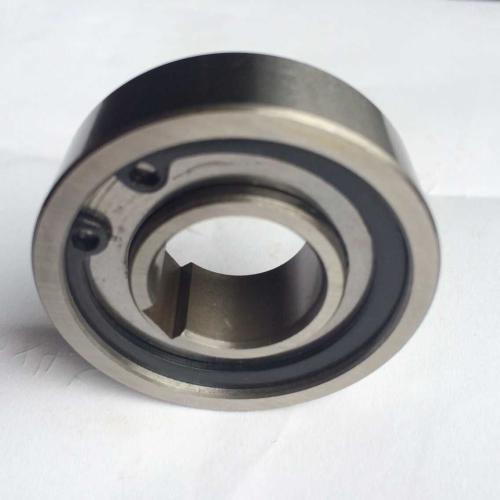

AS(NSS) series
Notes:
AS6 without keyway.
AS8-12 keyway to DIN 6885.1, other size to DIN 6885.3
1) Tmax = 2.5 x TKN
2) Inner race overruns
3) Outer race overruns
Mounting dimension are identical to ball bearings series 62.
