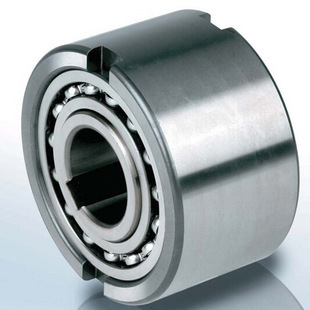

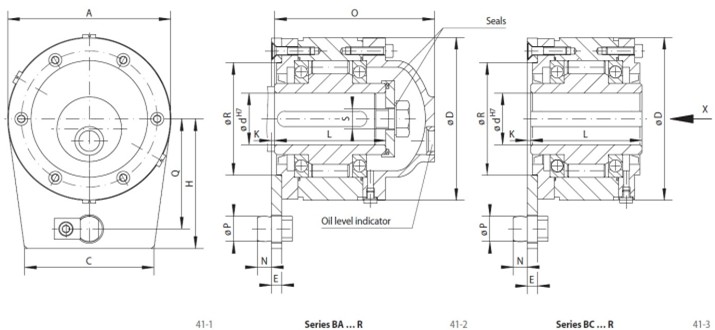

BA..R BC..R series
Freewheel Size Type Nominal Torque Max. Speed Inner Ring Freewheels Bore d A C D E H K L N O P Q R S for Screw Weitht MN Nm min-1 Standard mm Max. mm mm mm mm mm mm mm mm mm mm mm mm mm kg BA12 BC12 R 150 1750 15 15 71 50 71 8 53 4.5 68 9 91 11.5 42 45 M6 2 BA15 BC15 R 230 1650 20 20 81 60 81 8 62 4.5 70 9 93 13.5 50 50 M6 3 BA18 BC18 R 340 1550 25 25 96 70 96 8 73 4.5 70 9 96 15.5 60 60 M10 4 BA20 BC20 R 420 1450 30 30 110 90 106 8 80 2.5 77 11 104 19.5 65 70 M10 5 BA25 BC25 R 800 1250 40 40 126 100 126 8 90 2.5 93 11 125 19.5 75 80 M12 8 BA28 BC28 R 1200 1100 45 45 140 110 136 10 105 3.5 95 14 129 24.5 85 90 M12 9 BA30 BC30 R 1600 1000 50 50 155 120 151 10 120 3.5 102 16 140 27.5 95 100 M16 12 BA35 BC35 R 1800 900 55 55 170 130 161 10 140 3.5 110 19 151 33.5 112 110 M16 15 BA40 BC40 R 3500 800 60 60 190 150 181 12 160 5.5 116 22 160 37.5 130 120 M16 20 BA45 BC45 R 7100 750 70 70 210 160 196 14 175 7 130 26 176 41.5 140 130 M16 25 BA50 BC50 R 7500 700 75 75 220 180 206 14 185 7 132 26 178 41.5 150 140 M16 30 BA52 BC52 R 9300 650 80 80 230 190 216 14 200 4.5 150 26 208 41.5 160 150 M20 35 BA55 BC55 R 12500 550 90 90 255 200 246 15 210 3.5 170 29 228 49.5 170 160 M20 50 BA60 BC60 R 14500 500 �� 105 295 220 291 20 250 8.5 206 35 273 60 200 190 M24 91 BA70 BC70 R 22500 425 �� 120 335 260 321 25 280 14 215 39 291 65 225 210 M24 115 BA80 BC80 R 25000 375 �� 130 360 280 351 30 280 18.5 224 39 302 65 225 220 M24 150 BA90 BC90 R 33500 350 �� 140 385 300 371 35 310 22.5 236 55 314 70 250 240 M30 180 BA95 BC95 R 35000 300 �� 150 400 350 391 40 310 27.5 249 55 337 70 250 250 M30 225 BA100 BC100 R 57500 250 �� 150 420 380 411 45 345 31.5 276 60 372 80 280 270 M30 260
