Type Size Bearing Series Bearing Loads Weight [Kg] Friction Resistance d [mm] TKN [Nm] nmax[min-1] D [mm] L [mm] C [kN] Co [kN] TR [Ncm] CSK(KK) 8* - 2.0 15000 22 9 3.28 0.86 0.015 0.5 12 3201 7.4 10000 32 10 6.1 2.77 0.04 0.7 15 6202 13.5 8400 35 11 7.4 3.42 0.06 0.9 17 6203 24.5 7350 40 12 7.9 3.8 0.07 1.1 20 6204 40 6000 47 14 9.4 4.46 0.11 1.3 25 6205 68 5200 52 15 10.7 5.46 0.14 2.0 30 6206 110 4200 62 15 11.7 6.45 0.21 4.4 35 6207 140 3600 72 17 12.6 7.28 0.3 5.8 40 - 260 3000 80 22 15.54 12.25 0.5 7.0 CSK..2RS 8** 2.0 15000 22 9 3.28 0.86 0.015 0.8 12 - 7.4 10000 32 14 6.1 2.77 0.05 3.0 15 13.5 8400 35 16 7.4 3.42 0.07 4.0 17 24.5 7350 40 17 7.9 3.8 0.09 5.6 20 40 6000 47 19 9.4 4.46 0.145 6.0 25 68 5200 52 20 10.7 5.46 0.175 6.0 30 110 4200 62 21 11.7 6.45 0.27 7.5 35 140 3600 72 22 12.6 7.28 0.4 8.2 40*** - 260 3000 80 27 15.54 12.25 0.6 10

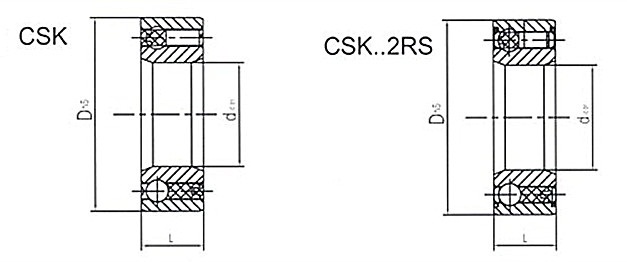

CSK(KK) CSK..2RS series
Notes:
1) Tmax = 2.5 x TKN
*) One Z seal on the bearing side only.
Looking from this side, the outer race runs free in the counterclockwise direction.
**) Only one RS seal on the ball bearing side.
Looking from this side, the outer race runs free in the counterclockwise direction.
***) Availability of italic printed sizes on request.
