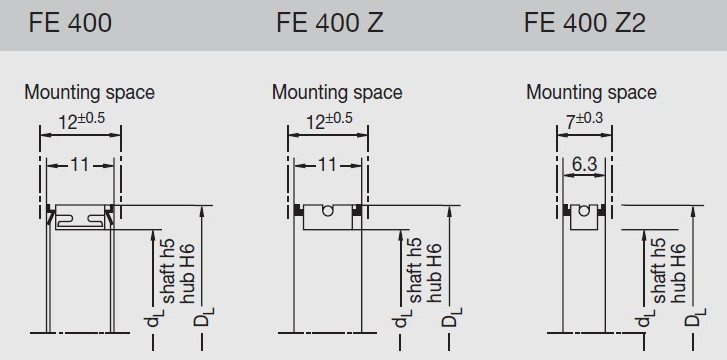

FE 400 FE 400 Z FE 400 Z2 Idling Speed Clutch nmax[RPM] Dimensions [mm] Dimensions [inch] Part Number Torque M Part Number Torque M Part Number Torque M [ftlb] [Nm] [ftlb] [Nm] [ftlb] [Nm] dL DL dL DL FE 410 Z2 0.2 0.3 10000 2 10 .0787 .3937 FE 412 Z 2.2 3 FE 412 Z2 1.3 1.8 10000 4 12 .1575 .4724 FE 413 Z2 2.1 2.9 9000 5 13 .1969 .5118 FE 414Z 5 7 FE 414 Z2 1.9 2.6 8500 6 14 .2362 .5512 FE 416Z 9 12 FE 416 Z2 5.6 7.6 7500 8 16 .3150 .6299 FE 422 36 48 FE 422 Z 32 44 FE 422 Z2 16 21 5300 14 22 .5512 .8661 FE 423 40 55 FE 423 Z 36 48 FE 423 Z2 18 24 5200 15 23 .5906 .9055 FE 425 50 68 FE 425 Z 43 58 FE 425 Z2 22 30 4700 17 25 .6693 .9843 FE 427 59 80 FE 427 Z 49 66 FE 427 Z2 27 36 4400 19 27 .7480 1.0630 FE 428 64 87 FE 428 Z 55 75 FE 428 Z2 29 39 4200 20 28 .7874 1.1024 FE 430 75 101 FE 430 Z 64 87 FE 430 Z2 34 46 4000 22 30 .8661 1.1711 FE 432 86 116 FE 432 Z 71 97 FE 432 Z2 39 52 3700 24 32 .9449 1.2598 FE 433 92 124 FE 433 Z 79 107 FE 433 Z2 41 56 3600 25 33 .9843 1.2992 FE 435 104 141 FE 435 Z 90 121 FE 435 Z2 47 64 3400 27 35 1.063 1.378 FE 437 117 158 FE 437 Z 101 137 FE 437 Z2 53 71 3200 29 37 1.1417 1.4567 FE 438 124 168 FE 438 Z 106 144 FE 438 Z2 56 76 3100 30 38 1.1811 1.4960 FE 442 152 207 FE 442 Z 131 178 FE 442 Z2 69 93 2800 34 42 1.3386 1.6535 FE 443 160 217 FE 443 Z 138 187 FE 443 Z2 72 98 2700 35 43 1.3780 1.6929 FE 448 201 272 FE 448 Z 173 235 FE 448 Z2 90 122 2500 40 48 1.5748 1.8898 FE 453 246 333 FE 453 Z 207 281 FE 453 Z2 108 146 2200 45 53 1.7717 2.0866 FE 458 295 400 FE 458 Z 254 345 FE 458 Z2 131 178 2000 50 58 1.9685 2.2835 FE 459 305 414 FE 459 Z 263 357 51 59 FE 463 348 472 FE 463 Z 300 407 FE 463 Z2 149 202 1900 55 63 2.1654 2.4803 FE 468 405 550 FE 468 Z 349 474 FE 468 Z2 179 243 1750 60 68 2.3622 2.6772 FE 470 429 583 FE 470 Z 370 502 1700 62 70 2.4409 2.7559 FE 473 467 633 FE 473 Z 402 545 1600 65 73 2.5590 2.8740 FE 478 532 722 FE 478 Z 458 622 1500 70 78 2.7559 3.0709 FE 488 674 914 FE 488Z 581 788 1300 80 88 3.1496 3.4646

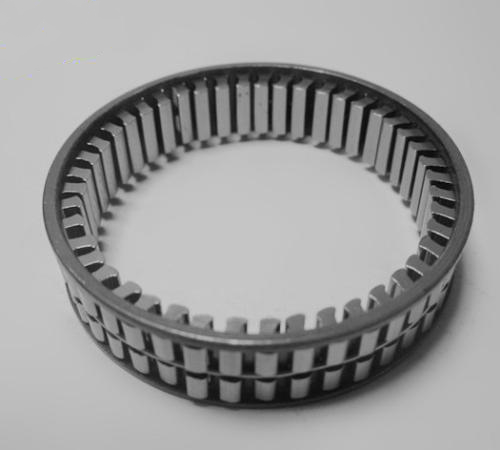

FE series
Note: Maximum radial clearance pending application 0.04mm.
