Product Name:

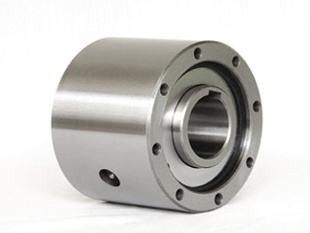

Clutch bearing MZ series

Model :

MZ15

Product Description:

MZ series

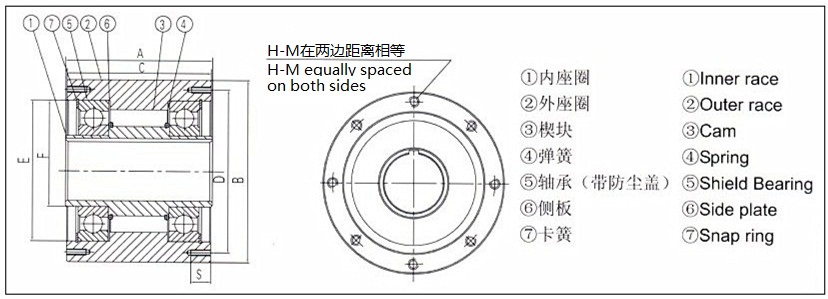

Dimensions and Capacities

Type	Max Torque (N-m)	Nominal Overrunning Drag (N-m)	Max Overrunning (r/min)		Max. Indexing (cycle/min)	Stock Bore Size		A	B	C	D	E	F	G	*H-M No. of Tapped HolesSizePitch*	S	Weitht (Kg)
			Inner Race	Outer Race		Dia (H7)	Keyway
MZ15	186	0.2	1800	900	150	15	5*2.3	62	68	60	58	47	25	5.5	6M5P0.8	10	1.4
MZ17	215	0.2	1700	800	150	17	5*2.3	66	75	64	64	52	28	6.3	6M5P0.8	10	1.8
MZ20	323	0.29	1600	700	150	20	6*2.8	67	80	65	65	55	30	7.6	6M6P1.0	12	2
MZ30-22	735	0.39	1500	500	150	22	6*2.8	82	100	80	88	75	45	8.9	6M8P1.25	16	3.7
MZ30-25						25	8*3.3
MZ30						30	10*3.3
MZ35	1080	0.49	1400	300	150	35	10*3.3	87	110	85	95	80	50	8.7	6M8P1.25	16	4.8
MZ45-40	1620	0.69	1400	300	150	40	12*3.3	92	125	90	110	95	60	8.4	6M8P1.25	16	6.2
MZ45						45	14*3.8
MZ60-50	2110	0.98	1200	250	150	50	14*3.8	102	155	100	140	125	80	9.1	6M8P1.25	16	10.2
MZ60-55						55	16*4.3
MZ60						60	18*4.4
MZ70-65	3040	1.27	1100	250	150	65	18*4.4	105	175	103	162	145	95	8.6	6M8P1.25	16	13.2
