Type Largest Allowable Torque (N.m) Highest Overrunning Speed Highest Indexing Frequency (times/min) Overrunning Friction Torque (N.m) Inner Race Outer Race MZ15G 186 1800 900 150 0.2 MZ17G 215 1700 800 150 0.2 MZ20G 323 1600 700 150 0.29 MZ30G-22 735 1500 500 150 0.39 MZ30G-25 MZ30G MZ35G 1080 1400 300 150 0.49 MZ45G-40 1620 1400 300 150 0.69 MZ45G MZ60G-50 2110 1200 250 150 0.98 MZ60G-55 MZ60G MZ70G-65 3040 1100 250 150 1.27 Type Shaft Hole Inner Race Width A Outer Race Width C Outer Dia. B (H7) Inner Race Boss Dia. F Centering Groove Dia. E Chamfer K Mounting Tap Weight (Kg) Moment of Inertia (Kg m2) Dia (H7) Key Slot Chamfer J PCDD Effective Screw Length S Size(H-m)Qty.-Dia.*Pitch MZ15G 15 5*2.3 0.8 55 53 68 25 47 1.3 58 10 6-M5*0.8 1.3 0.08*10-2 MZ17G 17 5*2.3 0.8 63 61 75 28 52 1.3 64 10 6-M5*0.8 1.7 0.14*10-2 MZ20G 20 2*2.3 0.8 64 62 80 30 55 1.3 68 12 6-M5*1.0 1.9 0.18*10-2 MZ30G-22 22 8*3.3 1 70 68 100 45 75 1.3 88 16 6-M8*1.25 3.2 0.47*10-2 MZ30G-25 25 8*3.3 1 MZ30G 30 10*3.3 1 MZ35G 35 10*3.3 1 78 76 110 50 80 1.3 95 16 6-M8*1.25 4.4 0.77*10-2 MZ45G-40 40 12*3.3 1.3 87 85 125 60 95 1.3 110 16 8-M8*1.25 6.2 1.4*10-2 MZ45G 45 12*3.3 1.3 MZ60G-50 50 14*3.8 1.5 90 88 155 80 125 1.3 140 16 8-M8*1.25 9.5 3.38*10-2 MZ60G-55 55 16*4.3 1.5 MZ60G 60 18*4.4 1.5 MZ70G-65 65 18*4.4 1.8 105 103 175 95 145 1.3 162 16 8-M8*1.25 13.1 6.01*10-2

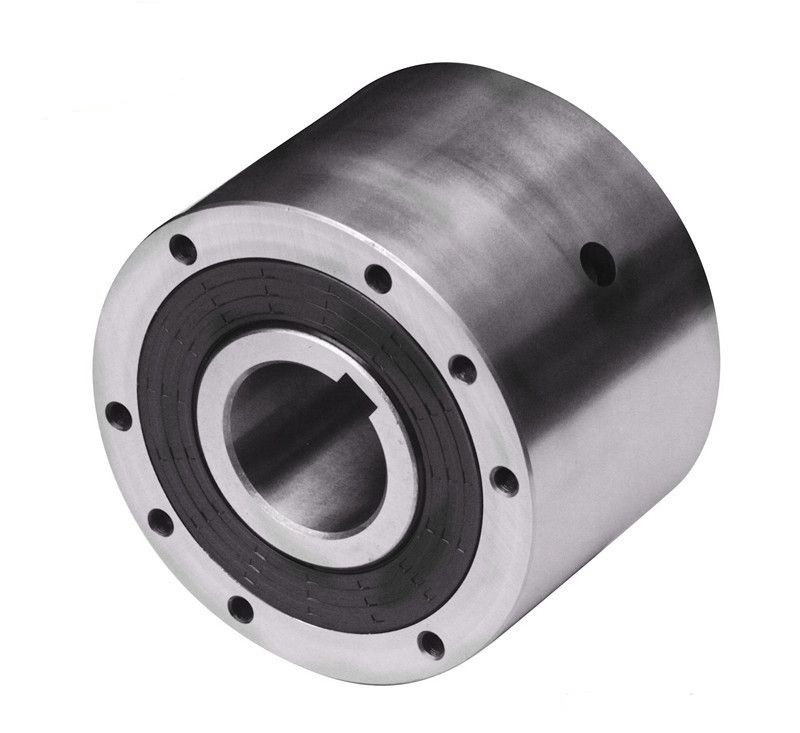

MZ..G series
TransmissionMZ70G

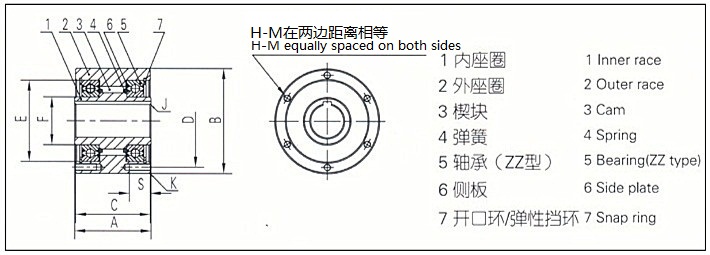

Dimensions Dimensions in mm
