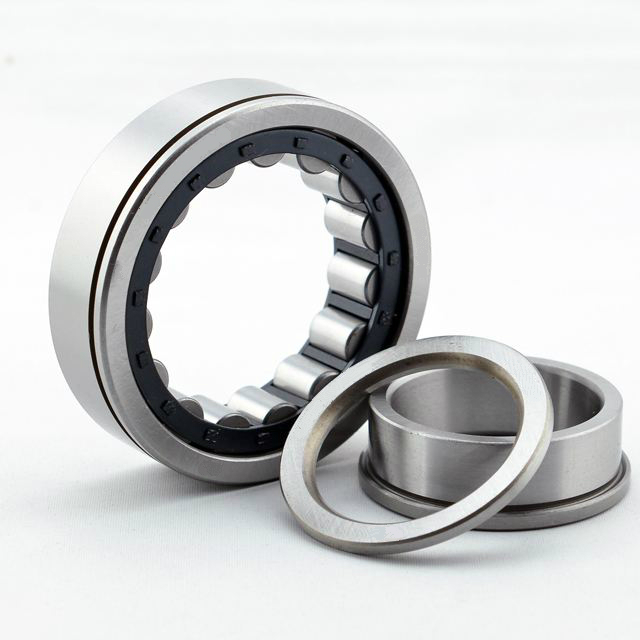

Cylindrical Roller Bearings NUP series
Bearing Number Boundary dimensions(mm) Basic load ratings(kN) Limiting speeds(rpm) Mass(Kg) QBT d D B rs min rs1 min Cr Cor Grease Oil (Approx.) NUP204E 20 47 14 1 0.6 25.7 22.6 15,000 18,000 0.122 NUP205E 25 52 15 1 0.6 29.3 27.7 13,000 15,000 0.151 NUP206E 30 62 16 1 0.6 39 37.5 11,000 13,000 0.226 NUP207E 35 72 17 1.1 0.6 50.5 50 9,500 11,000 0.327 NUP208 40 80 18 1.1 1.1 43.5 43 9,400 11,000 0.378 NUP208E 40 80 18 1.1 1.1 55.5 55.5 8,500 10,000 0.426 NUP209 45 85 19 1.1 1.1 46 47 8,400 9,900 0.432 NUP209E 45 85 19 1.1 1.1 63 66.5 7,600 9,000 0.495 NUP210 50 90 20 1.1 1.1 48 51 7,600 9,000 0.47 NUP210E 50 90 20 1.1 1.1 66 72 6,900 8,100 0.54 NUP211 55 100 21 1.5 1.1 58 62.5 6,900 8,200 0.638 NUP211E 55 100 21 1.5 1.1 82.5 93 6,300 7,400 0.718 NUP212 60 110 22 1.5 1.5 68.5 75 6,400 7,600 0.818 NUP212E 60 110 22 1.5 1.5 97.5 107 5,800 6,800 0.923 NUP213 65 120 23 1.5 1.5 84 94.5 5,900 7,000 1.02 NUP213E 65 120 23 1.5 1.5 108 119 5,400 6,300 1.21 NUP214 70 125 24 1.5 1.5 83.5 95 5,500 6,500 1.12 NUP214E 70 125 24 1.5 1.5 119 137 5,000 5,900 1.3 NUP215 75 130 25 1.5 1.5 96.5 111 5,100 6,000 1.23 NUP215E 75 130 25 1.5 1.5 130 156 4,700 5,500 1.41 NUP216 80 140 26 2 2 106 122 4,800 5,700 1.5 NUP216E 80 140 26 2 2 139 167 4,400 5,100 1.67 NUP217 85 150 28 2 2 120 140 4,500 5,300 1.87 NUP217E 85 150 28 2 2 167 199 4,100 4,800 2.11 NUP218 90 160 30 2 2 152 178 4,300 5,000 2.3 NUP218E 90 160 30 2 2 182 217 3,900 4,600 2.44 NUP219 95 170 32 2.1 2.1 166 195 4,000 4,700 2.78 NUP219E 95 170 32 2.1 2.1 220 265 3,600 4,300 3.02 NUP220 100 180 34 2.1 2.1 183 217 3,800 4,500 3.33 NUP220E 100 180 34 2.1 2.1 249 305 3,500 4,100 3.66 NUP221 105 190 36 2.1 2.1 201 241 3,600 4,300 3.95 NUP222 110 200 38 2.1 2.1 240 290 3,400 4,000 4.63 NUP222E 110 200 38 2.1 2.1 293 365 3,100 3,700 4.27 NUP224 120 215 40 2.1 2.1 260 320 3,200 3,700 5.57 NUP224E 120 215 40 2.1 2.1 335 420 2,900 3,400 5.97 NUP226 130 230 40 3 3 270 340 2,900 3,400 6.3 NUP226E 130 230 40 3 3 365 455 2,600 3,100 6.9 NUP228 140 250 42 3 3 310 400 2,700 3,100 7.88 NUP228E 140 250 42 3 3 395 515 2,400 2,800 8.73 NUP230 150 270 45 3 3 345 435 2,500 2,900 9.92 NUP230E 150 270 45 3 3 450 595 2,200 2,600 11 Bearing Number Boundary dimensions(mm) Basic load ratings(kN) Limiting speeds(rpm) Mass(Kg) QBT d D B rs min rs1 min Cr Cor Grease Oil (Approx.) NUP304E 20 52 15 1.1 0.6 31.5 26.9 13,000 15,000 0.176 NUP305E 25 62 17 1.1 1.1 41.5 37.5 11,000 13,000 0.275 NUP306E 30 72 19 1.1 1.1 53 50 9,300 11,000 0.398 NUP307E 35 80 21 1.5 1.1 71 71 8,100 9,600 0.545 NUP308 40 90 23 1.5 1.5 58.5 57 8,000 9,400 0.658 NUP308E 40 90 23 1.5 1.5 83 81.5 7,200 8,500 0.754 NUP309 45 100 25 1.5 1.5 74 71 7,200 8,400 0.877 NUP309E 45 100 25 1.5 1.5 97.5 98.5 6,500 7,600 0.996 NUP310 50 110 27 2 2 87 86 6,500 7,700 1.14 NUP310E 50 110 27 2 2 110 113 5,900 6,900 1.3 NUP311 55 120 29 2 2 111 111 5,900 7,000 1.45 NUP311E 55 120 29 2 2 137 143 5,300 6,300 1.65 NUP312 60 130 31 2.1 2.1 124 126 5,500 6,500 1.8 NUP312E 60 130 31 2.1 2.1 150 157 4,900 5,800 2.05 NUP313 65 140 33 2.1 2.1 135 139 5,100 6,000 2.23 NUP313E 65 140 33 2.1 2.1 181 191 4,600 5,400 2.54 NUP314 70 150 35 2.1 2.1 158 168 4,700 5,500 2.71 NUP314E 70 150 35 2.1 2.1 205 222 4,200 5,000 3.1 NUP315 75 160 37 2.1 2.1 190 205 4,400 5,200 3.28 NUP315E 75 160 37 2.1 2.1 240 263 4,000 4,700 3.74 NUP316 80 170 39 2.1 2.1 190 207 4,100 4,800 3.86 NUP316E 80 170 39 2.1 2.1 256 282 3,700 4,400 4.22 NUP317 85 180 41 3 3 212 228 3,900 4,600 4.54 NUP317E 85 180 41 3 3 291 330 3,500 4,100 4.81 NUP318 90 190 43 3 3 240 265 3,700 4,300 5.3 NUP318E 90 190 43 3 3 315 355 3,300 3,900 5.72 NUP319 95 200 45 3 3 259 285 3,400 4,000 6.13 NUP319E 95 200 45 3 3 335 385 3,100 3,600 6.62 NUP320 100 215 47 3 3 299 335 3,300 3,800 7.49 NUP320E 100 215 47 3 3 380 425 2,900 3,500 8.57 NUP321 105 225 49 3 3 320 360 3,100 3,700 8.53 NUP322 110 240 50 3 3 360 400 3,000 3,500 10 NUP322E 110 240 50 3 3 450 525 2,700 3,100 11.1 NUP324 120 260 55 3 3 450 510 2,700 3,200 12.8 NUP324E 120 260 55 3 3 530 610 2,400 2,800 13.9 NUP326 130 280 58 4 4 560 665 2,500 2,900 17.4 NUP326E 130 280 58 4 4 615 735 2,200 2,600 19.4 NUP328 140 300 62 4 4 615 745 2,300 2,700 21.2 NUP328E 140 300 62 4 4 665 795 2,100 2,400 23.2 NUP330 150 320 65 4 4 665 805 2,100 2,500 25.3 NUP330E 150 320 65 4 4 760 920 1,900 2,300 28.4 Bearing Number Boundary dimensions(mm) Basic load ratings(kN) Limiting speeds(rpm) Mass(Kg) QBT d D B rs min rs1 min Cr Cor Grease Oil (Approx.) NUP1005 25 47 12 0.6 0.3 15.1 14.1 16,000 19,000 0.092 NUP1006 30 55 13 1 0.6 19.7 19.6 14,000 16,000 0.13 NUP1007 35 62 14 1 0.6 22.6 23.2 12,000 15,000 0.179 NUP1008 40 68 15 1 0.6 27.3 29 11,000 13,000 0.22 NUP1009 45 75 16 1 0.6 31 34 9,900 12,000 0.28 NUP1010 50 80 16 1 0.6 32 36 8,900 11,000 0.295 NUP1011 55 90 18 1.1 1 37.5 44 8,200 9,700 0.442 NUP1012 60 95 18 1.1 1 40 48.5 7,500 8,800 0.474 NUP1013 65 100 18 1.1 1 41 51 7,000 8,200 0.485 NUP1014 70 110 20 1.1 1 58.5 70.5 6,500 7,600 0.699 NUP1015 75 115 20 1.1 1 60 74.5 6,100 7,100 0.738 NUP1016 80 125 22 1.1 1 72.5 90.5 5,700 6,700 0.98 NUP1017 85 130 22 1.1 1 74.5 95.5 5,400 6,300 1.03 NUP1018 90 140 24 1.5 1.1 88 114 5,100 5,900 1.33 NUP1019 95 145 24 1.5 1.1 90.5 120 4,800 5,600 1.4 NUP1020 100 150 24 1.5 1.1 93 126 4,600 5,400 1.45 NUP1021 105 160 26 2 1.1 105 142 4,300 5,100 1.84 NUP1022 110 170 28 2 1.1 131 174 4,100 4,800 2.33 NUP1024 120 180 28 2 1.1 139 191 3,800 4,400 2.44 NUP1026 130 200 33 2 1.1 172 238 3,400 4,000 3.69 NUP1028 140 210 33 2 1.1 176 250 3,200 3,800 4.05 NUP1030 150 225 35 2.1 1.5 202 294 3,000 3,500 4.77 Bearing Number Boundary dimensions(mm) Basic load ratings(kN) Limiting speeds(rpm) Mass(Kg) QBT d D B rs min rs1 min Cr Cor Grease Oil (Approx.) NUP2304E 20 52 21 1.1 0.6 42 39 12,000 14,000 0.242 NUP2305E 25 62 24 1.1 1.1 57 56 9,700 11,000 0.386 NUP2306E 30 72 27 1.1 1.1 74.5 77.5 8,300 9,700 0.58 NUP2307E 35 80 31 1.5 1.1 99 109 7,200 8,500 0.78 NUP2308 40 90 33 1.5 1.5 82.5 88 7,000 8,200 0.951 NUP2308E 40 90 33 1.5 1.5 114 122 6,400 7,500 1.06 NUP2309 45 100 36 1.5 1.5 99 104 6,300 7,400 1.27 NUP2309E 45 100 36 1.5 1.5 137 153 5,700 6,800 1.41 NUP2310 50 110 40 2 2 121 131 5,700 6,700 1.7 NUP2310E 50 110 40 2 2 163 187 5,200 6,100 1.9 NUP2311 55 120 43 2 2 148 162 5,200 6,100 2.17 NUP2311E 55 120 43 2 2 201 233 4,700 5,600 2.37 NUP2312 60 130 46 2.1 2.1 169 188 4,800 5,700 2.71 NUP2312E 60 130 46 2.1 2.1 222 262 4,400 5,200 2.96 NUP2313 65 140 48 2.1 2.1 188 212 4,400 5,200 3.27 NUP2313E 65 140 48 2.1 2.1 248 287 4,100 4,800 3.48 NUP2314 70 150 51 2.1 2.1 223 262 4,100 4,800 3.98 NUP2314E 70 150 51 2.1 2.1 274 325 3,800 4,400 4.25 NUP2315 75 160 55 2.1 2.1 258 300 3,800 4,500 4.87 NUP2315E 75 160 55 2.1 2.1 330 395 3,500 4,100 5.25 NUP2316 80 170 58 2.1 2.1 274 330 3,600 4,200 5.79 NUP2316E 80 170 58 2.1 2.1 355 430 3,300 3,900 6.25 NUP2317 85 180 60 3 3 315 380 3,400 4,000 6.7 NUP2317E 85 180 60 3 3 395 485 3,100 3,700 7.16 NUP2318 90 190 64 3 3 325 395 3,200 3,800 7.95 NUP2318E 90 190 64 3 3 435 535 2,900 3,400 8.56 NUP2319 95 200 67 3 3 370 460 3,000 3,500 9.2 NUP2319E 95 200 67 3 3 460 585 2,700 3,200 9.8 NUP2320 100 215 73 3 3 410 505 2,900 3,400 11.7 NUP2320E 100 215 73 3 3 570 715 2,600 3,100 12.8 NUP2322 110 240 80 3 3 605 790 2,600 3,100 17.1 NUP2322E 110 240 80 3 3 675 880 2,400 2,800 19.4 NUP2324 120 260 86 3 3 710 920 2,400 2,800 21.5 NUP2324E 120 260 86 3 3 795 1,030 2,200 2,500 26.1 NUP2326 130 280 93 4 4 840 1,130 2,200 2,600 26.9 NUP2326E 130 280 93 4 4 920 1,230 2,000 2,300 30.9 NUP2328 140 300 102 4 4 920 1,250 2,000 2,300 33.8 NUP2328E 140 300 102 4 4 1,020 1,380 1,800 2,100 38.7 NUP2330 150 320 108 4 4 1,020 1,400 1,900 2,200 40.6 NUP2330E 150 320 108 4 4 1,160 1,600 1,700 2,000 47.2
