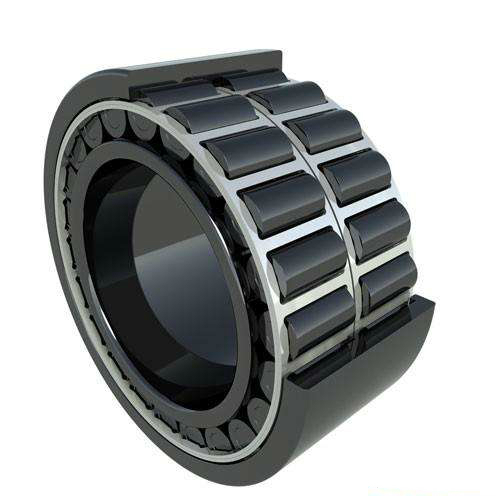

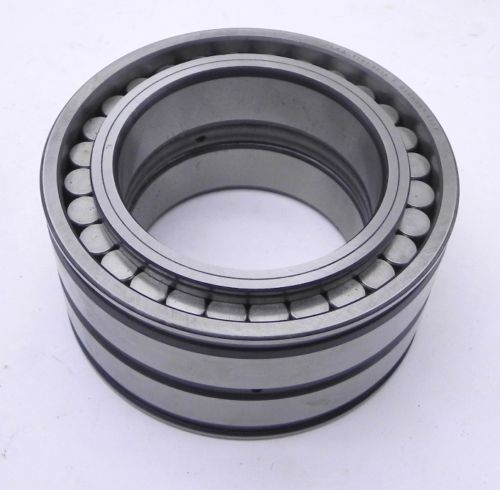

Cylindrical Roller Bearings NNF series
Bearing Number | Boundary Dimensions(mm) | Basic Load Ratings(kN) | Limiting Speeds(rpm) | Mass(Kg) | |||||
QBT | d | D | B | rs min | Cr | Cor | Grease | Oil | (Approx.) |
NN3005 | 25 | 47 | 16 | 0.6 | 25.8 | 30 | 14,000 | 17,000 | 0.124 |
NN3005K | 25 | 47 | 16 | 0.6 | 25.8 | 30 | 14,000 | 17,000 | 0.121 |
NN3006 | 30 | 55 | 19 | 1 | 31 | 37 | 12,000 | 15,000 | 0.199 |
NN3006K | 30 | 55 | 19 | 1 | 31 | 37 | 12,000 | 15,000 | 0.193 |
NN3007 | 35 | 62 | 20 | 1 | 38 | 47.5 | 11,000 | 13,000 | 0.242 |
NN3007K | 35 | 62 | 20 | 1 | 38 | 47.5 | 11,000 | 13,000 | 0.235 |
NN3008 | 40 | 68 | 21 | 1 | 43.5 | 55.5 | 9,700 | 11,000 | 0.312 |
NN3008K | 40 | 68 | 21 | 1 | 43.5 | 55.5 | 9,700 | 11,000 | 0.303 |
NN3009 | 45 | 75 | 23 | 1 | 52 | 68.5 | 8,800 | 10,000 | 0.405 |
NN3009K | 45 | 75 | 23 | 1 | 52 | 68.5 | 8,800 | 10,000 | 0.393 |
NN3010 | 50 | 80 | 23 | 1 | 53 | 72.5 | 8,000 | 9,400 | 0.433 |
NN3010K | 50 | 80 | 23 | 1 | 53 | 72.5 | 8,000 | 9,400 | 0.419 |
NN3011 | 55 | 90 | 26 | 1.1 | 69.5 | 96.5 | 7,300 | 8,600 | 0.651 |
NN3011K | 55 | 90 | 26 | 1.1 | 69.5 | 96.5 | 7,300 | 8,600 | 0.631 |
NN3012 | 60 | 95 | 26 | 1.1 | 71 | 102 | 6,700 | 7,900 | 0.704 |
NN3012K | 60 | 95 | 26 | 1.1 | 71 | 102 | 6,700 | 7,900 | 0.683 |
NN3013 | 65 | 100 | 26 | 1.1 | 75 | 111 | 6,200 | 7,300 | 0.758 |
NN3013K | 65 | 100 | 26 | 1.1 | 75 | 111 | 6,200 | 7,300 | 0.735 |
NN3014 | 70 | 110 | 30 | 1.1 | 94.5 | 143 | 5,800 | 6,800 | 1.04 |
NN3014K | 70 | 110 | 30 | 1.1 | 94.5 | 143 | 5,800 | 6,800 | 1.01 |
NN3015 | 75 | 115 | 30 | 1.1 | 96.5 | 149 | 5,400 | 6,300 | 1.14 |
NN3015K | 75 | 115 | 30 | 1.1 | 96.5 | 149 | 5,400 | 6,300 | 1.11 |
NN3016 | 80 | 125 | 34 | 1.1 | 116 | 179 | 5,100 | 5,900 | 1.52 |
NN3016K | 80 | 125 | 34 | 1.1 | 116 | 179 | 5,100 | 5,900 | 1.47 |
NN3017 | 85 | 130 | 34 | 1.1 | 122 | 194 | 4,800 | 5,600 | 1.61 |
NN3017K | 85 | 130 | 34 | 1.1 | 122 | 194 | 4,800 | 5,600 | 1.56 |
NN3018 | 90 | 140 | 37 | 1.5 | 143 | 228 | 4,500 | 5,300 | 2.07 |
NN3018K | 90 | 140 | 37 | 1.5 | 143 | 228 | 4,500 | 5,300 | 2.01 |
NN3019 | 95 | 145 | 37 | 1.5 | 146 | 238 | 4,300 | 5,000 | 2.17 |
NN3019K | 95 | 145 | 37 | 1.5 | 146 | 238 | 4,300 | 5,000 | 2.1 |
NN3020 | 100 | 150 | 37 | 1.5 | 153 | 256 | 4,000 | 4,800 | 2.26 |
NN3020K | 100 | 150 | 37 | 1.5 | 153 | 256 | 4,000 | 4,800 | 2.19 |
NN3021 | 105 | 160 | 41 | 2 | 198 | 320 | 3,800 | 4,500 | 2.89 |
NN3021K | 105 | 160 | 41 | 2 | 198 | 320 | 3,800 | 4,500 | 2.8 |
NN3022 | 110 | 170 | 45 | 2 | 229 | 375 | 3,600 | 4,300 | 3.69 |
NN3022K | 110 | 170 | 45 | 2 | 229 | 375 | 3,600 | 4,300 | 3.56 |
NN3024 | 120 | 180 | 46 | 2 | 233 | 390 | 3,300 | 3,900 | 3.98 |
NN3024K | 120 | 180 | 46 | 2 | 233 | 390 | 3,300 | 3,900 | 3.83 |
NN3026 | 130 | 200 | 52 | 2 | 284 | 475 | 3,100 | 3,600 | 5.92 |
NN3026K | 130 | 200 | 52 | 2 | 284 | 475 | 3,100 | 3,600 | 5.71 |
NN3028 | 140 | 210 | 53 | 2 | 298 | 515 | 2,800 | 3,300 | 6.44 |
NN3028K | 140 | 210 | 53 | 2 | 298 | 515 | 2,800 | 3,300 | 6.21 |
NN3030 | 150 | 225 | 56 | 2.1 | 335 | 585 | 2,600 | 3,100 | 7.81 |
NN3030K | 150 | 225 | 56 | 2.1 | 335 | 585 | 2,600 | 3,100 | 7.53 |
