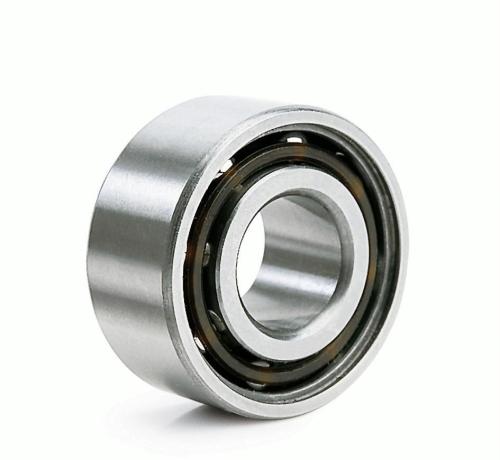

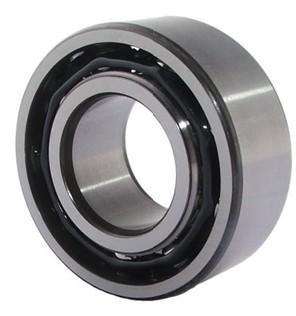

Deep Groove Ball Bearings 42, 43 series

Deep Groove Ball Bearings 42, 43 series

Product Name:

Deep Groove Ball Bearings 42, 43 series

Model :

4200A, 4201A, 4202A, 4203A, 4300A, 4302A

Product Description:

Deep Groove Ball Bearings 42, 43 series

Bearing Number	Boundary Dimensions(mm)			Basic Load Ratings(kN)		Mass(Kg)
Bearing Number	d	D	B	Cr(N)	Cor(N)	(Approx.)
4200A	10	30	14	9230	5200	0.049
4201A	12	32	14	10600	6200	0.053
4301A	12	37	17	13000	7800	0.092
4202A	15	35	14	11900	7500	0.059
4302A	15	42	17	14800	9500	0.12
4203A	17	40	16	14800	9500	0.09
4303A	17	47	19	19500	13200	0.16
4204A	20	47	18	17800	12500	0.14
4304A	20	52	21	23400	16000	0.21
4205A	25	52	18	19000	14600	0.16
4305A	25	62	24	31900	22400	0.34
4206A	30	62	20	26000	20800	0.26
4306A	30	72	27	41000	30000	0.5
4207A	35	72	23	35100	28500	0.4
4307A	35	80	31	50700	38000	0.69
4208A	40	80	23	37100	32500	0.5
4308A	40	90	33	55900	45000	0.95
4209A	45	85	23	39000	36000	0.54
4309A	45	100	36	68900	56000	1.25
4210A	50	90	23	41000	40000	0.58
4310A	50	110	40	81900	69500	1.7
4211A	55	100	25	44900	44000	0.8
4311A	55	120	43	97500	83000	2.15
4212A	60	110	28	57200	55000	1.1
4312A	60	130	46	112000	98000	2.65
4213A	65	120	31	67600	67000	1.45
4313A	65	140	48	121000	106000	3.25
4214A	70	125	31	70200	73500	1.5
4215A	75	130	31	72800	80000	1.6
4216A	80	140	33	80600	90000	2
