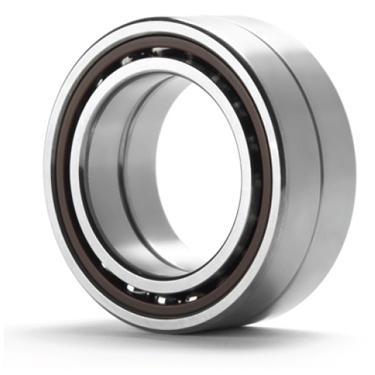

Angular Contact Ball Bearings
DB,DF,DT series Bearing Number d D B rmin r1min back-to-back arrangement face-to-face arrangement tandem arrangement 7005C/DB 7005C/DF 7005C/DT 25 47 24 1.6 0.15 7005AC/DB 7005AC/DF 7005AC/DT 7006C/DB 7006C/DF 7006C/DT 30 55 26 1 0.3 7006AC/DB 7006AC/DF 7006AC/DT 7007C/DB 7007C/DF 7007C/DT 35 62 28 1 0.3 7007AC/DB 7007AC/DF 7007AC/DT 7008C/DB 7008C/DF 7008C/DT 40 68 30 1 0.3 7008AC/DB 7008AC/DF 7008AC/DT 7009C/DB 7009C/DF 7009C/DT 45 75 32 1 0.3 7009AC/DB 7009AC/DF 7009AC/DT 7010C/DB 7010C/DF 7010C/DT 50 80 32 1 0.3 7010AC/DB 7010AC/DF 7010AC/DT 7011C/DB 7011C/DF 7011C/DT 55 90 36 1.1 0.6 7011AC/DB 7011AC/DF 7011AC/DT 7012C/DB 7012C/DF 7012C/DT 60 95 36 1.1 0.6 7012AC/DB 7012AC/DF 7012AC/DT 7013C/DB 7013C/DF 7013C/DT 65 100 36 1.1 0.6 7013AC/DB 7013AC/DF 7013AC/DT 7014C/DB 7014C/DF 7014C/DT 70 110 40 1.1 0.6 7014AC/DB 7014AC/DF 7014AC/DT 7205C/DB 7205C/DF 7205C/DT 25 52 30 1 0.3 7205AC/DB 7205AC/DF 7205AC/DT 7205B/DB 7205B/DF 7205B/DT 7206C/DB 7206C/DF 7206C/DT 30 62 32 1 0.3 7206AC/DB 7206AC/DF 7206AC/DT 7206B/DB 7206B/DF 7206B/DT 7207C/DB 7207C/DF 7207C/DT 35 72 34 1.1 0.6 7207AC/DB 7207AC/DF 7207AC/DT 7207B/DB 7207B/DF 7207B/DT 7208C/DB 7208C/DF 7208C/DT 40 80 36 1.1 0.6 7208AC/DB 7208AC/DF 7208AC/DT 7208B/DB 7208B/DF 7208B/DT 7209C/DB 7209C/DF 7209C/DT 45 85 38 1.1 0.6 7209AC/DB 7209AC/DF 7209AC/DT 7209B/DB 7209B/DF 7209B/DT 7210C/DB 7210C/DF 7210C/DT 50 90 40 1.1 0.6 7210AC/DB 7210AC/DF 7210AC/DT 7210B/DB 7210B/DF 7210B/DT 7211C/DB 7211C/DF 7211C/DT 55 100 42 1.5 0.6 7211AC/DB 7211AC/DF 7211AC/DT 7211B/DB 7211B/DF 7211B/DT 7212C/DB 7212C/DF 7212C/DT 60 110 44 1.5 0.6 7212AC/DB 7212AC/DF 7212AC/DT 7212B/DB 7212B/DF 7212B/DT 7213C/DB 7213C/DF 7213C/DT 65 120 46 1.5 0.6 7213AC/DB 7213AC/DF 7213AC/DT 7213B/DB 7213B/DF 7213B/DT 7214C/DB 7215C/DF 7214C/DT 70 125 48 1.5 0.6 7214AC/DB 7215AC/DF 7214AC/DT 7214B/DB 7215B/DF 7214B/DT 7215C/DB 7215C/DF 7215C/DT 75 130 50 1.5 0.6 7215AC/DB 7215AC/DF 7215AC/DT 7215B/DB 721B/DF 7215B/DT 7216C/DB 7216C/DF 7216C/DT 80 140 52 2 1 7216AC/DB 7216AC/DF 7216AC/DT 7216B/DB 7216B/DF 7216B/DT 7218C/DB 7218C/DF 7218C/DT 90 160 60 2 1 7218AC/DB 7218AC/DF 7218AC/DT 7218B/DB 7218B/DF 7218B/DT 7220C/DB 7220C/DF 7220C/DT 100 180 68 2.1 1.1 7220AC/DB 7220AC/DF 7220AC/DT 7220B/DB 7220B/DF 7220B/DT 7305C/DB 7305C/DF 7305C/DT 25 62 34 1.1 0.6 7305AC/DB 7305AC/DF 7305AC/DT 7305B/DB 7305B/DF 7305B/DT 7306C/DB 7306C/DF 7306C/DT 30 72 38 1.1 0.6 7306AC/DB 7306AC/DF 7306AC/DT 7306B/DB 7306B/DF 7306B/DT 7307C/DB 7307C/DF 7307C/DT 35 80 42 1.5 0.6 7307AC/DB 7307AC/DF 7307AC/DT 7307B/DB 7307B/DF 7307B/DT 7308C/DB 7308C/DF 7308C/DT 40 90 46 1.5 0.6 7308AC/DB 7308AC/DF 7308AC/DT 7308B/DB 7308B/DF 7308B/DT 7309C/DB 7309C/DF 7309C/DT 45 100 50 1.5 0.6 7309AC/DB 7309AC/DF 7309AC/DT 7309B/DB 7309A/DF 7309B/DT 7310C/DB 7310C/DF 7310C/DT 50 110 54 2 1 7310AC/DB 7310AC/DF 7310AC/DT 7310B/DB 7310B/DF 7310B/DT 7311C/DB 7311C/DF 7311C/DT 55 120 58 2 1 7311AC/DB 7311AC/DF 7311AC/DT 7311B/DB 7311B/DF 7311B/DT 7312C/DB 7312C/DF 7312C/DT 60 130 62 2.1 1.1 7312AC/DB 7312AC/DF 7312AC/DT 7312B/DB 7312B/DF 7312B/DT 7313C/DB 7313C/DF 7313C/DT 65 140 66 2.1 1.1 7313AC/DB 7313AC/DF 7313AC/DT 7313B/DB 7313B/DF 7313B/DT 7314C/DB 7314C/DF 7314C/DT 70 150 70 2.1 1.1 7314AC/DB 7314AC/DF 7314AC/DT 7314B/DB 7314B/DF 7314B/DT Bearing Number d D B rmin r1min back-to-back arrangement face-to-face arrangement tandem arrangement 7005C/DB 7005C/DF 7005C/DT 25 47 24 1.6 0.15 7005AC/DB 7005AC/DF 7005AC/DT 7006C/DB 7006C/DF 7006C/DT 30 55 26 1 0.3 7006AC/DB 7006AC/DF 7006AC/DT 7007C/DB 7007C/DF 7007C/DT 35 62 28 1 0.3 7007AC/DB 7007AC/DF 7007AC/DT 7008C/DB 7008C/DF 7008C/DT 40 68 30 1 0.3 7008AC/DB 7008AC/DF 7008AC/DT 7009C/DB 7009C/DF 7009C/DT 45 75 32 1 0.3 7009AC/DB 7009AC/DF 7009AC/DT 7010C/DB 7010C/DF 7010C/DT 50 80 32 1 0.3 7010AC/DB 7010AC/DF 7010AC/DT 7011C/DB 7011C/DF 7011C/DT 55 90 36 1.1 0.6 7011AC/DB 7011AC/DF 7011AC/DT 7012C/DB 7012C/DF 7012C/DT 60 95 36 1.1 0.6 7012AC/DB 7012AC/DF 7012AC/DT 7013C/DB 7013C/DF 7013C/DT 65 100 36 1.1 0.6 7013AC/DB 7013AC/DF 7013AC/DT 7014C/DB 7014C/DF 7014C/DT 70 110 40 1.1 0.6 7014AC/DB 7014AC/DF 7014AC/DT 7205C/DB 7205C/DF 7205C/DT 25 52 30 1 0.3 7205AC/DB 7205AC/DF 7205AC/DT 7205B/DB 7205B/DF 7205B/DT 7206C/DB 7206C/DF 7206C/DT 30 62 32 1 0.3 7206AC/DB 7206AC/DF 7206AC/DT 7206B/DB 7206B/DF 7206B/DT 7207C/DB 7207C/DF 7207C/DT 35 72 34 1.1 0.6 7207AC/DB 7207AC/DF 7207AC/DT 7207B/DB 7207B/DF 7207B/DT 7208C/DB 7208C/DF 7208C/DT 40 80 36 1.1 0.6 7208AC/DB 7208AC/DF 7208AC/DT 7208B/DB 7208B/DF 7208B/DT 7209C/DB 7209C/DF 7209C/DT 45 85 38 1.1 0.6 7209AC/DB 7209AC/DF 7209AC/DT 7209B/DB 7209B/DF 7209B/DT 7210C/DB 7210C/DF 7210C/DT 50 90 40 1.1 0.6 7210AC/DB 7210AC/DF 7210AC/DT 7210B/DB 7210B/DF 7210B/DT 7211C/DB 7211C/DF 7211C/DT 55 100 42 1.5 0.6 7211AC/DB 7211AC/DF 7211AC/DT 7211B/DB 7211B/DF 7211B/DT 7212C/DB 7212C/DF 7212C/DT 60 110 44 1.5 0.6 7212AC/DB 7212AC/DF 7212AC/DT 7212B/DB 7212B/DF 7212B/DT 7213C/DB 7213C/DF 7213C/DT 65 120 46 1.5 0.6 7213AC/DB 7213AC/DF 7213AC/DT 7213B/DB 7213B/DF 7213B/DT 7214C/DB 7215C/DF 7214C/DT 70 125 48 1.5 0.6 7214AC/DB 7215AC/DF 7214AC/DT 7214B/DB 7215B/DF 7214B/DT 7215C/DB 7215C/DF 7215C/DT 75 130 50 1.5 0.6 7215AC/DB 7215AC/DF 7215AC/DT 7215B/DB 721B/DF 7215B/DT 7216C/DB 7216C/DF 7216C/DT 80 140 52 2 1 7216AC/DB 7216AC/DF 7216AC/DT 7216B/DB 7216B/DF 7216B/DT 7218C/DB 7218C/DF 7218C/DT 90 160 60 2 1 7218AC/DB 7218AC/DF 7218AC/DT 7218B/DB 7218B/DF 7218B/DT 7220C/DB 7220C/DF 7220C/DT 100 180 68 2.1 1.1 7220AC/DB 7220AC/DF 7220AC/DT 7220B/DB 7220B/DF 7220B/DT 7305C/DB 7305C/DF 7305C/DT 25 62 34 1.1 0.6 7305AC/DB 7305AC/DF 7305AC/DT 7305B/DB 7305B/DF 7305B/DT 7306C/DB 7306C/DF 7306C/DT 30 72 38 1.1 0.6 7306AC/DB 7306AC/DF 7306AC/DT 7306B/DB 7306B/DF 7306B/DT 7307C/DB 7307C/DF 7307C/DT 35 80 42 1.5 0.6 7307AC/DB 7307AC/DF 7307AC/DT 7307B/DB 7307B/DF 7307B/DT 7308C/DB 7308C/DF 7308C/DT 40 90 46 1.5 0.6 7308AC/DB 7308AC/DF 7308AC/DT 7308B/DB 7308B/DF 7308B/DT 7309C/DB 7309C/DF 7309C/DT 45 100 50 1.5 0.6 7309AC/DB 7309AC/DF 7309AC/DT 7309B/DB 7309A/DF 7309B/DT 7310C/DB 7310C/DF 7310C/DT 50 110 54 2 1 7310AC/DB 7310AC/DF 7310AC/DT 7310B/DB 7310B/DF 7310B/DT 7311C/DB 7311C/DF 7311C/DT 55 120 58 2 1 7311AC/DB 7311AC/DF 7311AC/DT 7311B/DB 7311B/DF 7311B/DT 7312C/DB 7312C/DF 7312C/DT 60 130 62 2.1 1.1 7312AC/DB 7312AC/DF 7312AC/DT 7312B/DB 7312B/DF 7312B/DT 7313C/DB 7313C/DF 7313C/DT 65 140 66 2.1 1.1 7313AC/DB 7313AC/DF 7313AC/DT 7313B/DB 7313B/DF 7313B/DT 7314C/DB 7314C/DF 7314C/DT 70 150 70 2.1 1.1 7314AC/DB 7314AC/DF 7314AC/DT 7314B/DB 7314B/DF 7314B/DT Bearing Number Shielded Sealed Boundary Dimensions(mm) Basic Load Ratings Mass(Kg) d D B Cr(N) Cor(N) (Approx.) 5200 ZZ 2RS 10 30 14 7410 4300 0.051 5300 ZZ 2RS 35 19 10100 5600 0.092 5201 ZZ 2RS 12 32 15.9 10100 5600 0.058 5301 ZZ 2RS 37 19 13000 7300 0.109 5202 ZZ 2RS 15 35 15.9 11200 6800 0.066 5302 ZZ 2RS 42 19 15100 9150 0.13 5203 ZZ 2RS 17 40 17.5 14000 8650 0.096 5303 ZZ 2RS 47 22.2 21200 12500 0.18 5204 ZZ 2RS 20 47 20.6 18600 12000 0.16 5304 ZZ 2RS 52 22.2 22100 14300 0.22 5205 ZZ 2RS 25 52 20.6 20300 14000 0.18 5305 ZZ 2RS 62 25.4 31200 20800 0.35 5206 ZZ 2RS 30 62 23.8 28100 20000 0.29 5306 ZZ 2RS 72 30.2 41000 28500 0.53 5207 ZZ 2RS 35 72 27 37100 27500 0.44 5307 ZZ 2RS 80 34.9 48800 34000 0.73 5208 ZZ 2RS 40 80 30.2 44900 33500 0.58 5308 ZZ 2RS 90 36.5 59200 43000 0.95 5209 ZZ 2RS 45 85 30.2 47500 38000 0.63 5309 ZZ 2RS 100 39.7 72100 73500 1.4 5210 ZZ 2RS 50 90 30.2 47500 39000 0.66 5310 ZZ 2RS 110 44.4 88000 96500 1.95 5211 ZZ 2RS 55 100 33.3 57200 67000 1.05 5311 ZZ 2RS 120 49.2 95200 108000 2.55 5212 ZZ 2RS 60 110 36.5 72100 85000 1.4 5312 ZZ 2RS 130 54 112000 127000 3.25 5213 ZZ 2RS 65 120 38.1 78100 95000 1.75 5313 ZZ 2RS 140 58.7 128000 150000 4.1 5214 ZZ 2RS 70 125 39.7 76500 98000 1.9 5314 ZZ 2RS 150 63.5 147000 173000 5.05 5215 ZZ 2RS 75 130 41.3 84200 110000 2.1 5216 ZZ 2RS 80 140 44.4 101000 134000 2.65 Bearing Number Boundary Dimensions(mm) Basic Load Ratings Mass(Kg) d D B Cr(N) Cor(N) (Approx.) LR50/5NPPU 5 17 7 1650 950 0.01 LR50/6NPPU 6 19 9 2650 1310 0.02 LR50/7NPPU 7 22 10 3300 1690 0.02 LR50/8NPPU 8 24 11 4200 2360 0.03 LR5000KDDU 10 28 12 4750 2850 0.03 LR5000NPPU 28 12 4750 2850 0.03 LR5200KDDU 32 14 6800 4050 0.07 LR5200KDD 32 14 6800 4050 0.07 LR5200NPPU 32 14 6800 4050 0.07 305700C-2Z 32 14 6800 4050 0.07 305800C-2Z 32 14 6800 4050 0.07 LR5001NPPU 12 30 12 4950 3100 0.03 LR5201KDDU 35 15.9 8600 5100 0.08 LR5201KDD 35 15.9 8600 5100 0.08 LR5201NPPU 35 15.9 8600 5100 0.08 LR5301KDDU 42 19 11300 7100 0.12 LR5301KDD 42 19 11300 7100 0.12 LR5301NPPU 42 19 11300 7100 0.12 305701C-2Z 35 15.9 8600 5100 0.08 305801C-2Z 35 15.9 8600 5100 0.08 LR5002NPPU 15 35 13 6500 4100 0.05 LR5202KDDU 40 15.9 9800 6200 0.11 LR5202KDD 40 15.9 9800 6200 0.11 LR5202NPPU 40 15.9 9800 6200 0.11 LR5302KDDU 47 19 14600 9200 0.15 LR5302KDD 47 19 14600 9200 0.15 LR5302NPPU 47 19 14600 9200 0.15 305702C-2Z 40 15.9 9800 6200 0.11 305802C-2Z 40 15.9 9800 6200 0.11 306702C-2Z 47 19 14600 9200 0.15 306802C-2Z 47 19 14600 9200 0.15 LR 5003 NPPU 17 40 14 7700 5200 0.07 LR 5203 KDDU 47 17.5 12600 8200 0.17 LR 5203 KDD 47 17.5 12600 8200 0.17 LR 5203 NPPU 47 17.5 12600 8200 0.17 LR 5303 KDDU 52 22.2 17200 11100 0.21 LR 5303 KDD 52 22.2 17200 11100 0.21 LR 5303 NPPU 52 22.2 17200 11100 0.21 305703C-2Z 47 17.5 12600 8200 0.17 305803C-2Z 47 17.5 12600 8200 0.17 306703C-2Z 52 22.2 17200 11100 0.21 306803C-2Z 52 22.2 17200 11100 0.21 LR 5004 NPPU 20 47 16 11500 7700 0.12 LR 5204 KDDU 52 20.6 15800 10500 0.23 LR 5204 KDD 52 20.6 15800 10500 0.23 LR 5204 NPPU 52 20.6 15800 10500 0.23 LR 5304 KDDU 62 22.2 21100 14500 0.34 LR 5304 KDD 62 22.2 21100 14500 0.34 LR 5304 NPPU 62 22.2 21100 14500 0.34 305704C-2Z 52 20.6 15800 10500 0.23 305804C-2Z 52 20.6 15800 10500 0.23 306704C-2Z 62 22.2 21100 14500 0.34 306804C-2Z 62 22.2 21100 14500 0.34 LR 5005 NPPU 25 52 16 11600 8100 0.15 LR 5205 KDDU 62 20.6 18500 13000 0.34 LR 5205 KDD 62 20.6 18500 13000 0.34 LR 5205 NPPU 62 20.6 18500 13000 0.34 LR 5305 KDDU 72 25.4 27500 19500 0.5 LR 5305 KDD 72 25.4 27500 19500 0.5 LR 5305 NPPU 72 25.4 27500 19500 0.5 305705C-2Z 62 20.6 18500 13000 0.34 305805C-2Z 62 20.6 18500 13000 0.34 306705C-2Z 72 25.4 27500 19500 0.5 306805C-2Z 72 25.4 27500 19500 0.5 LR 5006 NPPU 30 62 19 15800 11800 0.25 LR 5206 KDDU 72 23.8 24600 21400 0.51 LR 5206 KDD 72 23.8 24600 21400 0.51 LR 5206 NPPU 72 23.8 24600 21400 0.51 LR 5306 KDDU 80 30.2 36500 26500 0.67 LR 5306 KDD 80 30.2 36500 26500 0.67 LR 5306 NPPU 80 30.2 36500 26500 0.67 305706C-2Z 72 23.8 24600 21400 0.51 305806C-2Z 72 23.8 24600 21400 0.51 306706C-2Z 80 30.2 36500 26500 0.67 306806C-2Z 80 30.2 36500 26500 0.67 LR 5007 NPPU 35 68 20 17600 13100 0.3 LR 5207 KDDU 80 27 30500 22400 0.66 LR 5207 KDD 80 27 30500 22400 0.66 LR 5207 NPPU 80 27 30500 22400 0.66 LR 5307 KDDU 90 34.9 44500 33000 0.97 LR 5307 KDD 90 34.9 44500 33000 0.97 LR 5307 NPPU 90 34.9 44500 33000 0.97 305707C-2Z 80 27 30500 22400 0.66 305807C-2Z 80 27 30500 22400 0.66 306707C-2Z 90 34.9 44500 33000 0.97 306807C-2Z 90 34.9 44500 33000 0.97 LR 5008 NPPU 40 75 21 18400 14600 0.37 LR 5208 KDDU 85 30.2 34500 25500 0.75 LR 5208 KDD 85 30.2 34500 25500 0.75 LR 5208 NPPU 85 30.2 34500 25500 0.75 LR 5308 KDDU 100 36.5 56000 42000 1.2 LR 5308 KDD 100 36.5 56000 42000 1.2 LR 5308 NPPU 100 36.5 56000 42000 1.2 306708C-2Z 100 36.5 56000 42000 1.2 306808C-2Z 100 36.5 56000 42000 1.2 Bearing Number Boundary Dimensions(mm) Basic Load Ratings Mass(Kg) d D c B dLW D1 Cr(N) Cor(N) (Approx.) LFR 50/5 KDD 5 17 7 8 6 27 1610 890 0.01 LFR 50/8 KDD 8 24 11 11 6 34 4100 2280 0.02 LFR 5201 KDD 12 35 15.9 15.9 10 51.3 8500 5100 0.08 LFR 5201-12 KDD 12 35 15.9 15.9 12 55.5 8300 5000 0.08 LFR 5301 KDD 12 42 19 19 10 58 13000 7700 0.1 LFR 5302 KDD 15 47 19 19 10 63.3 14500 9200 0.17 LFR 5204-16 KDD 20 52 20.6 22.6 16 79 14600 9500 0.23 LFR 5206-20 KDD 25 72 23.8 25.8 20 102 23400 16600 0.25 LFR 5206-25 KDD 25 72 23.8 25.8 25 112 23100 16400 0.25 LFR 5207-30 KDD 30 80 27 29 30 132 28500 20800 0.66 LFR 5208-40 KDD 40 98 36 38 40 155 38500 29000 1.36
Angular Contact Ball Bearings DB,DF,DT series
Angular Contact Ball Bearings 52,53 double row series
Angular Contact Ball Bearings LR5...NPPU, LR5...KDDU, LR5...KDD, 3057...3068 double row series
Angular Contact Ball Bearings LFR5...KDD double row series
