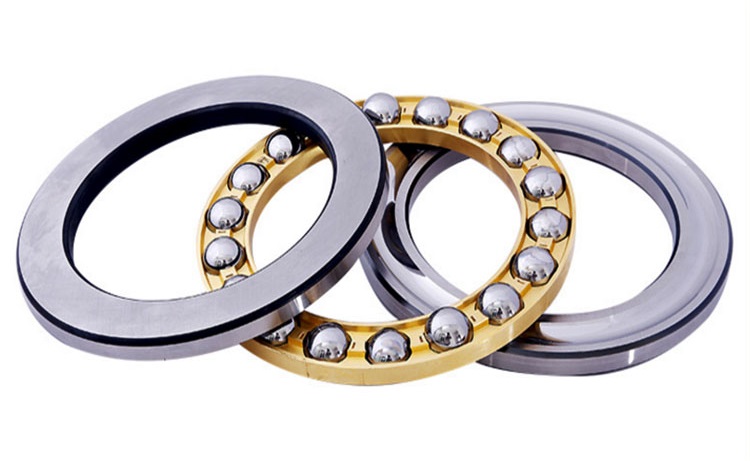

Thrust Ball Bearings

Thrust Ball Bearings

Product Name:

Thrust Ball Bearings

Model :

2900, 2901, 2902, 2903-2915, 53201U, 53202U, 53203U, 53204U, 53205U

Product Description:

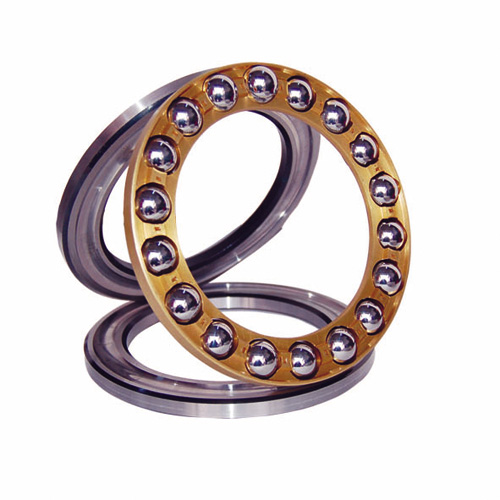

推力球轴承 (2).jpg

One-way trust ball bearing

Bearing Type	Shape Dimension (mm)			Weight (kg)
QBT	d	D	H	Weight (kg)
51100	10	24	9	0.0193
51101	12	26	9	0.0214
51102	15	28	9	0.0243
51103	17	30	9	0.0253
51104	20	35	10	0.038
51105	25	42	11	0.056
51106	30	47	11	0.066
51107	35	52	12	0.083
51108	40	60	13	0.12
51109	45	65	14	0.15
51110	50	70	14	0.16
51111	55	78	16	0.24
51112	60	85	17	0.29
51113	65	90	18	0.324
51114	70	95	18	0.36
51115	75	100	19	0.392
51116	80	105	19	0.433
51117	85	110	19	0.46
51118	90	120	22	0.656
51120	100	135	25	1.0
51122	110	145	25	1.08
51124	120	155	25	1.2
51126	130	170	30	1.80
51128	140	180	31	2.10
51130	150	190	31	2.20
51132	160	200	31	2.30
51200	10	26	11	0.0293
51201	12	28	11	0.0324
51202	15	32	12	0.0444
51203	17	35	12	0.0506
51204	20	40	14	0.0733
51205	25	47	15	0.109
51206	30	52	16	0.138
51207	35	62	18	0.22
51208	40	68	19	0.27
51209	45	73	20	0.32
51210	50	78	22	0.39
51211	55	90	25	0.619
51212	60	95	26	0.69
51213	65	100	27	0.75
51214	70	105	27	0.79
51215	75	110	27	0.815
51216	80	115	28	0.925
51217	85	125	31	1.3
51218	90	135	35	1.77
51220	100	150	38	2.4
51222	110	160	38	2.6
51224	120	170	39	2.9
51226	130	190	45	4.32
51228	140	200	46	4.6
51230	150	215	50	5.8
51232	160	225	51	6.7
51304	20	47	18	0.150
51305	25	52	18	0.171
51306	30	60	21	0.265
51307	35	68	24	0.378
51308	40	78	26	0.55
51309	45	85	28	0.69
51310	50	95	31	1
51311	55	105	35	1.34
51312	60	110	35	1.43
51313	65	115	36	1.57
51314	70	125	40	1.95
51315	75	135	44	2.7
51316	80	140	44	2.8
51317	85	150	49	3.7
51318	90	155	50	3.9
51320	100	170	55	5.1
51322	110	190	63	7.9
51405	25	60	24	0.34
51406	30	70	28	0.36
51407	35	80	32	0.82
51408	40	90	36	1.18
51409	45	100	39	1.64
51410	50	110	43	1.99

Spherical plane thrust bearing

Bearing Type	Shape Dimension (mm)				Weight (kg)
QBT	d	D	d1	H	Weight (kg)
53201U	12	28	30	13	0.036
53202U	15	32	35	15	0.042
53203U	17	35	38	15	0.065
53204U	20	40	42	17	0.095
53205U	25	47	50	19	0.153
53206U	30	52	55	20	0.186
53207U	35	62	65	22	0.292
53208U	40	68	72	23	0.353
53209U	45	73	78	24	0.419
53210U	50	78	82	26	0.504
53211U	55	90	95	30	0.819
53212U	60	95	100	31	0.897
53213U	65	100	105	32	0.93
53214U	70	105	110	32	0.96
53305U	25	52	55	22	0.205
53306U	30	60	62	25	0.79
53308U	40	78	82	31	0.68
53309U	45	85	90	33	0.828
53310U	50	95	100	37	1.19
53315U	75	135	140	52	3.375
53407U	35	80	85	37	0.92
53408U	40	90	95	42	1.13
53410U	50	110	115	50	2.25
53412U	60	130	135	58	3.125

29 series plane thrust bearing

Bearing Type	Shape Dimension (mm)
QBT	d	D	H
2900	10	26	12
2901	12	28	12
2902	15	31	12
2903	18	35	12
2904	20	37	12
2905	25	45	14
2906	30	50	14
2907	35	55	16
2908	40	60	16
2909	45	68	16
2910	50	74	18
2911	55	78	18
2912	60	82	18
2913	65	90	20
2914	70	95	20
2915	75	100	20

Non-standard one-way thrust ball bearing

Bearing Type	Shape Dimension (mm)			Note
QBT	d	D	H	Note
EW-1/2	12.8	24.61	6.35
EW-3/8	9.525	20.637	6.35
EW-1/4	6.35	16.668	6.35
EW-5/16	7.938	19.05	6.35
T-2813	140	160	18
958705K	25	56	16
3915	75	128	41
2925	125	165	27
2560150	38	63.8	13
2021570	15	52	13
0436.0032.00	30	60	14
SS8439-5	50.851	69.596	11.08	Stainless steel
00722	45.2	65	10.75	Stainless steel
75926	40	60	10.75	Stainless steel
