Product Name:

Double row Tapered Roller Bearings

Model :

L44640/L44610, HM88649/HM88610, LM11949/LM11910, 350210, 350310, 350056

Product Description:

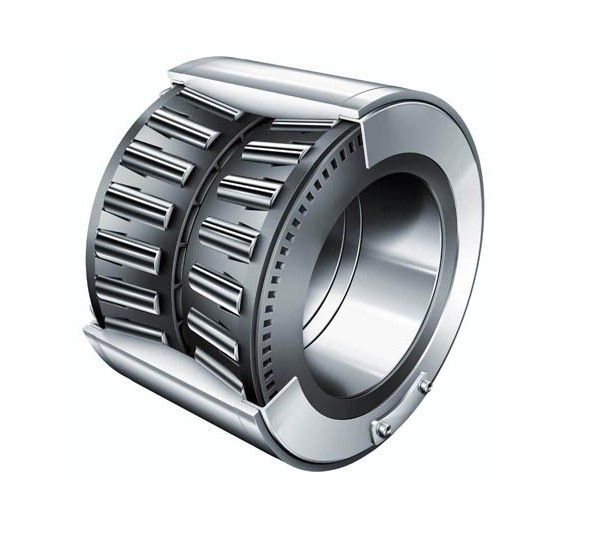

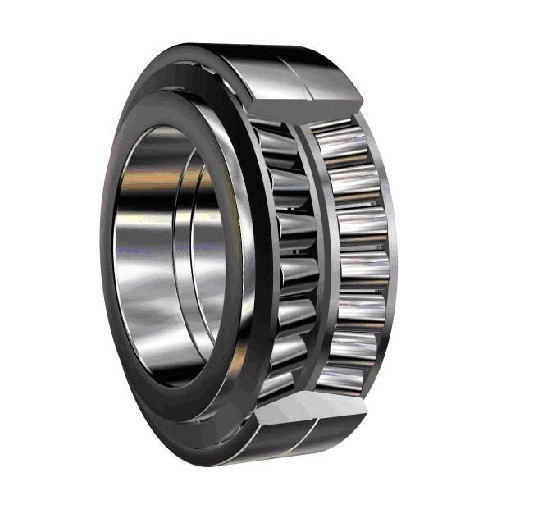

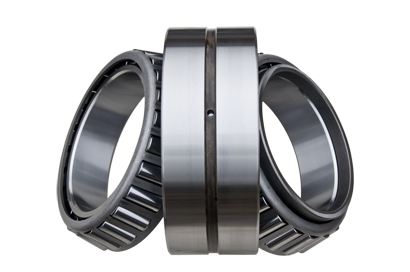

Double row tapered roller bearings

Bearing Number	Boundary Dimensions(mm)					R	R1	Cr	Cor	a	Mass
Bearing Number	d	D	T	B	C	R	R1	(KN)	(KN)	(mm)	(Kg)
L SERIES
L44640/L44610	23.812	50.292	14.224	14.732	10.668	1.5	1.3	28.8	34	10.8	0.137
L44643/L44610	25.4	50.292	14.224	14.732	10.668	1.3	1.3	28.8	34	10.8	0.13
L44649/L44610	26.988	50.292	14.224	14.732	10.668	3.5	1.3	28.8	34	10.8	0.12
L68149/L68110	34.988	59.131	15.875	16.764	11.938	5.6	1.3	35.5	47.5	13.2	0.173
L68149/L68111	34.988	59.974	15.875	16.764	11.938	5.6	1.3	35.5	47.5	13.2	0.179
L610549/L610510	63.5	94.458	19.05	19.05	15.083	1.5	1.5	60.5	103	19.6	0.449
M SERIES
M12649/M12610	21.43	50.005	17.526	18.288	13.97	1.3	1.3	38	39	11.1	0.169
M84548/M84510	25.4	57.15	19.431	19.431	14.732	1.5	1.5	42	48.5	16	0.241
M86649/M86610	30.162	64.292	21.433	21.433	16.67	1.5	1.5	51.5	64.5	18	0.336
M88048/M88010	33.338	68.262	22.225	22.225	17.462	0.8	1.5	56.5	71	19.2	0.378
HM SERIES
HM88649/HM88610	34.925	72.233	25.4	25.4	19.842	2.3	2.3	65	84.5	20.7	0.489
HM88649/HM88611	34.925	71.973	27	25.4	21.443	2.3	1.5	65	84.5	20.7	0.483
HM89443/HM89410	33.338	76.2	29.37	28.575	23.02	0.8	3.3	78	105	23.9	0.688
HM89443/HM89411	33.338	76.2	29.37	28.575	23.02	0.8	0.8	78	105	23.9	0.696
HM89446/HM89410	34.925	76.2	29.37	28.575	23.02	3.5	3.3	78	105	23.6	0.646
HM89446/HM89411	34.925	76.2	29.37	28.575	23.02	3.5	0.8	78	105	23.6	0.655
HM89448/HM89410	36.512	76.2	29.37	28.575	23.02	0.8	3.3	78	105	23.6	0.629
HM89448/HM89411	36.512	76.2	29.37	28.575	23.02	0.8	0.8	78	105	23.6	0.664
HM89449/HM89410	36.512	76.2	29.37	28.575	23.02	3.5	3.3	78	105	23.6	0.626
HM89449/HM89411	36.512	76.2	29.37	28.575	23.02	3.5	0.8	78	105	23.6	0.631
HM212044/HM212010	60.325	122.24	38.1	38.354	29.718	8	1.5	187	244	27	2.03
HM212044/HM212011	60.325	122.24	38.1	38.354	29.718	8	3.3	187	244	27	2.02
HM212046/HM212010	63.5	122.24	38.1	38.354	29.718	3.5	1.5	187	244	27	1.96
HM212046/HM212011	63.5	122.24	38.1	38.354	29.718	3.5	3.3	187	244	27	1.95
HM212047/HM212010	63.5	122.24	38.1	38.354	29.718	7	1.5	187	244	27	1.95
HM212047/HM212011	63.5	122.24	38.1	38.354	29.718	7	3.3	187	244	27	1.94
HM212049/HM212010	66.675	122.24	38.1	38.354	29.718	3.5	1.5	187	244	27	1.86
HM212049/HM212011	66.675	122.24	38.1	38.354	29.718	3.5	3.3	187	244	27	1.85
HM218248/HM218210	89.974	146.98	40	40	32.5	7	3.5	227	340	30.8	2.55
HM518445/HM518410	88.9	152.4	39.688	39.688	30.162	6.4	3.3	253	365	33.1	2.838
HM801346/HM801310	38.1	82.55	29.37	28.575	23.02	0.8	3.3	87	117	24.4	0.767
HM803146/HM803110	41.275	88.9	30.162	29.37	23.02	3.5	3.3	93.5	125	26.1	0.898
HM803149/HM803110	44.45	88.9	30.162	29.37	23.02	3.5	3.3	93.5	125	26.1	0.849
HM807040/HM807010	44.45	104.78	36.512	36.512	28.575	3.5	3.3	138	189	29.3	1.62
HM807044/HM807010	49.212	104.78	36.512	36.512	28.575	3.5	3.3	138	189	29.3	1.52
HM807046/HM807010	50.8	104.78	36.512	36.512	28.575	3.5	3.3	138	189	29.3	1.49
HM807049/HM807010	53.975	104.78	36.512	36.512	28.575	3.5	3.3	138	189	29.3	1.41
HM903249/HM903210	44.45	95.25	30.958	28.575	22.225	3.5	0.8	96	116	30.7	1
HM903249A/HM903210	44.45	95.25	30.958	28.3	22.225	3.5	0.8	96	116	2	0.999
LM SERIES
LM11749/LM11710	17.462	39.878	13.843	14.605	10.688	1.3	1.3	23.8	24.2	8.8	0.084
LM11949/LM11910	19.05	45.237	15.494	16.637	12.065	1.3	1.3	28.3	28.6	9.9	0.122
LM12749/LM12710	22	45.237	15.494	16.637	12.065	1.3	1.3	29.6	34	10	0.115
LM12749/LM12711	21.986	45.974	15.494	16.637	12.065	1.3	1.3	29.6	34	10	0.123
LM48548/LM48510	34.925	65.088	18.034	18.288	13.97	5.6	1.3	46.5	56	14.3	0.249
LM67048/LM67010	31.75	59.131	15.875	16.764	11.811	5.6	1.3	34.5	41	13	0.182
LM78349/LM78310A	34.988	61.973	16.7	17	13.6	1.5	1.5	37	48	14.3	0.209
LM102949/LM102910	45.242	73.431	19.558	19.812	15.748	3.5	0.8	54	76	14.7	0.307
LM104949/LM104911	50.8	82.55	21.59	22.225	16.51	3.5	1.3	69.5	94	16.4	0.419
LM300849/LM300811	40.988	67.975	17.5	18	13.5		1.5	46	62.5	13.9	0.239
LM501349/LM501310	41.275	73.431	19.558	19.812	14.732	3.5	0.8	56	69.5	16.1	0.335
LM501349/LM501314	41.275	73.431	21.43	19.812	16.604	3.5	0.8	56	69.5	18	0.355
LM603049/LM603011	45.242	77.788	19.842	19.842	15.08	3.5	0.8	57.5	73.5	17.5	0.372
LM603049/LM603014	45.242	79.974	19.842	19.842	15.08	3.5	0.8	57.5	73.5	17.5	0.405

Bearing Number	Boundary Dimensions(mm)					R	R1	Cr	Cor	a	Mass
Bearing Number	d	D	T	B	C	R	R1	(KN)	(KN)	(mm)	(Kg)
14100 SERIES
14116/14274	30.226	69.012	19.845	19.583	15.875	0.8	3.3	48.5	58	15.5	0.366
14116/14276	30.226	69.012	19.845	19.583	15.875	0.8	3.3	48.5	58	15.5	0.37
14116/14282	30.226	71.996	19.002	19.583	15.032	0.8	1.5	48.5	58	15.5	0.345
14116/14283	30.226	72.085	22.385	19.583	18.415	0.8	2.3	48.5	58	18.3	0.447
14117A/14274	30	69.012	19.845	19.583	15.875	3.5	3.3	48.5	58	15.7	0.358
14117A/14276	30	69.012	19.845	19.583	15.875	3.5	1.3	48.5	58	15.5	0.369
14117A/14282	30	71.996	19.002	19.583	15.032	3.5	1.5	48.5	58	15.5	0.343
14117A/14283	30	72.085	22.385	19.583	18.415	3.5	2.3	48.5	58	18.3	0.439
14118/14274	30	69.012	19.845	19.202	15.875	0.8	3.3	48.5	58	18.3	0.362
14118/14276	30	69.012	19.845	19.202	15.875	0.8	1.3	48.5	58	18.3	0.37
14118/14282	30	71.996	19.002	19.202	15.032	0.8	1.5	48.5	58	18.3	0.352
14118/14283	30	72.085	22.385	19.202	18.415	0.8	2.3	48.5	58	18.3	0.446
14124/14274	31.75	69.012	19.845	19.583	15.875	0.8	3.3	48.5	58	18.3	0.346
14124/14276	31.75	69.012	19.845	19.583	15.875	0.8	1.3	48.5	58	15.5	0.359
14124/14282	31.75	71.996	19.002	19.583	15.032	0.8	1.5	48.5	58	15.5	0.459
14124/14283	31.75	72.085	22.385	19.583	18.415	0.8	2.3	48.5	58	18.1	0.432
14125A/14274	31.75	69.012	19.845	19.583	15.875	3.5	3.3	48.5	58	15.5	0.348
14125A/14276	31.75	69.012	19.845	19.583	15.875	3.5	1.3	48.5	58	15.5	0.356
14125A/14282	31.75	71.996	19.002	19.583	15.032	3.5	1.5	48.5	58	15.5	0.447
14125A/14283	31.75	72.085	22.385	19.583	18.415	3.5	2.3	48.5	58	15.7	0.412
14131/14274	33.338	69.012	19.845	19.583	15.875	0.8	3.3	48.5	58	15.7	0.338
14131/14276	33.338	69.012	19.845	19.583	15.875	0.8	1.3	48.5	58	15.5	0.346
14131/14282	33.338	71.996	19.002	19.583	15.032	0.8	1.5	48.5	58	15.5	0.435
14131/14283	33.338	72.085	22.385	19.583	18.415	0.8	2.3	48.5	58	18.3	0.419
14136A/14274	34.925	69.012	26.982	26.721	15.875	0.8	3.3	48.5	58	18.3	0.395
14136A/14276	34.925	69.012	26.982	26.721	15.875	0.8	1.3	48.5	58	18.3	0.387
14136A/14282	34.925	71.996	26.139	26.721	15032	0.8	1.5	48.5	58	18.3	0.396
14136A/14283	34.925	72.085	29.522	26.721	18.415	0.8	2.3	48.5	58	18.3	0.432
14137A/14274	34.925	69.012	19.845	19.583	15.875	1.5	3.3	48.5	58	15.5	0.383
14137A/14276	34.925	69.012	19.845	19.583	15.875	1.5	1.3	48.5	58	15.5	0.333
14137A/14282	34.925	71.996	19.002	19.583	15.032	1.5	1.5	48.5	58	15.5	0.423
14137A/14283	34.925	72.085	22.385	19.583	18.415	1.5	2.3	48.5	58	15.5	0.513
14138A/14274	34.925	69.012	19.845	19.583	15.875	3.5	3.3	48.5	58	11.7	0.317
14138A/14276	34.925	69.012	19.845	19.583	15.875	3.5	1.3	48.5	58	15.5	0.331
14138A/14282	34.925	71.996	19.002	19.583	15.032	3.5	1.5	48.5	58	15.5	0.416
14138A/14283	34.925	72.085	22.385	19.583	18.415	3.5	2.3	48.5	58	15.5	0.513
15100 SERIES
15100/15243	25.4	61.912	18.161	19.05	14.288	1.3	2	46.5	54	13.4	0.258
15100/15244	25.4	62	20.638	20.638	15.875	3.5	1.3	46.5	54	13.4	0.297
15100/15245	25.4	62	19.05	20.638	14.288	3.5	1.3	46.5	54	13.4	0.299
15100/15250	25.4	63.5	20.638	20.638	15.875	3.5	1.3	46.5	54	14.6	0.328
15100/15250X	25.4	63.5	20.638	20.638	15.875	3.5	1.5	46.5	54	15	0.326
15101/15243	25.4	61.912	19.05	20.638	14.288	0.8	2	46.5	54	13.4	0.3
15101/15244	25.4	62	20.638	20.638	15.875	0.8	1.3	46.5	54	15	0.315
15101/15245	25.4	62	19.05	20.638	14.288	0.8	1.3	46.5	54	13.4	0.301
15101/15250	25.4	63.5	20.638	20.638	15.875	0.8	1.3	46.5	54	15	0.333
15101/15250X	25.4	63.5	20.638	20.638	15.875	0.8	1.5	46.5	54	15	0.333
15103S/15243	26.162	61.912	19.05	19.939	14.288	0.8	2	46.5	54	15	0.35
15103S/15244	26.162	62	20.638	19.939	15.875	0.8	1.3	46.5	54	15	0.403
15103S/15245	26.162	62	19.05	19.939	14.288	0.8	1.3	46.5	54	15	0.352
15103S/15250	26.162	63.5	20.638	19.939	15.875	0.8	1.3	46.5	54	15	0.412
15103S/15250X	26.162	63.5	20.638	19.939	15.875	0.8	1.5	46.5	54	15	0.41
15106/15243	26.988	61.912	19.05	20.638	14.288	0.8	2	46.5	54	15	0.282
15106/15244	26.988	62	20.638	20.638	15.875	0.8	1.3	46.5	54	15	0.286
15106/15245	26.988	62	19.05	20.638	14.288	0.8	1.3	46.5	54	13.4	0.291
15106/15250	26.988	63.5	20.638	20.638	15.875	0.8	1.3	46.5	54	14.6	0.32
15106/15250X	26.988	63.5	20.638	20.638	15.875	0.8	1.5	46.5	54	14.6	0.319
15112/15250	28.575	63.5	20.638	20.638	15.875	3.5	1.3	46.5	54	14.6	0.288
15113/15243	28.575	61.912	19.505	20.638	14.288	0.8	2	46.5	54	14.6	0.28
15113/15244	28.575	62	20.638	20.638	15.875	0.8	1.3	46.5	54	14.6	0.34
15113/15245	28.575	62	19.05	20.638	14.288	0.8	1.3	46.5	54	13.4	0.28
15113/15250	28.575	63.5	20.638	20.638	15.875	0.8	1.3	46.5	54	14.6	0.308
15113/15250X	28.575	63.5	20.638	20.638	15.875	0.8	1.5	46.5	54	14.6	0.307
15116/15243	30.112	61.912	19.05	20.638	14.288	0.8	2	46.5	54	14.6	0.268
15116/15244	30.112	62	20.638	20.638	15.875	0.8	1.3	46.5	54	14.6	0.328
15116/15245	30.112	62	19.05	20.638	14.288	0.8	1.3	46.5	54	13.4	0.268
15116/15250	30.112	63.5	20.638	20.638	15.875	0.8	1.3	46.5	54	13.4	0.58
15116/15250X	30.112	63.5	20.638	20.638	15.875	0.8	1.5	46.5	54	13.4	0.51
15117/15243	29.987	61.912	19.05	20.638	14.288	1.3	2	46.5	54	13.4	0.291
15117/15244	29.987	62	20.638	20.638	15.875	1.3	1.3	46.5	54	13.4	0.322
15117/15245	29.987	62	19.05	20.638	14.288	1.3	1.3	46.5	54	13.4	0.269
15117/15250	30	63.5	20.638	20.638	15.875	1.3	1.3	46.5	54	15	0.35
15117/15250X	30	63.5	20.638	20.638	15.875	1.5	1.5	45	54.5	14.8	0.349
15118/15243	30.213	61.912	19.05	20.638	14.288	2	2	45	54.5	14.8	0.349
15118/15244	30.213	62	20.638	20.638	15.875	1.3	1.3	45	54.5	14.8	0.376
15118/15245	30.213	62	19.05	20.638	14.288	1.3	1.3	46.5	54.5	13.4	0.265
15118/15250	30.213	63.5	20.638	20.638	15.875	1.3	1.3	45	54.5	13.2	0.315
15118/15250X	30.213	63.5	20.638	20.638	15.875	1.5	1.5	45	54.5	13.2	0.314
15119/15243	30.213	61.912	19.05	20.638	14.288	2	2	45	54.5	13.2	0.267
15119/15244	30.213	62	20.638	20.638	15.875	1.3	1.3	45	54.5	13.2	0.317
15119/15245	30.213	62	19.05	20.638	14.288	1.3	1.3	46.5	54	13.4	0.267
15119/15250	30.213	63.5	20.638	20.638	15.875	1.3	1.3	46.5	54	13.4	0.327
15119/15250X	30.213	63.5	20.638	20.638	15.875	1.5	1.5	46.5	54	13.4	0.325
15120/15243	30.213	61.912	19.05	20.638	14.288	0.8	2	46.5	54	13.4	0.267
15120/15244	30.213	62	20.638	20.638	15.875	0.8	1.3	46.5	54	13.4	0.324
15120/05245	30.213	62	19.05	20.638	14.288	0.8	1.3	46.5	54	13.4	0.267
15120/15250	30.213	63.5	20.688	20.638	15.875	0.8	1.3	46.5	54	13.4	0.294
15120/15250X	30.213	63.5	20.638	20.638	15.875	0.8	1.5	45	54.5	13.2	0.294
15123/15243	31.75	61.912	18.161	19.05	14.288	*	2	46.5	54	13.4	0.244
15123/15244	31.75	62	19.749	19.05	15.875	*	1.3	46.5	54	13.4	0.274
15123/15245	31.75	62	18.161	19.05	14.288	5.6	1.3	46.5	54	13.4	0.244
15123/15250	31.75	63.5	20.638	19.05	15.875	*	1.3	45	54.5	13.2	0.74
15123/15250X	31.75	63.5	20.638	19.05	15.875	*	1.5	45	54.5	13.2	0.273
15125/15243	31.75	61.912	18.161	19.05	14.288	*	2	45	54.5	13.2	0.243
12125/15244	31.75	62	20.638	20.638	15.875	3.5	1.3	45	54.5	13.2	0.263
15125/15245	31.75	62	19.05	20.638	14.288	3.5	1.3	46.5	54	13.4	0.253
15125/15250	31.75	63.5	20.638	20.638	15.875	3.5	1.3	45	54.5	13.3	0.293
15125/15250X	31.75	63.5	20.638	20.638	15.875	3.5	1.5	45	54.5	13.3	0.291
15126/15243	31.75	61.912	19.05	20.638	14.288	0.8	2	45	54.5	13.3	0.255
15126/15244	31.75	62	20.638	20.638	15.875	0.8	1.3	45	54.5	13.3	0.315
15126/15245	31.75	62	19.05	20.638	14.288	0.8	1.3	46.5	54	13.4	0.255
15126/15250	31.75	63.5	20.638	20.638	15.875	0.8	1.3	46.5	54	15	0.315
15126/15250X	31.75	63.5	20.638	20.638	15.875	0.8	1.5	45	54.5	13.3	0.312
15500 SERIES
15578/15520	25.4	57.15	17.463	17.462	13.495	1.3	1.5	39.5	45.5	12.7	0.216
15580/15520	26.988	57.15	17.463	17.462	13.495	3.5	1.5	39.5	45.5	12.7	0.206
15590/15520	28.575	57.15	17.462	17.462	13.495	3.5	1.5	39.5	45.5	12.7	0.196
16100SERIES
16150/16282	38.1	72	19	20.638	14.237	3.5	1.5	48	58.5	15	0.331
16150/16284	38.1	72.238	20.638	20.638	15.875	3.5	1.3	48	58.5	16.6	0.355
18000SERIES
18590/18520	41.275	73.025	16.667	17.462	12.7	3.5	1.5	46	55.5	14.5	0.281
18685/18620	44.45	79.375	17.462	17.462	13.495	2.8	1.5	45.5	56	16	0.345
18690/18620	46.038	79.375	17.462	17.462	13.495	2.8	1.5	45.5	56	16	0.329
18780/18720	46.038	85	17.462	17.462	13.495	2.3	1.5	49.5	65	16.7	0.42
18790/18720	50.8	85	17.462	17.462	13.495	3.5	1.5	49.5	65	17.3	0.374

Bearing Number	Boundary Dimensions(mm)					R	R1	Cr	Cor	a	Mass
Bearing Number	d	D	T	B	C	R	R1	(KN)	(KN)	(mm)	(Kg)
22700 SERIES
22780/22720	42.862	82.55	26.195	26.988	20.638	3.5	3.3	75.5	97	19.8	0.617
23000 SERIES
23100/23250X	25.4	63.5	21.692	21.463	14.681	1.5	2.3	47	50.5	20	0.32
23100/23256	25.4	65.088	22.225	21.463	15.875	1.5	1.5	47	50.5	20	0.36
24700 SERIES
24780/24720	41.275	76.2	22.225	23.02	17.462	3.5	0.8	65	80.5	17.4	0.432
24780/24721	41.275	76.2	25.4	23.02	20.638	3.5	2.3	65	80.5	20.2	0.482
24780/24722	41.275	76.2	22.225	23.02	17.462	3.5	3.3	65	80.5	20.2	0.412
25500 SERIES
25577/25519	42.875	82.55	23.813	25.4	19.05	3.5	2	76	98	17.5	0.573
25577/25520	42.875	82.931	23.812	25.4	19.05	3.5	0.8	76	98	17.5	0.581
25577/25521	42.875	82.058	23.812	25.4	19.05	3.5	3.3	76	98	17.5	0.574
25577/25522	42.875	83.058	23.876	25.4	19.114	3.5	2	83.8	111	30.3	0.58
25577/25523	42.875	82.931	26.988	25.4	22.225	3.5	2.3	76	98	20.8	0.621
25577/25526	42.875	85	23.813	25.4	19.05	3.5	2.3	76	98	20.8	0.613
25578/25519	42.862	82.55	23.812	25.4	19.05	2.3	2	76	98	20.8	0.578
25578/25520	42.862	82.931	23.812	25.4	19.05	2.3	0.8	76	98	17.6	0.584
25578/25521	42.862	83.058	23.812	25.4	19.05	2.3	3.3	76	98	17.6	0.58
25578/25522	42.862	83.058	23.876	25.4	19.114	2.3	2	76	98	17.6	0.565
25578/25523	42.862	82.931	26.988	25.4	22.225	2.3	2.3	76	98	20.8	0.663
25578/25526	42.862	85	23.813	25.4	19.05	2.3	2.3	76	98	20.8	0.619
25580/25519	44.45	82.55	23.812	25.4	19.05	3.5	2	76	98	20.8	0.556
25580/25520	44.45	82.931	23.812	25.4	19.05	3.5	0.8	76	98	17.6	0.56
25580/25521	44.45	83.058	23.812	25.4	19.05	3.5	3.3	76	98	17.6	0.553
25580/25522	44.45	83.058	23.876	25.4	19.114	3.5	2	76	98	17.6	0.556
25580/25523	44.45	82.931	26.988	25.4	22.225	3.5	2.3	78.5	98	17.6	0.695
25580/25526	44.45	85	23.813	25.4	19.05	3.5	2.3	78.5	98	17.6	0.519
25583/25519	44.45	82.55	34.29	35.878	19.05	*	2	78.5	98	17.6	0.653
25583/25520	44.45	82.931	34.29	35.878	19.05	*	0.8	78.5	98	17.6	0.646
25583/25521	44.45	83.058	34.29	35.878	19.05	*	3.3	78.5	98	17.6	0.643
25583/25522	44.45	83.058	34.354	35.878	19.114	*	2	78.5	98	17.6	0.648
25583/25523	44.45	82.931	37.465	35.878	22.225	*	2.3	78.5	98	17.6	0.795
25583/25526	44.45	85	34.29	35.878	19.05	*	2.3	78.5	98	17.6	0.598
25584/25519	44.983	823550	23.813	25.4	19.05	1.5	2	78.5	98	17.6	0.605
25584/25520	44.983	82.931	23.812	25.4	19.05	1.5	0.8	76	98	17.6	0.555
25584/25521	44.983	83.058	23.812	25.4	19.05	1.5	3.3	76	98	17.6	0.552
25584/25522	44.983	83.058	23.876	25.4	19.114	1.5	2	76	98	17.6	0.554
25584/25523	44.983	82.931	26.988	25.4	22.225	1.5	2.3	76	98	20.8	0.599
25584/25526	44.983	85	23.813	25.4	19.05	1.5	2.3	76	98	20.8	0.486
25590/25519	45.618	82.55	23.812	25.4	19.05	3.5	2	76	98	17.6	0.534
25590/25520	45.618	82.931	23.812	25.4	19.05	3.5	2	76	98	17.5	0.543
25590/25521	45.618	83.058	23.812	25.4	19.05	3.5	2.3	76	98	17.5	0.541
25590/25522	45.618	83.058	23.876	25.4	19.114	3.5	2	76	98	17.5	0.545
25590/25523	45.618	82.931	26.988	25.4	22.225	3.5	2.3	76	98	17.5	0.588
25590/25526	45.618	85	23.812	25.4	19.05	3.5	2.3	76	98	17.5	0.581
25800 SERIES
25877/25820	34.925	73.025	23.812	24.608	19.05	1.5	2.3	71	85	15.6	0.471
25877/25821	34.925	73.025	23.812	24.608	19.05	1.5	0.8	71	85	15.6	0.474
25878/25820	34.925	73.025	23.812	24.608	19.05	3.5	2.3	71	85	15.6	0.456
25878/25821	34.925	73.025	23.812	24.608	19.05	3.5	0.8	71	85	15.6	0.471
25880/25820	38.1	80.035	24.608	23.698	18.512	0.8	1.5	71	85	15.6	0.467
25880/25821	34.487	73.025	23.812	24.608	19.05	1.5	0.8	71	85	15.6	0.457
27600 SERIES
27687/27620	82.55	125.41	25.4	25.4	19.845	3.5	1.5	102	163	24.7	1.07
27800 SERIES
27880/27820	38.1	80.035	24.608	23.698	18.512	0.8	1.5	67	82.5	21.8	0.562
27880/27820D	38.1	80.035	57.15	23.698	44.958	0.8	0.8	67	82.5	21.8	0.763
28100 SERIES
28158/28300	40	76.2	20.638	20.94	15.507	1.5	1.3	55.5	63	16.1	0.386
28500 SERIES
28580/28520	50.8	89.98	24.75	25.4	19.987	3.5	2.3	83.5	116	19.9	0.651
28580/28521	50.8	92.075	24.608	25.4	19.845	3.5	0.8	83.5	116	19.9	0.703
28584/28520	52.388	89.98	24.75	25.4	19.987	3.5	2.3	83.5	116	19.9	0.625
28584/28521	52.388	92.075	24.608	25.4	19.845	3.5	0.8	83.5	116	19.9	0.677
28600 SERIES
28678/28621	50.8	96.838	24.608	24.608	19.446	3.5	0.8	88.5	128	21.2	0.834
28678/28622	50.8	97.63	24.608	24.608	19.446	3.5	0.8	88.5	128	21.2	0.852
28680/28622	55.562	97.63	24.608	24.608	19.446	3.5	0.8	88.5	128	21.2	0.774
28682/28621	57.15	96.838	24.608	24.608	19.446	3.5	0.8	88.5	128	21.2	0.725
28682/28622	57.15	97.63	24.608	24.608	19.446	3.5	0.8	88.5	128	21.2	0.747
28900 SERIES
28980/28920	59.977	101.6	25.4	25.4	19.845	3.5	3.3	90.5	134	22.8	0.818
28980/28921	59.977	100	25.4	25.4	19.845	3.5	3.3	90.5	134	22.8	0.779
28985/28920	60.325	101.6	25.4	25.4	19.845	3.5	3.3	90.5	134	22.8	0.811
28985/28921	60.325	100	25.4	25.4	19.845	3.5	3.3	90.5	134	22.8	0.772
29500 SERIES
29585/29520	63.5	107.95	25.4	25.4	19.05	3.5	3.3	91.5	140	24.6	0.924
29590/29522	66.675	107.95	25.4	25.4	19.05	3.5	0.8	91.5	140	24.6	0.869
29600 SERIES
29675/29620	69.85	112.71	25.4	25.4	19.05	1.5	3.3	95.5	151	26.2	0.949
29675/29630	69.85	120.65	25.4	25.4	19.05	1.5	3.3	95.5	151	26.2	1.17
29685/29620	73.025	112.71	25.4	25.4	19.05	3.5	3.3	95.5	151	26.2	0.873
29685/29630	73.025	120.65	25.4	25.4	19.05	3.5	3.3	95.5	151	26.2	1.094

Bearing Number
Boundary Dimensions(mm)
R
R1
Cr
Cor
a
Mass
d
D
T
B
C
(KN)
(KN)
(mm)
(Kg)
31500 SERIES

31593/31520
34.925
76.2
29.37
28.575
23.812
3.5
3.3
80.5
97
21.5
0.625
31594/31520
34.925
76.2
29.37
28.575
23.812
1.5
3.3
80.5
97
21.5
0.627
31597/31520
36.512
76.2
29.37
28.575
23.812
3.5
3.3
80.5
97
21.5
0.605
33200 SERIES

33225/33462
57.15
117.48
30.162
30.162
23.812
3.5
3.3
117
175
27.8
1.58
33225/33472
57.15
120
29.794
30.162
23.444
3.5
0.8
117
175
27.8
1.669
33262/33462
66.675
117.48
30.163
30.162
23.812
3.5
3.3
117
175
27.8
1.36
33262/33472
66.675
120
29.794
30.162
23.444
3.5
0.8
117
175
27.8
1.45
33275/33462
69.85
117.48
30.162
30.162
23.812
3.5
3.3
117
175
27.8
1.28
33275/33472
69.85
120
29.794
30.162
23.444
3.5
0.8
117
175
27.8
1.37
33281/33462
71.438
117.48
30.162
30.162
23.812
3.5
3.3
117
175
27.8
1.24
33281/33472
71.438
120
29.794
30.162
23.444
3.5
0.8
117
175
27.8
1.329
33287/33462
73.025
117.48
30.162
30.162
23.812
3.5
3.3
117
175
27.8
1.19
33287/33472
73.025
120
29.794
30.162
23.444
3.5
0.8
117
175
27.8
1.28
39500 SERIES

39581/39520
57.15
112.71
30.162
30.162
23.812
8
3.3
138
195
23.3
1.4
39585/39520
63.5
112.71
30.162
30.162
23.812
3.5
3.3
138
195
23.3
1.27
39590/39520
66.675
112.71
30.162
30.162
23.812
3.5
3.3
138
195
23.3
1.19

Bearing Number
Boundary Dimensions(mm)
R
R1
Cr
Cor
a
Mass
d
D
T
B
C
(KN)
(KN)
(mm)
(Kg)
41000 SERIES

41125/41286
28.575
72.626
24.608
24.257
17.462
4.8
1.5
58
55.5
20.7
0.477
42000 SERIES

42346/42584
87.96
148.43
28.575
28.971
21.433
3
3
138
215
31.6
1.99
42346/42587
87.96
149.23
31.75
28.971
24.608
3
3.3
138
215
31.6
2.18
42350/42584
88.9
148.43
28.575
28.971
21.433
3
3
138
215
28.9
1.96
42350/42587
88.9
149.23
31.75
28.971
24.608
3
3.3
138
215
34.8
1.97
42368/42584
93.662
148.43
28.575
28.971
21.433
3
3
138
215
31.6
1.8
42368/42587
93.262
149.23
31.75
28.971
24.608
3
3.3
138
215
34.8
2.034
42375/42584
95.25
148.43
28.575
28.971
21.433
3
3
138
215
31.6
1.75
42375/42587
95.25
149.23
31.75
28.971
24.608
3
3.3
138
215
31.6
1.804
42381/42584
96.838
148.43
28.575
28.971
21.433
3.5
3
138
215
31.6
1.69
42381/42587
96.838
149.23
31.75
28.971
24.608
3.5
3.3
138
215
31.8
1.746
46700 SERIES

46790/46720
165.1
225.43
41.275
39.688
33.338
3.5
3.3
254
555
43.9
4.69
47600 SERIES

47678/47620
76.2
133.35
33.338
33.338
26.195
6.4
3.3
153
235
29.2
1.92
47678/47623A
76.2
133.35
33.338
33.338
26.195
6.4
0.8
153
235
29.2
1.925
47679/47620
76.2
133.35
33.338
33.338
26.195
3.5
3.3
153
235
29.2
1.93
47679/47623A
76.2
136.53
44.45
33.338
44.45
3.5
0.8
153
235
29.2
2.13
47681/47620
80.962
133.35
33.338
33.338
26.195
3.5
3.3
153
235
29.2
1.776
47681/47623A
80.962
136.53
44.45
33.338
44.45
3.5
0.8
153
235
29.2
1.928
47686/47620
82.55
133.35
33.338
33.338
26.195
3.5
3.3
153
235
29.2
1.72
47686/47623A
82.55
136.53
44.45
33.338
44.45
3.5
0.8
153
235
29.2
1.875
47687/47620
82.55
133.35
33.338
33.338
26.195
6.8
3.3
153
235
29.2
1.71
47687/47623A
82.55
136.53
44.45
33.338
44.45
6.8
0.8
153
235
29.2
1.854
49500 SERIES

49585/49520
50.8
101.6
31.75
31.75
25.4
3.5
3.3
110
136
23.9
1.13
55000C SERIES

55175C/55437
44.45
111.13
30.162
26.909
20.638
3.5
3.3
104
136
37.3
1.45
55200C/55437
50.8
112.71
30.162
26.909
20.638
3.5
3.3
104
136
37.3
1.34

Bearing Number
Boundary Dimensions(mm)
R
R1
Cr
Cor
a
Mass
d
D
T
B
C
(KN)
(KN)
(mm)
(Kg)
1900 SERIES

1986/1922
25.4
57.15
19.845
15.875
15.875
1.3
1.5
44.8
50.2
25.6
0.24
1988/1922
28.575
57.15
19.845
15.875
15.875
3.5
1.5
44.8
50.2
25.6
0.17
2500 SERIES

2580/2523
31.75
69.85
23.812
25.357
19.05
0.8
1.3
69
81.5
16
0.454
2585/2523
33.338
69.85
23.812
25.357
19.05
3.5
3.3
69
81.5
16
0.435
2700 SERIES

2776/2720
38.1
76.2
23.812
25.654
19.05
4.3
3.3
73
90.5
15.6
0.495
2776/2729
38.1
76.2
23.812
25.654
19.05
4.3
0.8
73
90.5
15.6
0.511
2776/2735X
38.1
73.025
23.812
25.654
19.05
4.3
0.8
73
90.5
16
0.442
2777/2720
38.1
76.2
23.812
25.654
19.05
5.5
3.3
73
90.5
15.6
0.492
2777/2729
38.1
76.2
23.813
25.654
19.05
5.5
0.8
73
90.5
15.6
0.508
2777/2735X
38.1
73.025
23.812
25.654
19.05
5.5
0.8
73
90.5
15.6
0.463
2780/2720
36.487
76.2
23.812
25.654
19.05
1.5
3.3
73
90.5
15.6
0.518
2780/2729
36.487
76.2
23.812
25.654
19.05
1.5
0.8
73
90.5
16
0.52
2780/2735X
36.487
73.025
23.812
25.654
19.05
1.5
0.8
73
90.5
16
0.422
2788/2720
38.1
76.2
23.812
25.654
19.05
3.5
3.3
73
90.5
15.6
0.497
2788/2729
38.1
76.2
23.812
25.654
19.05
3.5
0.8
73
90.5
15.6
0.496
2788/2735X
38.1
73.025
23.812
25.654
19.05
3.5
0.8
73
90.5
15.6
0.438
2789/2720
39.688
76.2
23.812
25.654
19.05
3.5
3.3
73
90.5
15.6
0.477
2789/2729
39.688
76.2
23.812
25.654
19.05
3.5
0.8
73
90.5
16
0.478
2789/2735X
39.688
73.025
23.812
25.654
19.05
3.5
0.8
68
81
15.8
0.424
2790/2720
33.338
76.2
23.812
25.654
19.05
1.5
3.3
73
90.5
15.6
0.553
2790/2729
33.338
76.2
23.812
25.654
19.05
1.5
0.8
73
90.5
15.6
0.574
2790/2735X
33.338
73.025
23.812
25.654
19.05
1.5
0.8
73
90.5
15.6
0.446
2793/2720
34.925
76.2
23.812
25.654
19.05
0.8
3.3
73
90.5
15.6
0.536
2793/2729
34.925
76.2
23.812
25.654
19.05
0.8
0.8
73
90.5
15.6
0.541
2793/2735X
34.925
73.025
23.812
25.654
19.05
0.8
0.8
73
90.5
15.6
0.485
2794/2720
36.487
76.2
23.812
25.654
19.05
3.5
3.3
73
90.5
15.6
0.516
2794/2729
36.487
76.2
23.812
25.654
19.05
3.5
0.8
73
90.5
16
0.517
2794/2735X
36.487
73.025
23.812
25.654
19.05
3.5
0.8
73
90.5
16
0.462
2796/2720
34.925
76.2
23.812
25.654
19.05
3.5
3.3
73
90.5
15.6
0.533
2796/2729
34.925
76.2
23.812
25.654
19.05
3.5
0.8
73
90.5
16
0.535
2796/2735X
34.925
73.025
23.812
25.654
19.05
3.5
0.8
73
90.5
16
0.465
2900 SERIES

2984/2924
46.038
85
25.4
25.608
20.638
3.5
1.3
79
104
18.9
0.615
3300 SERIES

3379/3320
34.925
80.167
29.37
30.391
23.812
3.5
3.3
95
112
18.7
0.732
3379/3325
34.925
80
29.37
30.391
23.812
3.5
3.3
95
112
18.7
0.762
3384/3320
41.275
80.167
29.37
30.391
23.812
0.8
3.3
95
112
18.7
0.644
3384/3325
41.275
80
29.37
30.391
23.812
0.8
3.3
95
112
18.7
0.623
3386/3320
39.688
80.167
29.37
30.391
23.812
0.8
3.3
95
112
18.7
0.668
3386/3325
39.688
80
29.37
30.391
23.812
0.8
3.3
95
112
18.7
0.648
3500 SERIES

3578/3520
44.45
84.138
30.162
30.886
23.812
3.5
3.3
94
117
20.4
0.699
3578/3525
44.45
87.312
30.162
30.886
23.812
3.5
3.3
94
117
20.4
0.779
3578A/3520
44.45
84.138
30.162
30.886
23.812
5.5
3.3
94
117
20.4
0.679
3578A/3525
44.45
87.312
30.162
30.886
23.812
5.5
3.3
94
117
20.4
0.759
3580/3520
38.1
84.138
30.162
30.886
23.812
1.5
3.3
94
117
20.2
0.799
3580/3525
38.1
87.312
30.162
30.886
23.812
1.5
3.3
94
117
20.4
0.881
3585/3520
41.275
84.138
30.162
30.886
23.812
1.5
3.3
94
117
20.2
0.751
3585/3525
41.275
87.312
30.162
30.886
23.812
1.5
3.3
94
117
20.2
0.831
3586/3520
45.237
84.138
30.162
30.886
23.812
3.5
3.3
94
117
20.2
0.683
3586/3525
45.237
87.312
30.162
30.886
23.812
3.5
3.3
94
117
20.4
0.765
3700 SERIES

3767/3720
52.388
93.264
30.162
30.302
23.812
2.3
3.3
102
134
22.1
0.819
3767/3730
52.388
93.264
30.162
30.302
23.812
2.3
0.8
102
134
21.9
0.82
3775/3720
50.8
93.264
30.162
30.302
23.812
0.8
3.3
102
134
22.1
0.852
3775/3730
50.8
93.264
30.162
30.302
23.812
0.8
0.8
102
134
22.1
0.872
3776/3720
44.983
93.264
30.162
30.162
23.812
3.5
3.3
102
134
22.1
0.952
3776/3730
44.983
93.264
30.163
30.302
23.812
3.5
3.3
102
134
22.1
0.952
3778/3720
47.625
93.264
30.162
30.302
23.812
6.4
3.3
102
134
22.1
0.898
3778/3730
47.625
93.264
30.162
30.302
23.812
6.4
0.8
102
134
22.1
0.918
3779/3720
47.625
93.264
30.162
30.302
23.812
3.5
3.3
102
134
22.1
0.906
3779/3730
47.625
93.264
30.163
30.302
23.812
3.5
0.8
102
134
22.1
0.916
3778/03720
50.8
93.264
30.162
30.302
23.812
3.5
3.3
102
134
22.1
0.848
3780/3730
50.8
93.264
30.162
30.302
23.812
3.5
0.8
102
134
22.1
0.854
3781/3720
49.212
93.264
30.162
30.302
23.812
3.5
3.3
102
134
22.1
0.877
3781/3730
49.212
93.264
30.162
30.302
23.812
3.5
0.8
102
134
21.8
0.899
3782/3720
44.45
93.264
30.162
30.302
23.812
3.5
3.3
102
134
22.1
0.961
3782/3730
44.45
93.264
30.162
30.302
23.812
3.5
0.8
102
134
21.9
0.962
3783/3720
44.45
93.264
30.162
30.302
23.812
6.4
3.3
102
134
21.9
0.932
3783/3730
44.45
93.264
30.163
30.302
23.812
6.4
0.8
102
134
21.9
0.923
3784/3720
50.8
93.264
30.162
30.302
23.812
6.4
3.3
102
134
22.1
0.839
3784/3730
50.8
93.264
30.162
30.302
23.812
6.4
0.8
102
134
22.1
0.859
3795/3720
50.8
93.264
30.162
30.302
23.812
3.5
3.3
102
134
22.1
0.851
3795/3730
50.8
93.264
30.163
30.302
23.812
3.5
0.8
102
134
22.1
0.873
3900 SERIES

3979/3920
57.15
112.71
30.162
30.048
23.812
3.5
3.3
119
174
25.6
1.4
3979/3925
57.15
112.71
36.513
36.398
24.605
3.5
3.3
119
174
25.6
1.53
3982/3920
63.5
112.71
30.162
30.048
23.812
3.5
3.3
119
174
25.7
1.26
3982/3925
63.5
112.71
30.162
30.048
23.812
3.5
0.8
118
172
25.7
1.25
3984/3920
66.675
112.71
30.162
30.048
23.812
3.5
3.3
119
174
25.9
1.18
3984/3925
66.675
112.71
30.162
30.048
23.812
3.5
0.8
119
174
25.9
1.19

Bearing Number
Boundary Dimensions(mm)
R
R1
Cr
Cor
a
Mass
d
D
T
B
C
(KN)
(KN)
(mm)
(Kg)
360 SERIES

366/362
50
90
20
22.225
15.875
2.3
2
76.5
90.5
16.1
0.543
366/362A
50
88.9
20.638
22.225
16.513
2.3
1.3
76.5
90.5
16.1
0.529
366/363
50
90
20
22.225
20
2.3
0.8
76.5
90.5
16.1
0.544
368/362
50.8
90
20
22.225
15.875
1.5
2
76.5
90.5
16.1
0.545
368/362A
50.8
88.9
20.638
22.225
16.513
1.5
1.3
76.5
90.5
16.1
0.519
368/363
50.8
90
20
22.225
20
1.5
0.8
76.5
90.5
16.1
0.576
368A/362
50.8
90
20
22.225
15.875
3.5
2
76.5
90.5
16.1
0.525
368A/362A
50.8
88.9
20.638
22.225
16.513
3.5
1.3
76.5
90.5
16.1
0.516
368A/363
50.8
90
20
22.225
20
3.5
0.8
76.5
90.5
16.1
0.556
368S/362
51.592
90
20
22.225
15.875
2
2
76.5
90.5
16
0.511
368S/362A
51.592
88.9
20.638
22.225
16.513
2
1.3
76.5
90.5
16.1
0.507
369A/362
47.625
90
20
22.225
15.875
3.5
2
76.5
90.5
16.1
0.578
369A/362A
47.625
88.9
20.638
22.225
16.513
3.5
1.3
76.5
90.5
16.1
0.559
369A/363
47.625
90
20
22.225
20
3.5
0.8
76.5
90.5
16.1
0.576
369S/362
47.625
90
20
22.225
15.875
2.3
2
76.5
90.5
16.1
0.593
369S/362A
47.625
88.9
20.638
22.225
16.513
2.3
1.3
76.5
90.5
16.1
0.561
369S/363
47.625
90
20
22.225
20
2.3
0.8
76.5
90.5
16
0.596
370 SERIES

370A/362
50.8
90
20
22.225
15.875
5
2
76.5
90.5
16
0.515
370A/362A
50.8
88.9
20.638
22.225
16.513
5
1.3
76.5
90.5
16.1
0.511
370A/363
50.8
90
20
22.225
20
5
0.8
76.5
90.5
16.1
0.576
380 SERIES

385X/382A
55
96.838
21
21.946
15.875
3.5
0.8
78
96.5
17.4
0.614
385X/382S
55
93.838
25.4
21.946
20.274
3.5
2.3
78
96.5
22.3
0.645
385X/383A
55
100
21.001
21.946
17.826
3.5
2
78
96.5
17.9
0.644
386A/382
47.625
98.425
21.001
21.946
17.826
0.8
0.8
78
96.5
17.9
0.775
386A/382A
47.625
96.838
21
21.946
15.875
0.8
0.8
78
96.5
17.4
0.72
386A/382S
47.625
96.838
25.4
21.946
20.274
0.8
2.3
78
96.5
22.3
0.764
386A/383A
47.625
100
21.001
21.946
17.826
0.8
2
78
96.5
17.9
0.766
387/382
57.15
98.425
21
21.946
17.826
2.4
0.8
80.4
101
7.4
0.764
387/382A
57.15
96.838
21
21.946
15.875
2.3
0.8
78
96.5
17.4
0.583
387/382S
57.15
96.838
25.4
21.946
20.274
2.3
2.3
78
96.5
22.3
0.649
387/383A
57.15
100
21
21.946
17.826
2.3
2
78
96.5
17.9
0.66
387A/382
57.15
98.425
21
21.946
17.826
3.5
0.8
78
96.5
17.4
0.628
387A/382A
57.15
96.838
21
21.946
15.875
3.5
0.8
78
6.5
17.4
0.581
387A/382S
57.15
96.838
25.4
21.946
20.274
3.5
2.3
78
96.5
22.3
0.65
387A/383A
57.15
100
21
21.946
17.826
3.5
2
78
96.5
17.4
0.66
387AS/382
57.15
98.425
21
21.946
17.826
5
0.8
8
96.5
17.9
0.621
387AS/382A
57.15
96.838
21
21.946
15.875
5
0.8
78
96.5
17.4
0.576
387AS/382S
57.15
96.838
25.4
21.946
20.274
5
2.3
78
96.5
22.3
0.633
387AS/383A
57.15
100
21
21.946
17.826
5
2
78
96.5
17.9
0.653
387S/382
57.15
98.425
21.001
21.946
17.826
0.8
0.8
78
96.5
17.9
0.642
387A/382A
57.15
96.838
21
21.946
15.875
0.8
0.8
78
96.5
17.4
0.585
387S/382S
57.15
96.838
25.4
21.946
20.274
0.8
2.3
78
96.5
22.3
0.651
387S/383A
57.15
100
21.001
21.946
17.826
0.8
2
78
96.5
17.9
0.647
388A/382
57.531
98.425
21
21.946
17.826
3.5
0.8
78
96.5
17.9
0.62
388A/382A
57.531
96.838
21
21.946
15.875
3.5
0.8
78
6.5
17.4
0.575
388A/382S
57.531
96.838
25.4
21.946
20.274
3.5
2.3
78
96.5
22.3
0.641
388A/383A
57.531
100
21.946
21.946
17.826
3.5
2
78
96.5
17.9
0.652
389A/382
53.975
98.425
21
21.946
17.826
0.8
0.8
74.5
91.5
18
0.678
389A/382A
53.975
96.838
21
21.946
15.875
0.8
0.8
74.5
91.5
17.9
0.63
389A/382S
53.975
96.838
25.4
21.946
20.274
0.8
2.3
74.5
91.5
22.3
0.699
389A/383A
53.975
100
21
21.946
17.826
0.8
2
74.5
96.5
17.9
0.71
390 SERIES

390/393
57.15
110
27
21.996
27
2.3
0.8
89.5
120
29.3
1.019
390/394A
57.15
110
22
21.996
18.824
2.3
1.3
89.5
120
21.3
0.954
390/394AS
57.15
110
21.999
21.996
18.824
2.3
3.3
89.5
120
21.3
0.934
395/393
63.5
110
27
21.996
27
3.5
0.8
89.5
120
21.3
0.912
395/394A
63.5
110
22
21.996
18.824
3.5
1.3
89.5
120
21.3
0.847
395/394AS
63.5
110
21.999
21.996
18.824
3.5
3.3
89.5
120
21.3
0.825
395A/393
66.675
110
27
21.996
27
0.8
0.8
89.5
120
21.3
0.862
395A/394A
66.675
110
27
21.996
18.824
0.8
1.3
89.5
120
21.3
0.796
395A/394AS
66.675
110
21.999
21.996
18.824
0.8
3.3
89.5
120
21.3
0.778
395CS/394CS
66.675
113.49
23.447
23.444
18.824
3.5
1.3
89.5
120
21.3
0.904
395S/393
66.675
110
27
21.996
27
3.5
0.8
89.5
120
21.3
0.861
395S/394A
66.675
110
22
21.996
18.824
3.5
1.3
89.5
120
21.3
0.791
395S/394AS
66.675
110
21.999
21.996
18.824
3.5
3.3
89.5
120
21.3
0.773
396/393
50
110
27
21.996
27
0.8
0.8
89.5
120
21.3
1.125
396/394A
50
110
22
21.996
18.824
0.8
1.3
89.5
120
21.3
1.06
396/394AS
50
110
21.999
21.996
18.824
0.8
3.3
89.5
120
21.3
1.045
399A/393
68.262
110
27
21.996
27
2.3
0.8
89.5
120
21.3
0.829
399A/394A
68.262
110
22
21.996
18.824
2.3
1.3
89.5
120
21.3
0.764
399A/394AS
68.262
110
21.999
21.996
18.824
2.3
3.3
89.5
120
21.3
0.745
399AS/393
68.262
110
27
21.996
27
5
0.8
89.5
120
21.3
0.821
399AS/394A
68.262
110
22
21.996
18.824
5
1.3
89.5
120
21.3
0.756
399AS/394AS
68.262
110
21.999
21.996
18.824
5
3.3
89.5
120
21.3
0.741
400 SERIES

418/412
38.1
82.55
34.925
29.083
30.162
3.5
3.3
95.5
107
16.9
0.832
418/414
38.1
88.5
26.988
29.083
22.225
3.5
1.5
95.5
107
16.9
0.84
420/412
40
82.55
34.925
29.083
30.162
3.5
3.3
95.5
107
16.9
0.806
420/414
40
88.5
26.988
29.083
22.225
3.5
1.5
95.5
107
16.9
0.813
490 SERIES

495/492A
82.55
133.35
30.162
29.769
22.275
3.5
3.3
129
189
29.8
1.525
495/493
82.55
136.53
30.162
29.769
22.275
3.5
3.3
129
189
29.8
1.64
495A/492A
76.2
133.35
30.162
29.769
22.275
3.5
3.3
129
189
19.5
1.71
495A/493
76.2
136.53
30.162
29.769
22.275
3.5
3.3
129
189
29.8
1.83
495AX/492A
76.2
133.35
30.162
29.769
22.275
6.4
3.3
129
175
29.4
1.702
495AX/493
76.2
136.53
30.162
29.769
22.275
6.4
3.3
118
189
29.8
1.82
496/492A
80.962
133.35
30.162
29.769
26.195
3.5
3.3
129
175
29
1.735
496/493
80.962
136.53
30.162
29.769
22.275
3.5
3.3
118
189
29.8
1.69
497/492A
85.725
133.35
30.162
29.769
22.275
3.5
3.3
129
189
29.8
1.43
497/493
85.725
136.53
30.162
29.769
22.275
3.5
3.3
129
189
29.8
1.55
498/492A
84.138
133.35
30.162
29.769
22.275
3.6
3.2
133
198
29.8
1.48
498/493
84.138
136.53
30.162
29.769
22.275
3.5
3.3
129
189
29.8
1.6
590 SERIES

593/592
88.9
152.4
39.688
36.322
33.338
3.5
3.3
180
279
37.1
2.83
593/592A
88.9
152.4
39.688
36.322
30.162
3.5
3.3
180
279
37.1
2.78
593/592XS
88.9
147.64
35.717
36.322
26.192
3.5
3.3
180
279
37.1
2.73
593A/592
88.9
152.4
39.688
36.322
33.338
6.4
3.3
180
279
37.1
2.81
593A/592A
88.9
152.4
39.688
36.322
30.162
6.4
3.3
180
279
37.1
2.76
593A/592XS
88.9
147.64
35.717
36.322
26.192
6.4
3.3
180
279
37.1
2.7
594/592
95.25
152.4
39.688
36.322
33.338
3.5
3.3
180
279
37.1
2.56
594/592A
95.25
152.4
39.688
36.322
30.162
3.5
3.3
180
279
37.1
2.51
594/592XS
95.25
147.64
35.717
36.322
26.192
3.5
3.3
180
279
37.1
2.04
594A/592
95.25
152.4
39.688
36.322
33.338
5
3.3
180
279
37.1
2.54
594A/592A
95.25
152.4
39.688
36.322
30.162
3.5
3.3
180
279
37.1
2.51
594A/592XS
95.25
147.64
35.717
36.322
26.192
5
0.8
180
279
33.4
2.09
595/592
82.55
152.4
39.688
36.322
33.338
3.5
3.3
180
279
37.1
3.08
595/592A
82.55
152.4
39.688
36.322
30.162
3.5
3.3
180
279
37.1
3.02
595/592XS
82.55
147.64
35.717
36.322
26.192
3.5
3.3
180
279
37.1
2.98
596/592
85.725
152.4
39.688
36.322
33.338
3.5
3.3
180
279
37.1
3.14
596/592A
85.725
152.4
39.688
36.322
30.162
3.5
3.3
180
279
37.1
2.9
596/592XS
85.725
147.64
35.717
36.322
26.192
3.5
3.3
180
279
37.1
2.85
598/592
92.075
152.4
39.688
36.322
33.338
3.5
3.3
180
279
37.1
2.94
598/592A
92.075
152.4
39.688
36.322
30.162
3.5
3.3
180
279
37.1
2.65
598/592XS
92.075
147.64
35.717
36.322
26.192
3.5
3.3
180
279
37.1
2.68
598A/292
92.075
152.4
39.688
36.322
33.338
6.4
3.3
180
279
37.1
2.75
598A/592A
92.075
152.4
39.688
36.322
30.162
6.4
3.3
180
279
37.1
2.63
598A/592XS
92.075
147.64
35.717
36.322
26.912
6.4
3.3
180
279
37.1
2.66

Related Products :

Portugues

Russian

Links:

Facebook | Twitter | Linkedin | Google+ |
