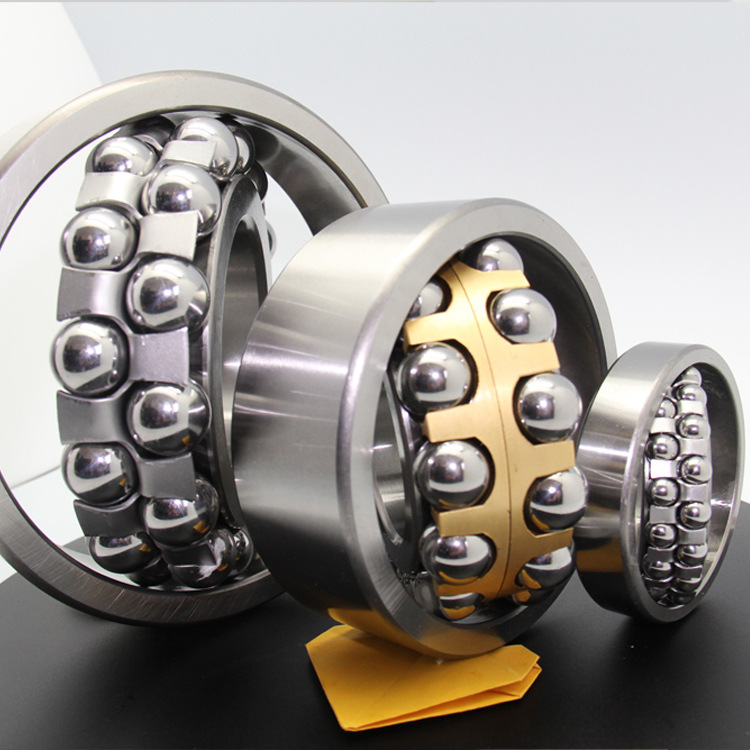

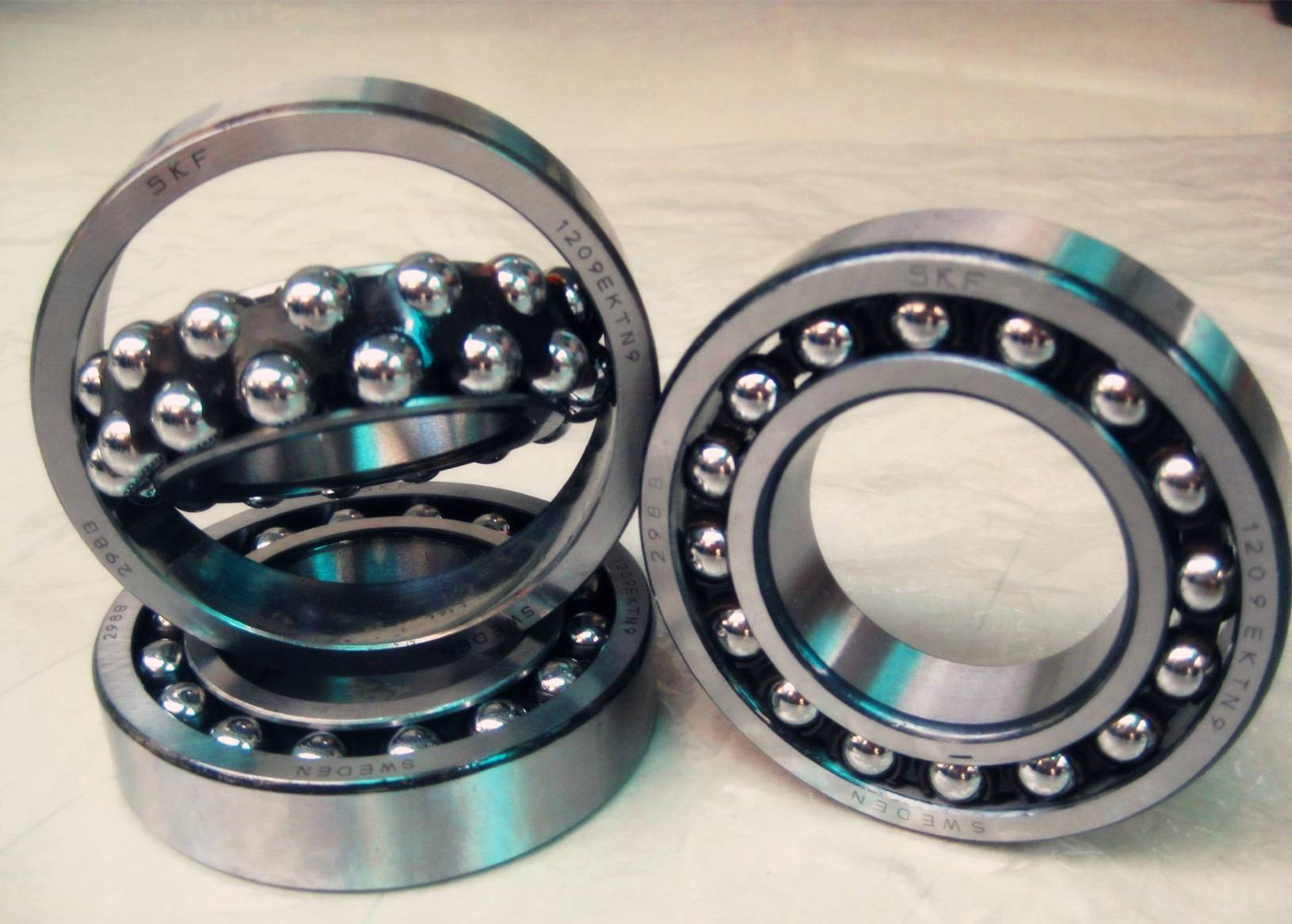

Self-Aligning Ball Bearings 2300 series Bearing Numbers Boundary Dimension Basic Load Ratings(KN) Limited Speed(rpm) Mass d D B rmin Cr Cor Grease Oil Approx 2300 10 35 17 0.60 0.077 9.09 2.06 16000 19000 2301 12 37 17 1.00 0.082 10.62 2.60 14000 16000 2302 15 42 17 1.00 0.108 10.80 2.78 12000 14000 2303 17 47 19 1.00 0.150 12.96 3.41 10000 13000 2304 20 52 21 1.10 0.193 16.29 4.51 10000 11000 2304 K 20 52 21 1.10 0.193 16.29 4.51 10000 11000 2305 25 62 24 1.10 0.319 21.96 6.34 8100 10000 2305 K 25 62 24 1.10 0.319 21.96 6.34 8100 10000 2306 30 72 27 1.10 0.480 28.35 8.40 6800 8100 2306 K 30 72 27 1.10 0.480 28.35 8.40 6800 8100 2307 35 80 31 1.50 0.642 35.55 10.85 6000 7000 2307 K 35 80 31 1.50 0.642 35.55 10.85 6000 7000 2308 40 90 33 1.50 0.889 40.50 12.96 5300 6300 2308 K 40 90 33 1.50 0.889 40.50 12.96 5300 6300 2309 45 100 36 1.50 1.200 48.60 16.03 4800 5600 2309 K 45 100 36 1.50 1.200 48.60 16.03 4800 5600 2310 50 110 40 2.00 1.580 58.05 19.39 4400 5100 2310 K 50 110 40 2.00 1.580 58.05 19.39 4400 5100 2311 55 120 43 2.00 2.030 67.95 23.04 4000 4700 2311 K 55 120 43 2.00 2.030 67.95 23.04 4000 4700 2312 60 130 46 2.10 2.570 78.30 27.07 3600 4300 2312 K 60 130 46 2.10 2.570 78.30 27.07 3600 4300 2313 65 140 18 2.10 3.200 86.40 31.20 3400 4000 2313 K 65 140 18 2.10 3.200 86.40 31.20 3400 4000 2314 70 150 51 2.10 3.900 98.10 36.00 3100 3700 2314 K 70 150 51 2.10 3.900 98.10 36.00 3100 3700 2315 75 160 55 2.10 4.770 110.70 41.28 2900 3400 2315 K 75 160 55 2.10 4.770 110.70 41.28 2900 3400 2316 80 170 58 2.10 5.540 115.20 43.20 2800 3200 2316 K 80 170 58 2.10 5.540 115.20 43.20 2800 3200 2317 85 180 60 3.00 6.560 126.00 49.44 2600 3000 2317 K 85 180 60 3.00 6.560 126.00 49.44 2600 3000 2318 90 190 64 3.00 7.76 136.80 55.20 2500 2900 2318 K 90 190 64 3.00 7.76 136.80 55.20 2500 2900 2320 100 215 73 3.00 11.600 187.00 79.00 2300 2700 2320 K 100 215 73 3.00 11.600 187.00 79.00 2300 2700 2321 105 225 77 3.00 13.200 205.00 87.00 2200 2600 2322 110 240 80 3.00 15.800 217.000 94.50 2100 2400 2322 K 110 240 80 3.00 15.800 217.000 94.50 2100 2400
(mm)
(KG)
