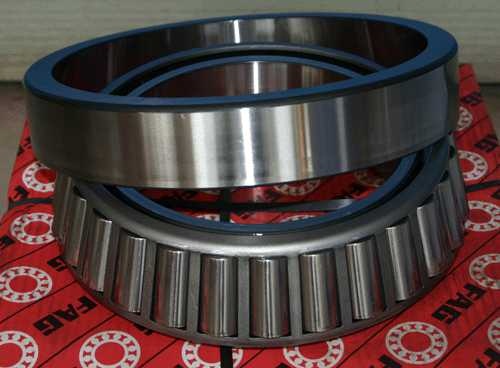

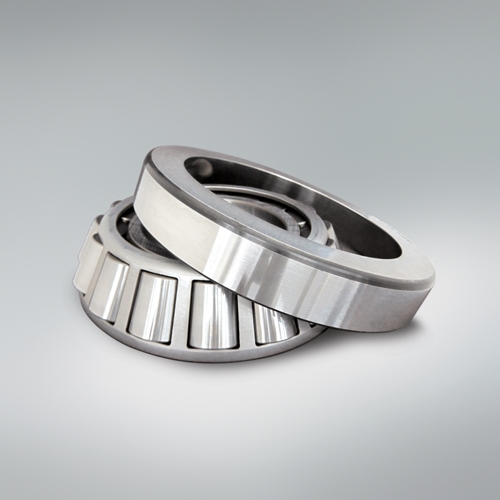

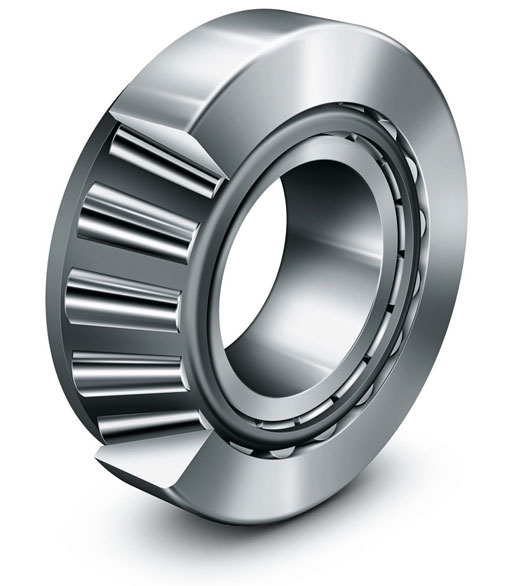

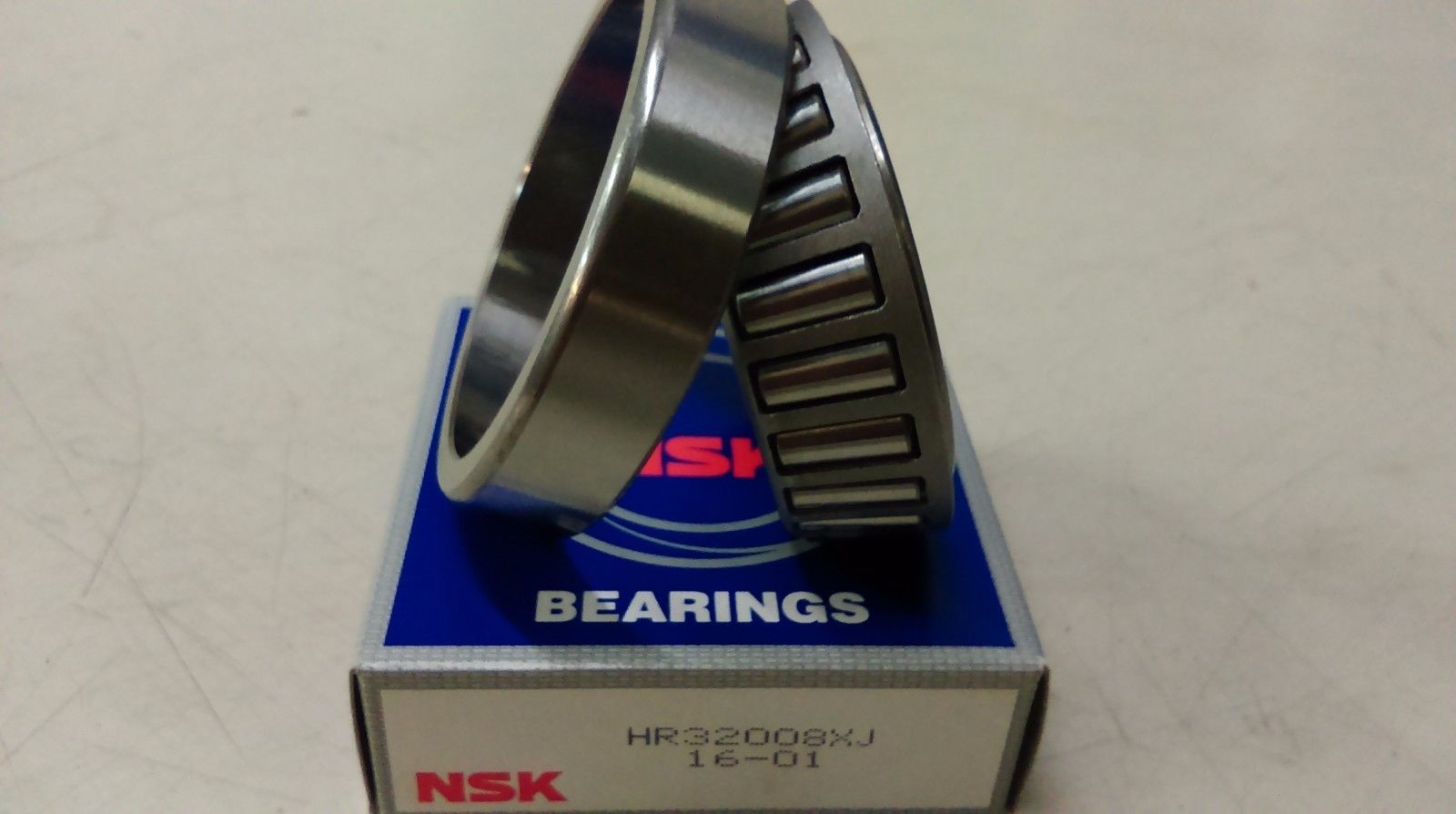

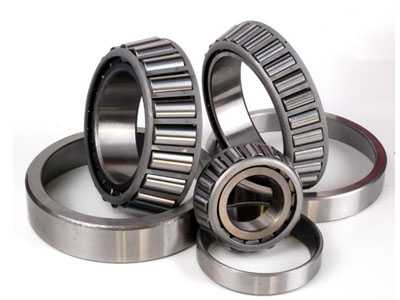

Single row Tapered Roller Bearings

Single row tapered roller bearings

Bearing Number		Boundary Dimensions(mm)					R	R1	Cr	Cor	a	Mass
Bearing Number		d	D	T	B	C	R	R1	(KN)	(KN)	(mm)	(Kg)
30204	7204E	20	47	15.25	14	12	1	1	28.2	30.6	11.2	0.126
30205	7205E	25	52	16.25	15	13	1	1	32.2	37	12.5	0.154
30206	7206E	30	62	17.25	16	14	1	1	43.3	50.5	13.8	0.231
30207	7207E	35	72	18.25	17	15	1.5	1.5	54.2	63.5	15.3	0.331
30208	7208E	40	80	19.75	18	16	1.5	1.5	63	74	16.9	0.422
30209	7209E	45	85	20.75	19	16	1.5	1.5	67.9	83.6	18.6	0.474
30210	7210E	50	90	21.75	20	17	1.5	1.5	73.3	92.1	20	0.529
30211	7211E	55	100	22.75	21	18	2	1.5	90.8	113.7	21	0.713
30212	7212E	60	110	23.75	22	19	2	1.5	103.3	130	22.3	0.904
30213	7213E	65	120	24.75	23	20	2	1.5	120.6	152.6	23.8	1.13
30214	7214E	70	125	26.25	24	21	2	1.5	132.3	173.6	25.8	1.26
30215	7215E	75	130	27.25	25	22	2	1.5	138.4	185.4	27.4	1.36
30216	7216E	80	140	28.25	26	22	2.5	2	160.4	212.8	28.1	1.67
30217	7217E	85	150	30.5	28	24	2.5	2	177.6	236.8	30.3	20.6
30218	7218E	90	160	32.5	30	26	2.5	2	200.1	269.6	32.3	2.54
30219	7219E	95	170	34.5	32	27	3	2.5	226.6	309	34.2	3.04
30220	7220E	100	180	37	34	29	3	2.5	253.9	350.3	36.4	3.72
30221	7221E	105	190	39	36	30	3	2.5	285.3	398.6	38.5	4.38
30222	7222E	110	200	41	38	32	3	2.5	314.9	443.6	40.4	5.21
30224	7224E	120	215	43.5	40	34	3	2.5	337.4	483.3	44.1	6.2
30226	7226E	130	230	43.75	40	34	4	3	366	521.4	46.1	6.94
30228	7228E	140	250	45.75	42	36	4	3	409.2	584.7	49	8.73
30304	7304E	20	52	16.25	15	13	1.5	1.5	33.1	33.2	11.1	0.165
30305	7305E	25	62	18.25	17	15	1.5	1.5	46.9	48.1	13	0.263
30306	7306E	30	72	20.75	19	16	1.5	1.5	59	63.1	15.3	0.387
30307	7307E	35	80	22.75	21	18	2	1.5	75.3	82.6	16.8	0.515
30308	7308E	40	90	25.25	23	20	2	1.5	90.9	107.6	19.5	0.747
30309	7309E	45	100	27.25	25	22	2	1.5	108.9	129.8	21.3	0.984
30310	7310E	50	110	29.25	27	23	2.5	2	130.1	157.1	23	1.28
30311	7311E	55	120	31.5	29	25	2.5	2	153.3	187.6	24.9	1.63
30312	7312E	60	130	33.5	31	26	3	2.5	171.4	210	26.6	1.99
30313	7316E	65	140	36	33	28	3	2.5	195.9	241.7	27.7	2.44
30314	7314E	70	150	38	35	30	3	2.5	219	271.7	30.7	2.98
30315	7315E	75	160	40	37	31	3	2.5	252.8	318.8	32	3.57
30316	7316E	80	170	42.5	39	33	3	2.5	278.8	352.5	34.4	4.27
30317	7317E	85	180	44.5	41	34	4	3	304.9	388.2	35.9	4.95
30318	7318E	90	190	46.5	43	36	4	3	342.1	440.9	37.5	5.8
30319	7319E	95	200	49.5	45	38	4	3	369	477.7	40.1	6.8
30320	7320E	100	215	51.5	47	39	4	3	406.4	526.4	42.2	8.22
30321	7321E	105	225	53.5	49	41	4	3	433.1	561.9	43.6	9.38

Bearing Number		Boundary Dimensions(mm)					R	R1	Cr	Cor	a	Mass
Bearing Number		d	D	T	B	C	R	R1	(KN)	(KN)	(mm)	(Kg)
31306	27306E	30	72	20.75	19	14	1.5	1.5	52.5	60.4	23.1	0.392
31307	27307E	35	80	22.75	21	15	2	1.5	65.7	76.8	25.8	0.514
31308	27308E	40	90	25.25	23	17	2	1.5	81.4	96.4	29	0.727
31309	27309E	45	100	27.25	25	18	2	1.5	95.6	113.8	31.7	0.944
31310	27310E	50	110	29.25	27	19	2.5	2	108	128.5	34.8	1.21
31311	27311E	55	120	31.5	29	21	2.5	2	129.9	158	37.5	1.56
31312	27312E	60	130	33.5	31	22	3	2.5	145.4	176.8	40.4	1.9
31313	27313E	65	140	36	33	23	3	2.5	165.7	202.6	44.2	2.37
31314	27314E	70	150	38	35	25	3	2.5	186.9	231	46.8	2.86
31315	27315E	75	160	40	37	26	3	2.5	208.5	258.9	49.7	3.38

Bearing Number		Boundary Dimensions(mm)					R	R1	Cr	Cor	a	Mass
Bearing Number		d	D	T	B	C	R	R1	(KN)	(KN)	(mm)	(Kg)
32006X	2007106	30	55	17	17	13	1	1	35.7	46.8	13.3	0.17
32007X	2007107	35	62	18	18	14	1	1	43.2	59.2	15.1	0.224
32008X	2007108	40	68	19	19	14.5	1	1	51.9	71.1	14.9	0.267
32009X	2007109	45	75	20	20	15.5	1	1	58.4	81.4	16.5	0.337
32010X	2007110	50	80	20	20	15.5	1	1	61.1	89	17.8	0.366
32011X	2007111	55	90	23	23	17.5	1.5	1.5	80.2	117.2	19.8	0.551
32013X	2007113	65	100	23	23	17.5	1.5	1.5	82.8	127.3	22.4	0.62
32014X	2007114	70	110	25	25	19	1.5	1.5	104.3	160.1	23.8	0.839
32015X	2007115	75	115	25	25	19	1.5	1.5	103.1	160.2	25.2	0.875
32016X	2007116	80	125	29	29	22	1.5	1.5	141	220	26.8	1.27
32017X	2007117	85	130	29	29	22	1.5	1.5	139.8	220.3	28.1	1.32
32018X	2007118	90	140	32	32	24	2	1.5	171.3	271	30	1.72
32019X	2007119	95	145	32	32	24	2	1.5	174.6	281.3	31.4	1.79
32020X	2007120	100	150	32	32	24	20	1.5	173.1	281.7	32.8	1.85
32021X	2007121	105	160	35	35	26	2.5	2	205.4	335.8	34.6	2.4
32022X	2007122	110	170	38	38	29	2.5	2	245.7	403.4	36.6	3.02
32024X	2007124	120	180	38	38	29	2.5	2	242.1	404.4	39.3	3.18
32026X	2007126	130	200	45	45	34	2.5	2	333.7	567.1	43.3	4.94
32028X	2007128	140	210	45	45	34	2.5	2	329.8	567.8	46	5.15
32030X	2007130	150	225	48	48	36	3	2.5	367.6	635.8	49.2	6.25
32032X	2007132	160	240	51	51	38	3	2.5	419.6	734.5	52.6	7.66

Bearing Number
Boundary Dimensions(mm)
R
R1
Cr
Cor
a
Mass
d
D
T
B
C
(KN)
(KN)
(mm)
(Kg)
32205
7505E
25
52
19.25
18
15
1
1
36.7
46.3
22.3
0.174
32206
7506E
30
62
21.25
20
17
1
1
51.8
63.7
15.6
0.287
32207
7507E
35
72
24.25
23
19
1.5
1.5
70.6
89.5
17.9
0.445
32208
7508E
40
80
24.75
23
19
1.5
1.5
77.9
97.2
18.9
0.532
32209
7509E
45
85
24.75
23
19
1.5
1.5
80.7
104
20.1
0.573
32210
7510E
50
90
24.75
23
19
1.5
1.5
82.8
107.6
21
0.626
32211
7511E
55
100
26.75
25
21
2
1.5
108
142.3
22.8
0.853
32212
7512E
60
110
29.75
28
24
2
1.5
132.8
179.6
25
1.17
32213
7513E
65
120
32.75
31
27
2
1.5
160.9
221.7
27.3
1.55
32214
7514E
70
125
33.25
31
27
2
1.5
168.5
237.1
28.8
1.64
32215
7515E
75
130
33.25
31
27
2
1.5
170.3
242.1
30
1.74
32216
7516E
80
140
35.25
33
28
2.5
2
198.1
279
31.4
2.13
32217
7517E
85
150
38.5
36
30
2.5
2
226.7
324
33.9
2.68
32218
7518E
90
160
42.5
40
34
2.5
2
269.8
395.5
36.8
3.44
32219
7519E
95
170
45.5
43
37
3
2.5
302.5
448.4
39.2
4.24
32220
7520E
100
180
49
46
39
3
2.5
341
512
41.9
5.1
32221
7521E
105
190
53
50
43
3
2.5
381
579.2
45
6.26
32222
7522E
110
200
56
53
46
3
2.5
431.7
666.3
47.3
7.43
32224
7524E
120
215
61.5
58
50
3
2.5
477.7
758.1
52.3
9.26
32226
7526E
130
230
67.75
64
54
4
3
551.7
888.7
56.6
11.4
32228
7528E
140
250
71.75
68
58
4
3
643.7
1049.3
60.7
14.4
32306
7606E
30
72
28.75
27
23
1.5
1.5
81.6
96.4
18.9
0.562
32307
7607E
35
80
32.75
31
25
2
1.5
99
118.3
20.4
0.763
32308
7608E
40
90
35.25
33
27
2
1.5
115.7
147.8
23.3
1.04
32309
7609E
45
100
38.25
36
30
2
1.5
145.3
189.4
25.6
1.4
32310
7610E
50
110
42.25
40
33
2.5
2
177.5
236.1
28.2
1.89
32311
7611E
55
120
45.5
43
35
2.5
2
203
271.4
30.4
2.37
32312
7612E
60
130
48.5
46
37
3
2.5
226.7
303
32
2.9
32313
7613E
65
140
51
48
39
3
2.5
259.6
349.8
34.3
3.51
32314
7614E
70
150
54
51
42
3
2.5
298.9
408.5
36.5
4.34
32315
7615E
75
160
58
55
45
3
2.5
347.4
483.1
39.4
5.37
32316
7616E
80
170
61.5
58
48
3
2.5
387.9
543.1
42.1
6.38

Bearing Number
Boundary Dimensions(mm)
R
R1
Cr
Cor
a
Mass
d
D
T
B
C
(KN)
(KN)
(mm)
(Kg)
33005
3007105
25
47
17
17
14
0.6
0.6
32.5
42.5
11.1
0.129
33006
3007106
30
55
20
20
16
1
1
43.7
58.8
12.8
0.201
33007
3007107
35
62
21
21
17
1
1
46.9
63.3
13.5
0.254
33008
3007108
40
68
22
22
18
1
1
60.2
79.6
14.1
0.306
33009
3007109
45
75
24
24
19
1
1
72.6
100.4
15.9
0.398
33010
3007110
50
80
24
24
19
1
1
76.8
110.9
17
0.433
33011
3007111
55
90
27
27
21
1.5
1.5
94.9
144.7
19
0.651
33012
3007112
60
95
27
27
21
1.5
1.5
96.7
151.1
19.8
0.691
33013
3007113
65
100
27
27
21
1.5
1.5
98.1
157.7
20.9
0.732
33014
3007114
70
110
31
31
25.5
1.5
1.5
134.4
220.4
22
1.07
33015
3007115
75
115
31
31
25.5
1.5
1.5
133.1
221.2
22.8
1.12
33016
3007116
80
125
36
36
29.5
1.5
1.5
181.9
304.3
25.2
1.63
33017
3007117
85
130
36
36
29.5
1.5
1.5
180.4
305.5
26.2
1.69
33018
3007118
90
140
39
39
32.5
2
1.5
232.6
388.6
27.6
2.2
33019
3007119
95
145
39
39
32.5
2
1.5
231
389.9
28.4
2.26
33020
3007120
100
150
39
39
32.5
2
1.5
229.5
391.2
29.1
2.33
33021
3007121
105
160
43
43
34
2.5
2
257.4
437.4
30.8
2.97
33022
3007122
110
170
47
47
37
2.5
2
288.7
502.7
33.2
3.74
33108
3007708
40
75
26
26
20.5
1.5
1.5
84.7
110.3
18
0.496
33109
3007709
45
80
26
26
20.5
1.5
1.5
87.1
117.2
19.14
0.535
33110
3007710
50
85
26
26
20
1.5
1.5
89.3
124.1
20.4
0.572
33111
3007711
55
95
30
30
23
1.5
1.5
114.5
164.8
21.9
0.843
33112
3007712
60
100
30
30
23
1.5
1.5
117.1
173.2
23.1
0.895
33113
3007713
65
110
34
34
26.5
1.5
1.5
142.8
220.4
26
1.3
33114
3007714
70
120
37
37
29
2
1.5
172.1
267
28.2
1.7
33115
3007715
75
125
37
37
29
2
1.5
176.1
279.6
29.4
1.78
33116
3007716
80
130
37
37
29
2
1.5
179.6
292.3
30.7
1.87
33117
3007717
85
140
41
41
32
2.5
2.5
215.7
354.2
33.14
2.43
33118
3007718
90
150
45
45
35
2.5
2.5
252.1
414.7
34.9
3.13
33119
3007719
95
160
49
49
38
2.5
2.5
298.9
498.2
37.3
3.94
33120
3007720
100
165
52
52
40
2.5
2.5
309.4
529.2
40.3
4.31
33121
3007721
105
175
56
56
44
2.5
2
351.8
607.8
42.9
5.29
33122
3007722
110
180
56
56
43
2.5
2.5
373.2
639.1
44
5.5
33124
3007724
120
200
62
62
48
2.5
2.5
448.2
779.1
47.6
7.68
33205
3007205
25
52
22
22
18
1
1
47.1
55.8
14
0.216
33206
3007206
30
62
25
25
19.5
1
1
63.8
75.4
15.74
0.342
33207
3007207
35
72
28
28
22
1.5
1.5
82.6
101.7
18.2
0.515
33208
3007208
40
80
32
32
25
1.5
1.5
105.8
135.5
20.8
0.715
33209
3007209
45
85
32
32
25
1.5
1.5
109.5
145.1
21.9
0.771
33210
3007210
50
90
32
32
24.5
1.5
1.5
112.9
154.6
23.2
0.825
33211
3007211
55
100
35
35
27
2
1.5
143.1
196.7
25.1
1.15
33212
3007212
60
110
38
38
29
2
1.5
165.8
231.4
27.5
1.51
33213
3007213
65
120
41
41
32
2
1.5
202.2
281.6
29.5
1.99
33214
3007214
70
125
41
41
32
2
1.5
208.6
298.3
30.7
2.1
33215
3007215
75
130
41
41
31
2
1.5
207.1
299.7
31.9
2.17
33216
3007216
80
140
46
46
35
2.5
2
245.7
361.8
35.1
2.83
33217
3007217
85
150
49
49
37
2.5
2
281.7
415.7
36.9
3.52
33218
3007218
90
160
55
55
42
2.5
2
330.6
499.7
40.8
4.55
33219
3007219
95
170
58
58
44
3
2.5
377.4
568.4
42.7
5.48
33220
3007220
100
180
63
63
48
3
2.5
436.5
666.2
45.5
6.71
33221
3007221
105
190
68
68
52
3
2.5
497.8
770.5
48.6
8.12

【 Go Back 】 | 【 Close this window 】
